A10VO Series Rexroth Pump A10vo18 A10vo28 A10vo45 A10vo71 A10vo100 A10vo140 A10vo
A10VO Series Rexroth Pump A10vo18 A10vo28 A10vo45 A10vo71 A10vo100 A10vo140 A10vo
A10VO Series Rexroth Pump A10vo18 A10vo28 A10vo45 A10vo71 A10vo100 A10vo140 A10vo
A10VO Series Rexroth Pump A10vo18 A10vo28 A10vo45 A10vo71 A10vo100 A10vo140 A10vo
Specifications
Warranty :
1 Year
Application :
Hydraulic System
Certification :
CE ISO 9001
Type :
Rexroth DG / DR / DFR / DFR1 / DRG / ED / DFLR
Pressure :
High Pressure
Condition :
100%new,OEM new & original
Theory :
Rotary Pump,hydraulic pumps
Model Number :
A10VO10 A10VO28 A10VO45 A10VO60 A10VO63 A10VO85
MOQ :
1PCS
Price :
NIGOTIATION
Delivery Time :
15 work days
Packaging Details :
standard box
Power :
Hydraulic
Feature :
High Efficiency,Long Life
Brand Name :
REXROTH
Fuel :
hydraulic,oil
Usage :
Oil,Hydraulic Piston Pump
Structure :
Piston Pump,Hydraulic Pumps
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
1000/month
Product name :
Hydraulic Pumps
Appliion :
Hydraulic System,hydraulic pumps,exvaor
Standard or nonstandard :
Standard
Material :
Cast Iron
Color :
Customer's Request,customize
Description

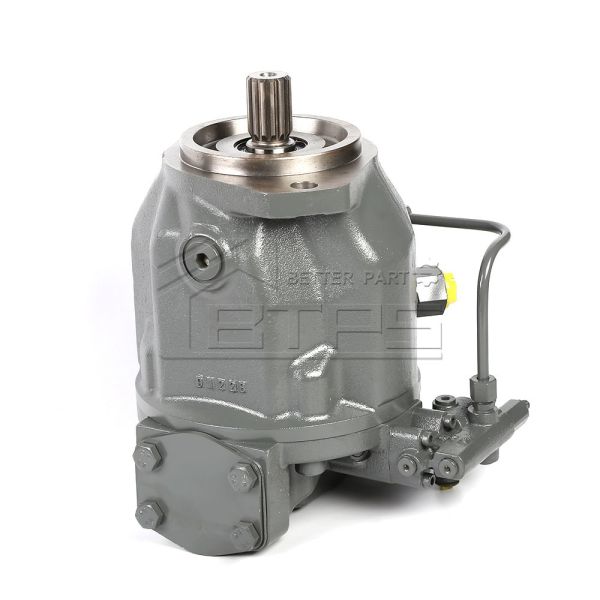

Axial piston variable pump A10VO series 31

All-purpose medium pressure pump
Size 18 … 140
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit

Features
Through drive for mounting of further pumps up to same nominal size
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Swashplate design
Parameter Value
Displacement Range 18, 28, 45, 71, 100, 140, 180 cc/rev
Maximum Continuous Pressure 280 bar
Maximum Peak Pressure 350 bar
Maximum Speed 2200-3000 rpm (depending on displacement)
Fluid Temperature Range -20°C to +80°C
Recommended Fluid ISO VG 46 hydraulic oil
Fluid Cleanliness ISO 18/15 or better
Rotation Direction Clockwise (standard), Counterclockwise (optional)
Mounting Flange SAE A, SAE B, SAE C
Shaft Type Splined shaft, Tapered shaft
10+ Years Experience – Specialized in hydraulic components for industrial and mobile applications
Large Inventory – Over 5000+ hydraulic pumps and parts in stock
Competitive Prices – Direct factory prices without middlemen
Professional Technical Support – Our team of hydraulic engineers can assist with product selection and troubleshooting
Customization Available – We can manufacture pumps according to your drawings or samples
Reliable After-sales Service – Fast response to all inquiries and issues
A10VO Series Rexroth Pump A10vo18 A10vo28 A10vo45 A10vo71 A10vo100 A10vo140 A10vo

Table of values

Size 18 28 45 71 88 100 140 45 71 100 140
Version Standard High speed
Displacement
geometric, per revolution		 Vg max cm³ 18 28 45 71 88 100 140 45 71 100 140
Nominal pressure pnom bar 280 280 280 280 280 280 280 280 280 280 280
Maximum pressure pmax bar 350 350 350 350 350 350 350 350 350 350 350
Maximum speed 1) at Vg max nnom rpm 3300 3000 2600 2200 2100 2000 1800 3000 2550 2300 2050
Flow at Vg max and nnom qV nom l/min 59 84 117 156 185 200 252 135 178 230 287
at Vg max and n = 1500 rpm qV 1500 l/min 27 42 68 107 132 150 210 68 107 150 210
Power at qV nom and pnom P kW 30 39 55 73 86 93 118 63 83 107 134
at qV 1500 and pnom P 1500 kW 12.6 20 32 50 62 70 98 32 50 70 98
Torque at Vg max and pnom M Nm 80 125 200 316 392 445 623 200 316 445 623
Weight (approx.) m kg 12.9 18 23.5 35.2 35.2 49.5 65.4 23.5 35.2 49.5 65.4

ABOUT US

BETTERPARTS is an enterprise specializing in research, development, manufacturing and after-sales hydraulic pump pressure brand products. Having been engaged in the injection molding machine/die-casting industry/hydraulic station/engineering machinery/hydraulic pump industry for many years, with rich industry experience, we have created a group of professional after-sales teams and won a good reputation in the hydraulic industry for the company.

The company has a team of talents with rich professional knowledge and practical experience, adhering to the principle of "customer first, high-quality service, and abiding by contracts". With high-quality products, good reputation, and high-quality service, the products are best-selling in nearly 30 provinces, cities, autonomous regions, as well as exported to countries such as Malaysia, India, Southeast Asia, Australia, etc. Sincerely cooperate with domestic and foreign merchants for win-win cooperation, common development, and create brilliance together!

A10VSO100DFR1/31R-PPA12N00,,
A10VSO100DFR1/31R-PPA12K01
A10VSO100DFR/31R-PPA12N00,,
A10VSO100DFLR/31R-PPA12N00,
A10VSO100DG/31R-PPA12N00,,
A10VSO100DRG/31R-PPA12N00,
A10VSO100DFE1/31R-PPA12N00,,
A10VSO100DFE1/31R-PPA12K02,
A10VSO100FHD/31R-PPA12N00,
