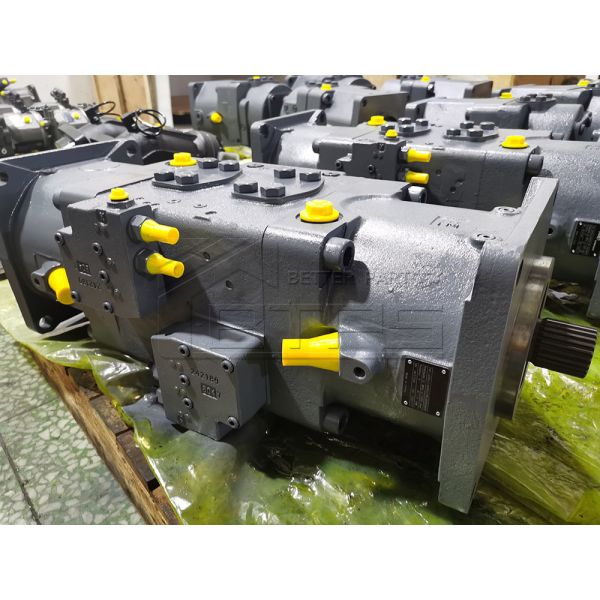

REXROTH A20VLO190 A20VLO 190DRS/10R-NZD 24NOO AXIAL PISTON VARIABLE DOUBLE HYDRAULIC PISTON PUMP CE/ISO CERTIFIED FOR EXCAVATORS
REXROTH A20VLO190 A20VLO 190DRS/10R-NZD 24NOO AXIAL PISTON VARIABLE DOUBLE HYDRAULIC PISTON PUMP CE/ISO CERTIFIED FOR EXCAVATORS
Specifications
Usage :
Hydraulic Piston Pump
Supply Ability :
200/month
Origin :
100% Original Rexroth Gear Pump
Certification :
CE ISO 9001
Feature :
High Efficiency,Long Life
Price :
negotiation
Delivery Time :
5-8days
Packaging Details :
standard
Place of Origin :
China
Payment Terms :
T/T
Appliion :
hydraulic pumps,exvaor
Brand Name :
Rexroth
Model Number :
A20VLO520 A20VLO260 A20VLO190 A20VLO95 A20VLO60
Product name :
Rexroth Hydraulic Pump
Type :
Hydraulic pump Rexroth
Condition :
100%new,New Rexroth pump, new & original,Oringal New
Material :
Cast Iron,Cast/Steel/Bronze/Ductile Iron and so on
Standard or nonstandard :
Standard
Warranty :
1 Year
Part number :
A20VLO520 A20VLO260 A20VLO190 A20VLO95 A20VLO60
Power :
Hydraulic
Fuel :
Diesel,hydraulic,oil
Name :
Rexroth Piston Pump,excavator pump parts rexroth pump hydraulic pumps
MOQ :
1
Pressure :
High Pressure
Color :
natural,Black or as you need
Description

REXROTH A20VLO190 A20VLO 190DRS/10R-NZD 24NOO AXIAL PISTON VARIABLE DOUBLE HYDRAULIC PISTON PUMP CE/ISO CERTIFIED FOR EXCAVATORS

Item Parameter Data
Structure Type Swashplate Double Variable Axial Piston Pump, Open Circuit Use
Available Displacement Spec 60cc,95cc,190cc,260cc,520cc/rev
Rated Working Pressure 250bar(60cc);350bar(95~520cc)
Peak Instant Pressure 315bar(60cc);400bar(95~520cc)
Allowable Suction Pressure ≤30bar
Allowable Drain Pressure ≤10bar
Rotation Direction Clockwise/Counterclockwise customizable
Mounting Standard SAE flange port, Standard SAE installation dimension
Common OEM Part No. A20VLO190DRS/10R-NZD24N00, A20VLO260LRDH1/10R-NZD24K02

Available Control Types Introduction

  1. DR (Pressure Control): Automatically adjust pump displacement to stabilize system set working pressure, cut unnecessary flow output for idle load
  2. LR (Constant Power Control): Maintain constant input power under variable pressure, prevent engine overload and match engine power curve perfectly
  3. HD (Pilot Hydraulic Control): Remote pilot oil signal controls pump flow remotely for centralized machine operation
  4. EP (Electro Proportional Control): Electric proportional signal stepless regulates displacement, realize automatic intelligent hydraulic control

REXROTH A20VLO190 A20VLO 190DRS/10R-NZD 24NOO AXIAL PISTON VARIABLE DOUBLE HYDRAULIC PISTON PUMP CE/ISO CERTIFIED FOR EXCAVATORS

Pump Model Max Displacement (cm³/rev) Nominal Pressure (bar) Peak Pressure (bar) Weight (kg)
A20VLO60 60.0 350 400 44
A20VLO95 93.8 350 400 107
A20VLO190 192.7 350 400 213
A20VLO260 260.0 350 400 275
A20VLO520 520.0 350 400 640

A20VLO Hydraulic Main Pump Replacement

A20VLO replacement hydraulic pump is produced following original installation size and internal structure standards, fully interchangeable with original equipment pumps without modifying machine pipeline or mounting bracket.
Premium wear-resistant friction pairs effectively extend service cycle under harsh construction site working environments. Multiple control options in stock to match different original machine control configurations.

Perfect replacement for aging or damaged main pumps on large excavators, concrete machinery and mine vehicles, greatly shorten equipment downtime and reduce maintenance cost for end users.

  • A20VLO190DR/10R-NPD24N00,R902123778
  • A20VLO190DR/10L-NPD24N00,R902123779
  • A20VLO190EP6D/10R-NZD24K07H-S,R902220399
  • A20VLO190EP6D/10R-NZD24N00H-S,R902248462
  • A20VLO190EP6D/10L-NZD24N00H-S,R902255635
  • A20VLO190DRS/10R-NZD24N00,R902125987
  • A20VLO190DRS/10L-NZD24N00,R902125988
  • A20VLO190LR3DN/10R-VZH26K00,R902127654
  • A20VLO190LR3DN/10L-VZH26K00,R902127655
  • A20VLO190DR/10R-NZD24K17-S2106,R902128891
  • A20VLO190DR/10L-NZD24K17-S2106,R902128892
  • A20VLO190LRGH2+A10VO28DR,R902248013
  • A20VLO190LRGH2+A10VO71DR,R902248014
  • A20VLO190DR/10R-NZD24K99-S2065,R902130112
