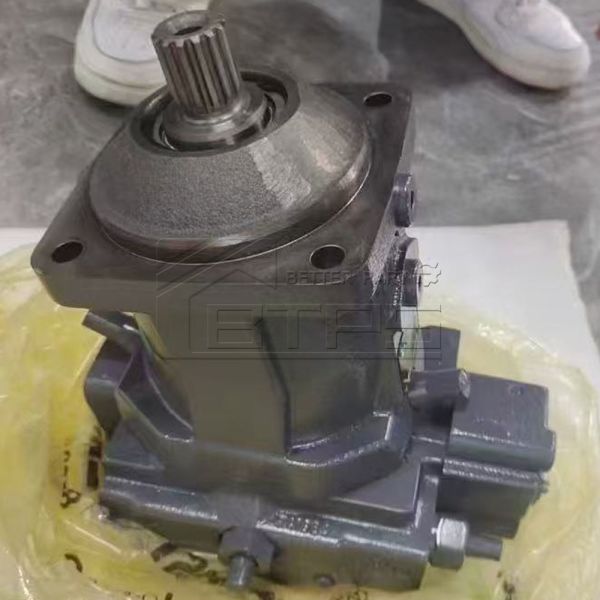

Plastic & Injection Molding Machinery Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Plastic & Injection Molding Machinery Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Plastic & Injection Molding Machinery Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Plastic & Injection Molding Machinery Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Specifications
Model Number :
A7VO A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Material :
Iron
Product name :
Hydraulic variable displacement axial piston pumps,Manual hand hydraulic piston pumps
Brand Name :
BTPS
Power :
Hydraulic
MOQ :
1
Delivery Time :
7 days
Warranty :
1 Year/12months
Feature :
High Efficiency,Long Life,high pressure
Payment Terms :
T/T
Place of Origin :
China
After-sales Service Provided :
Online support
Theory :
Axial Flow Pump
Structure :
Piston Pump
Price :
NIGOTIATION
Appliion :
Excavator/Machinery
Supply Ability :
2000pcs/year
Displacement :
A7 A7V A7VO A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Usage :
Hydraulic Motor
Name :
hydraulic piston pumps
Pressure :
High Pressure
Certification :
CE
Voltage :
A7 A7V A7VO A7VO28 A7VO55 A7VO80 A7VO107 A7VO160
Packaging Details :
wooden box
Fuel :
Diesel,Hydraulic oil
Color :
as customer required
Description

Plastic & Injection Molding Machinery Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO160


Item Specification
Structure Bent-axis axial tapered piston variable pump, open circuit
Displacement Sizes (Vg max) 28,55,80,107,160,250,355,500 cm³/rev
Nominal Pressure 350 bar
Peak Pressure 400 bar
Control Types LR, LRD, LRDH, LRH, DR, DRG, DRS, HD1, HD2, EP, EPG
Rotation Direction Clockwise / Counter-clockwise
Mounting Form Flange mount, multi-position installation
Working Medium Mineral hydraulic oil, fire-resistant hydraulic fluid (custom seal)
Operating Temperature -20℃ ~ +80℃
Housing Max Pressure ≤6 bar


Product Overview

Displacement frame sizes cover 28 / 55 / 80 / 107 / 160 / 250 / 355 / 500 cm³/rev, equipped with complete control modules including constant power control, pressure cut-off control, hydraulic pilot control and proportional electric control to match all complex load working conditions. The compact housing allows multi-position installation, side/rear port options for narrow engine compartment layout, low moment of inertia to reduce startup shock and energy consumption.


Plastic & Injection Molding Machinery Pump A7VO28 A7VO55 A7VO80 A7VO107 A7VO16000

  • Underground coal mine heading machine hydraulic pump: A7VO160LRD/63R-PZB01V
  • Coal mine transport scraper auxiliary drive pump: A7VO250LRD/63R-PZB01V
  • Metal mine underground loader main pump: A7VO160DRG/63L-DZB01
  • Mining drill jumbo rotation & feed pump: A7VO80LRGH1/63R-NZB01
  • Mine hydraulic support test bench power pump: A7VO355DR/63R-VPH01


Each pump is supplied with exclusive original R material number for full interchangeability with OEM equipment. Provide below info for accurate quotation:
  1. Complete pump model (e.g. A7VO107DRS/63L-NZB01-S)
  2. Corresponding R part number
  3. Rotation direction, shaft spline specification
  4. Control mode and pressure setting
  5. Application machine model
