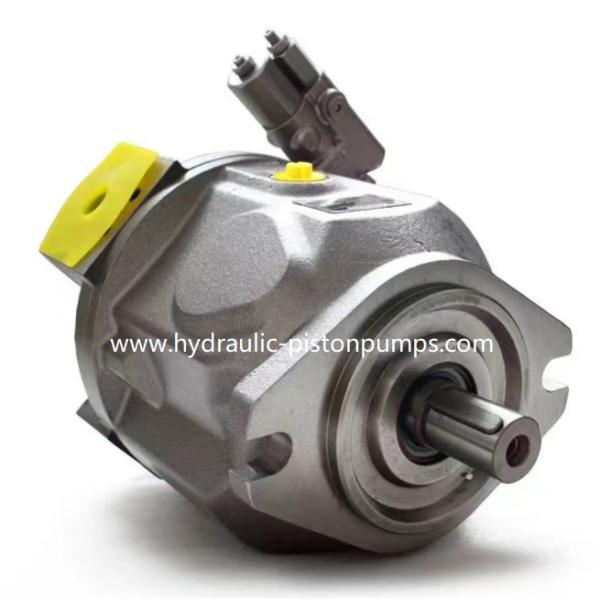

Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Specifications
Brand Name :
REXROTH
Model Number :
A10VSO18/A10VSO28/A10VSO45
Certifiion :
CE ISO 9001
Place of Origin :
China
MOQ :
1
Price :
NIGOTIATION
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
5 work days
Packaging Details :
standard box
Usage :
Hydraulic Piston Pump
Appliion :
Hydraulic System,hydraulic pumps,exvaor
Structure :
Piston Pump
Power :
Hydraulic
Pressure :
High Pressure
Fuel :
hydraulic
Theory :
hydraulic pumps
Standard or nonstandard :
Standard
Color :
Black or as you need
Material :
Cast Iron
Product name :
Hydraulic Pumps,Genuine Rexroth Hydraulic Gear Pump
Warranty :
1 Year,12 Months,one year
Condition :
100%new,New Rexroth pump,OEM new & original,Oringal New
Feature :
High Efficiency,Long Life
Type :
Hydraulic pump Rexroth
Name :
Rexroth Piston Pump
Description
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Characteristics:
Pump Model
A10VSO
Working volume, cm3
28
Max. pressure, bar
350
Shaft type
P = keyed DIN 6885
Shaft rotation direction
right
Interchangeable with:
R910916805 R910995115
Interchangeable with: Code Rexroth
A10VSO28DFR1/31R-VPA12N00
Mounting standard
A = ISO 3019-2 (2 holes)
Seal material
V=FKM
Interchangeable with Rexroth article*
R910916805 R910995115
Country of Origin
China
If not in stock, the delivery time will be:
60 days
Regulator
DFR1
Nominal pressure, bar
280
Series
31
through shaft
No
Ports
12 = SAE flange
Regulator (description)
DFR1 = pressure and flow regulator, port X plugged
Through shaft (description)
No
Weight in kg
19
Dimensions in cm
26x21x19
Adjustable hydraulic axial piston pump with inclined faceplate A10VSO28DFR1/31R-VPA12N00 with a working volume of 28 cm3 and regulator DFR1 = pressure and flow regulator, channel X is plugged, maximum pressure up to 350 bar, is a reliable budget alternative to German-made pumps Bosch Rexroth A10VSO28DFR1/31R- VPA12N00 R910916805 R910995115. Hydraulic pump A10VSO28DFR1/31R-VPA12N00 has a shaft - P = DIN 6885 keyway, right hand rotation, mounting flange according to A = ISO 3019-2 (2 holes), V = FKM seals, pressure and suction ports - 12 = SAE flange, through shaft - no. A10VSO28DFR1/31R-VPA12N00 pumps are manufactured in China at a leading hydraulic machine manufacturer, and after release, the pumps are required to undergo final tests on the bench, which ensures a guarantee of performance.
Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140Rexroth Bomba Variable A10VSO Hydraulic Piston Pump A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Size 18 28 45 71 100 140
Rated pressure p N bar 280 280 280 280 280 280
Max pressure pmax bar 350 350 350 350 350 350
built-in V g max cm3 18 28 45 71 100 140
Rotation frequency Max. rotational speed nmax min–1 3300 3000 2600 2200 2000 1800
Consumption for n nom qV l/min 59 84 117 156 200 252
Power Δp = 280 bar Pmax kW thirty 39 55 73 93 118
Torque Δp = 280 bar Tmax Nm 80 125 200 316 445 623
Weight (approx.) m kg 12 15 21 33 45 60
