190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05
Specifications
Brand Name :
Helm Tower
Model Number :
MS05
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
700 units per month
Delivery Time :
15 days
Packaging Details :
Standard Export Wooden Case
Type :
Hydraulic Piston Motor
Color :
Customized
Speed :
0-190 r/min
Torque :
1650-2650 N.m
Condition :
New
Warranty :
1 year
Description

Piston Hydraulic Wheel Motor Horseshoe Motor Poclain MS05​

Product Description
Product Description

Poclain MS05/MSE05 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in mining machinery( coal mine drill, heavy duty handling car), construction machinery(scavenging machine, aircraft tractor), farming machinery( mini farming vehicle, ditcher), etc.

Specifications:

Code
MS05
Displacement Group
6
8
0
1
2
Displacement(ml/r)
260
376
468
514
560
Theoretical torque at 10 MPa(N.m)
413
598
744
817
890
Rated speed(r/min)
160
160
125
125
125
Rated pressure(Mpa)
25
25
25
25
25
Rated torque(N.m)
850
1200
1500
1650
1800
Max pressure(Mpa)
31.5
31.5
31.5
31.5
31.5
Max torque(N.m)
1050
1500
1850
2050
2250
Speed range(r/min)
0-265
0-250
0-250
0-220
0-200
Max power(kW)
29
Wheel Motor & Shaft Motor
Brake or No Brake

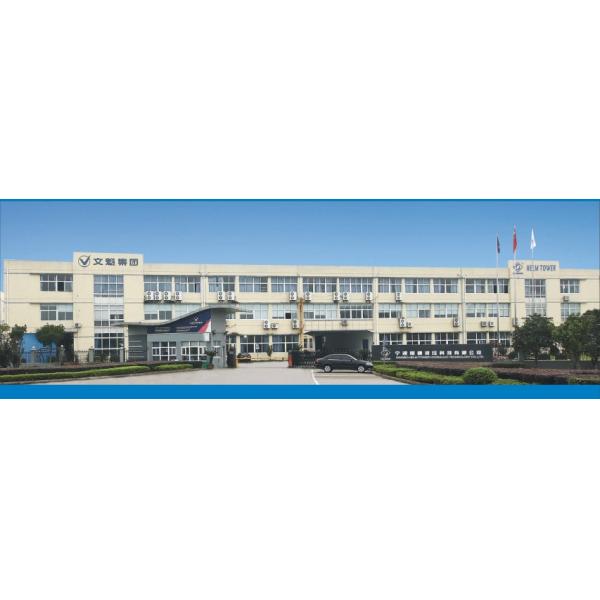

Our Company
Our Company

190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05

Workshop View:

190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05

190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05

190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05

Quality Control:

190r/Min Horseshoe Piston Hydraulic Wheel Motor Poclain MS05

FAQ
FAQ

Q: Are you a manufacturer or trading company?

A: Manufacturer in Ningbo for more than 10 years.

Q: Which products you can provide?

A: Hydraulic motor(Vane motor, Poclain MS series motor, HMCR series motor ,etc), hydraulic pumps, hydraulic drum cutters and spare parts

we also can provide maintenace services

Q: Your minmun order quantity(MOQ)?

A: 1 set

Q: How can you guarantee the quality?

A: During the production, we will test every parts and every motor

If you meet with quality problem within 1 year, we will replace goods or spare parts
