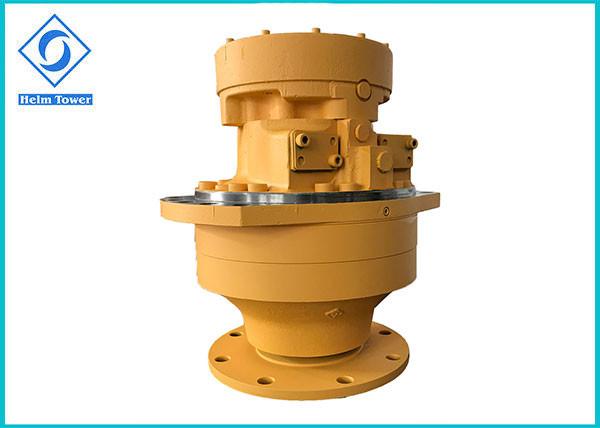

100rpm Hydrualic Rotary Motor Double Speed Poclain MS18 For Caterpillar 226B 216B
100rpm Hydrualic Rotary Motor Double Speed Poclain MS18 For Caterpillar 226B 216B
Specifications
Brand Name :
Helm Tower
Model Number :
MS18
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
Type :
piston motor
Color :
customized
Speed :
0-100 r/min
Torque :
8343-8500 N.m
Rated pressure :
25 MPa
Max. pressure :
31.5 MPa
Description

Double Speed Hydrualic Rotary Motor 100rpm Poclain MS18 For Caterpillar 226B 216B

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( Backhoe loader, explosion-proof forklift, forklift), Mining Machinery( Mini road header, heavy duty handing car, coal mine drill), Marine Machinery(windlass, crane), etc.

Type MS18-8 MS18-9 MS18-0 MS18-1 MS18-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
1395 697 1571 785 1747 873 1911 955 2099 1049
Max power(kw) 62 42 62 42 62 42 62 42 62 42

Pressure discrepancy

10MPa Torque (N. m)

 2085 1022 2348 1151 2611 1279 2856 1400 3137 1537
Rated torque(N. m) 5212 5870 6528 7140 7843
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 55 55 55 55 50
Speed range(r/min) 0-150 0-150 0-150 0-135 0-125

100rpm Hydrualic Rotary Motor Double Speed Poclain MS18 For Caterpillar 226B 216B

Applications:

Consturction Machinery: Backhoe Loader, Explosion - Proof Fprklift, Forklift

Mining Machinery: Mini Road Header, Heavy Duty Handing Car, Coal Mine Drill

Marine Machinery: Wildlass, Crane
