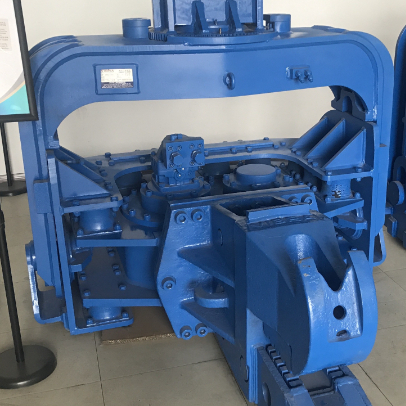

3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
3 Ton Pile Hammer for 15m Depth: High-Capacity Vibro Hammer for Excavators
Specifications
Brand Name :
VIBRA
Model Number :
PCF-350
Certification :
ISO 9001:2015
Place of Origin :
SHANGHAI
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,D/P,Western Union,MoneyGram,L/C
Supply Ability :
15 set/month
Delivery Time :
7-35 days
Packaging Details :
5.824 CBM
Name :
Vibratory Pile Driving Equipment
Feature :
Eco Friendly and fitted with any brand of excavator
Extension Arm :
750 KG
Operation Pressure :
32 MPA
Hammer Weight :
2950 KG
Vibration Frequency :
3500 RPM
Centrifugal Force :
470 KN
Excavator Weight :
40~45 Ton
Maximum Piling Depth :
15 meter
Color :
Blue/Yellow/Red/White, customized color available
Material :
Steel, Core materials are all imported
Type :
Hydraulic Vibrating Hammer
HS Code :
8430100000
Condition :
New
Description
PCF Series 3-Ton Hydraulic Vibratory Pile Hammer
Core Keywords: Pile Hammer, Vibratory Pile Hammer, 3 Ton Pile Hammer, Hydraulic Pile Hammer, Excavator Mounted Pile Hammer, Deep Foundation Pile Hammer
Product Description

The PCF Series 3-Ton Vibratory Pile Hammer delivers exceptional performance for deep foundation projects requiring up to 15-meter piling depth. Utilizing high-frequency vibration up to 3500 RPM, this robust pile hammer effectively liquefies surrounding soil to reduce friction and enable efficient pile driving. Compatible with all major excavator brands, it combines powerful centrifugal force with advanced vibration control technology to handle various piling materials including sheet piles, concrete piles, and H-beams.

Key Features & Advantages

  • Deep Piling Capacity: Specifically engineered for projects requiring up to 15-meter pile depth

  • Universal Compatibility: Suitable for all excavator brands between 27-70 tons

  • Advanced Vibration Control: Two-stage frequency adjustment with dual-pump combination for enhanced excitation force

  • 360° Rotation Capability: Allows pile positioning through 180° positive and negative rotation for optimal placement

  • Environmentally Friendly: Rubber sheath integration reduces noise and vibration for urban applications

  • High-Efficiency Operation: Achieves vibration frequencies of 3200-3500 RPM for rapid pile driving

  • Minimal Pile Damage: Gentle vibratory action preserves pile integrity during installation and extraction

Technical Parameters
Parameter PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration Frequency (RPM) 3500 3300 3500 3300 3200
Operation Pressure (Mpa) 32 32 32 32 32
Centrifugal Force (KN) 385 420 470 535 585
Max. Pile Length (m) 12 12 15 18 21
Hammer Weight (kg) 2750 2850 2950 3150 3350
Excavator Weight (T) 27-30 33-38 40-45 47-55 55-70
Frequently Asked Questions (FAQ)
Q: What is the warranty period for the pile hammer?
A: We provide a 12-month warranty from installation date, covering main components and host machine (excluding wear parts).
Q: What is the minimum order quantity?
A: MOQ is 1 set, with flexible ordering options available.
Q: What payment methods do you accept?
A: We accept T/T and D/P payments for all orders.
Q: What is the typical delivery time?
A: Delivery takes 7-35 days to Shanghai Port, with additional shipping time for international destinations.
Q: Can we add our logo to the equipment?
A: Yes, we offer complete logo customization services.
Q: How is product quality ensured?
A: All equipment strictly follows national "Technical Conditions for Pile Driver Enterprises" standards.
Q: Do you offer dealership opportunities?
A: We welcome dealership applications and are seeking regional partners for strategic growth.
About VIBRA Pile Hammers

Shanghai Yekun Machinery, established in 2009, specializes in manufacturing high-performance hydraulic vibratory pile hammers. Our PCF series represents the latest advancement in piling technology, combining international technical expertise with robust engineering design. With a focus on innovation and quality, we provide comprehensive piling solutions for infrastructure projects worldwide, supported by a young and professional technical team dedicated to customer success.
