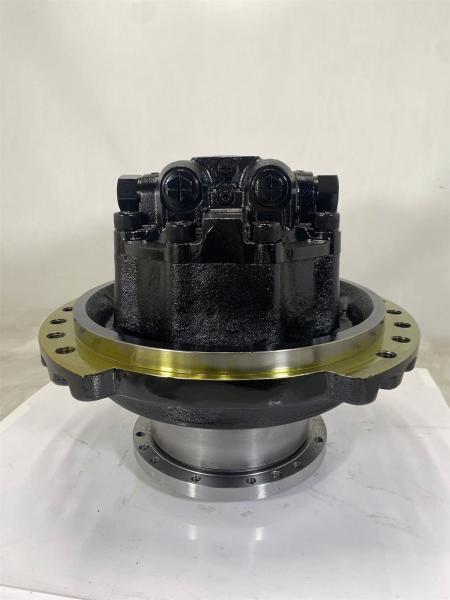

Final Drive ZX270-3 ZX330-1 Excavator Travel Motor For 9255876 Mini Excavator Parts
Final Drive ZX270-3 ZX330-1 Excavator Travel Motor For 9255876 Mini Excavator Parts
Final Drive ZX270-3 ZX330-1 Excavator Travel Motor For 9255876 Mini Excavator Parts
Final Drive ZX270-3 ZX330-1 Excavator Travel Motor For 9255876 Mini Excavator Parts
Final Drive ZX270-3 ZX330-1 Excavator Travel Motor For 9255876 Mini Excavator Parts
Final Drive ZX270-3 ZX330-1 Excavator Travel Motor For 9255876 Mini Excavator Parts
Specifications
Brand Name :
Belparts
Model Number :
ZX270-3 ZX330-1
Place of Origin :
made in China
MOQ :
1 piece
Price :
Negotiable price
Payment Terms :
T/T, trade assurence,Paypal
Supply Ability :
1000pcs
Delivery Time :
1-7days
Packaging Details :
Wooden case
Part name :
ZX270-3 excavator hydraulic motor
Application :
Excavator
Model: :
ZX270-3
Part number :
9255876
Brand: :
Belparts
Warranty: :
6 months
Material :
steel
Quality: :
high quality
Description

Final drive ZX270-3 ZX330-1 Excavator Travel Motor for 9255876 mini excavator parts

Product name: Travel motor Assy

Place of Origin:China(mainland)

Model:ZX270-3 ZX330-1

Part number:9255876

MOQ:1 PCS

Payment term:T/T & Paypal& trade assurence

Delivery time: Within 3 days after receiving the payment

Packing: Standard exporting packing or as required

List of spare parts

# Part No Part Name Qty. Price request
9255880 TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) 1
9256990 TRAVEL DEVICE (FOR TRANSPORTATION) 1
00 9255876 . MOTOR; OIL (TRAVEL) (FOR ASSEMBLY OF MACHINE) 1
00 9251292 . MOTOR; OIL (TRAVEL) (FOR TRANSPORTATION) 1
02 1033048 . DRUM 1
03 4066695 . SEAL; GROUP 1
04 4629674 . BRG.; ROL. 2
07 A590920 . WASHER; SPRING 24
08 J932060 . BOLT 24
09 1033227 . SPROCKET 1
10 3094717 . NUT 1
11 4470326 . PLATE; LOCK 1
12 J901225 . BOLT 2
14 1022198 . CARRIER 1
15 4401293 . SPACER 3
16 3075003 . GEAR; PLANETARY 3
17 4455088 . BRG.; NEEDLE 6
18 4269470 . PLATE; THRUST 6
19 4269452 . PIN 3
20 4192021 . PIN; SPRING 3
21 3075005 . GEAR; SUN 1
23 1022195 . GEAR; RING 1
24 J931640 . BOLT 28
26 1022197 . CARRIER 1
27 3075002 . GEAR; PLANETARY 3
28 4455099 . BRG.; NEEDLE 3
29 4284521 . PLATE; THRUST 6
30 4269451 . PIN 3
31 4197763 . PIN; SPRING 3
32 3074989 . GEAR; SUN 1
34 1022196 . CARRIER 1
36 3075001 . GEAR; PLANETARY 3
37 4455098 . BRG.; NEEDLE 3
38 4284520 . PLATE; THRUST 6
39 4269472 . PIN 3
40 4192020 . PIN; SPRING 3
41 2048000 . SHAFT; PROP. 1
43 2045031 . COVER 1
44 4277474 . PIN; STOPPER 1
45 4278168 . BRG.; BALL 1
46 930451 . RING; RETAINING 1
48 4245797 . PLUG 3
49 4609016 . BOLT; SEMS 16
51 . NAME-PLATE 1
52 M492564 . SCREW; DRIVE 2

The excavator travel assembly is the core component for machine movement, consisting of a hydraulic motor, reduction gearbox, sprocket, track chain, idler wheel, carrier roller, and track roller. Its key function is to convert hydraulic energy into mechanical power, enabling stable mobility across challenging terrains.

  1. Hydraulic Power Transmission

    • The hydraulic pump transforms engine power into high-pressure oil, which is transmitted to the travel motor via hydraulic lines.

    • The travel motor converts hydraulic energy into rotational kinetic energy, generating high-speed, low-torque output.

  2. Speed Reduction & Torque Amplification

    • The gearbox reduces motor speed through gear sets while significantly increasing torque, ensuring sufficient traction force for the sprocket.

  4. Track Drive Mechanism

    • The sprocket engages with track links to drive the track chain. Carrier rollers and track rollers form a closed-loop track system, while the idler wheel adjusts track tension.

    • Differential control of dual travel motors enables forward/reverse movement, steering, and zero-radius rotation.
