Specifications
Brand Name :
Belparts
Model Number :
XE195 XE210 XE215 XE230 XE240
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
1000pieces
Delivery Time :
1-7days
Packaging Details :
Wooden packing
Model :
XE195 XE210 XE215 XE230 XE240
pump number :
K3V112DT-9NC9
Appliion :
Crawler excavator parts
Name :
hydraulic main pump
Condition :
new/used
Description

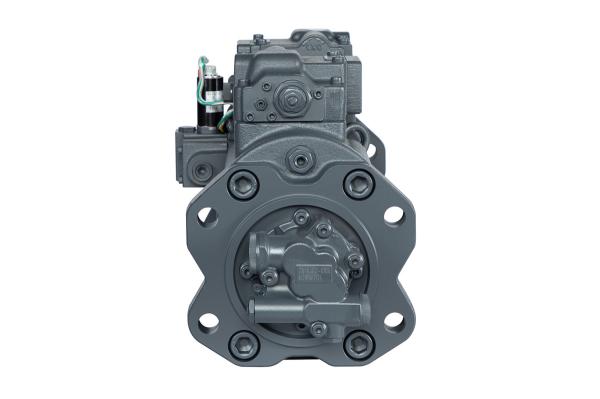

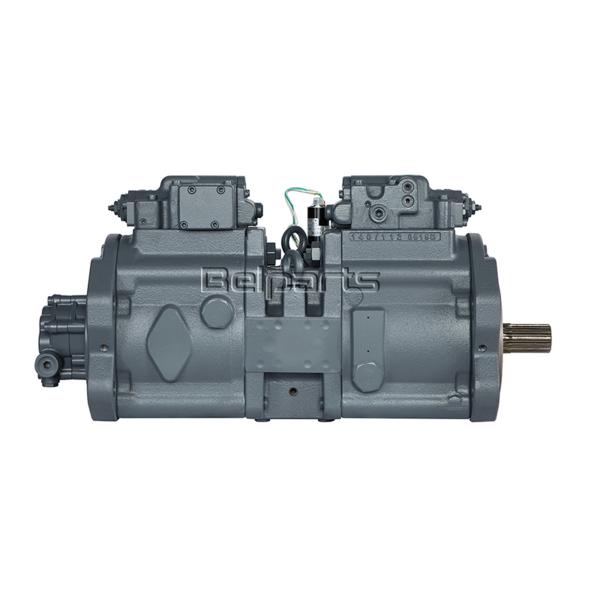

Excavator spare parts K3V112DT-9NC9 hydraulic pump assembly XE195 XE210 XE215 XE230 XE240 hydraulic pump assembly

The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty applications.

PRODUCT DESCRIPTION

Model: XE195 XE210 XE215 XE230 XE240

 category: Hydraulic Pump assy

Part number: K3V112DT-9NC9

 Place of Origin:China/other country
Condition: Original & Oem Warranty: 12 months
MOQ: 1 pcs Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard Payment Term: L/C,T/T, Tradeassurance
Delivery Time: 1-3 days (depend on order) Means of Transport: By Sea, Air or DHL
Guarantee: We will check and send detailed pictures to buyers for confirmation

We could supply the hydraulic pump , also the inner spare parts as below model:

Model Pump number
ЕС210 K3V112DT-9N-14Т K3V112DT-9N-14Т ( ЕС210) CH
R210-7 K3V112DT-9С-12Т K3V112DT-9С-12Т (R210-7) CH
JS220 K3V112DTP-9С-14Т K3V112DTP-9С-14Т (JS220) CH
DX225 K3V112DTP-9N-12Т K3V112DTP-9N-12Т (DX225) CH
S255 K3V112DTP-HNOV-14T K3V112DTP-HNOV-14T(PTO) (S255) CH
S225LC-V K3V112DT-HNOV-12T K3V112DT-HNOV-12T (S225LC-V) CH
DH258-5-7 K3V112DTP-HNOV-14T K3V112DTP-HNOV-14T(PTO) (DH258-5-7,S255LC-V,S225NLC-V) CH
ЕС140 K3V63DT-9N-14Т K3V63DT-9N-14Т (ЕС140) CH
R130 K3V63DT-9С-14Т K3V63DT-9С-14Т (R130,R140-7, JS130,JS160) CH
JS160 K3V63DTP-9С-14Т K3V63DTP-9С-14Т (JS160) CH
DX300 K5V140DTP-9N-17Т K5V140DTP-9N-17Т (DX300) CH
EC460 K5V200DTH-9N-17Т K5V200DTH-9N-17Т (EC460,R480-9S) CH
PC200-7 708-2L-00300 708-2L-00300 Hydrualic pump PC200-7

The axial piston pump with a tilting swashplate is the undisputed workhorse for primary hydraulic circuits in modern excavators. Its core principle involves multiple pistons arranged axially (parallel to the drive shaft) within a rotating cylinder block. Each piston features a slipper pad riding on a non-rotating swashplate angled relative to the drive shaft's axis. As the cylinder block rotates, the pistons reciprocate within their bores: moving outward during the half-rotation where the swashplate distance increases (suction stroke, drawing fluid from the inlet port), and being forced inward during the opposite half-rotation where the distance decreases (discharge stroke, pressurizing fluid to the outlet port). The critical structural element for variable displacement is the adjustable swashplate angle. By changing this angle (typically via a hydraulic servo piston controlled by the operator or machine electronics), the stroke length of the pistons is altered.
