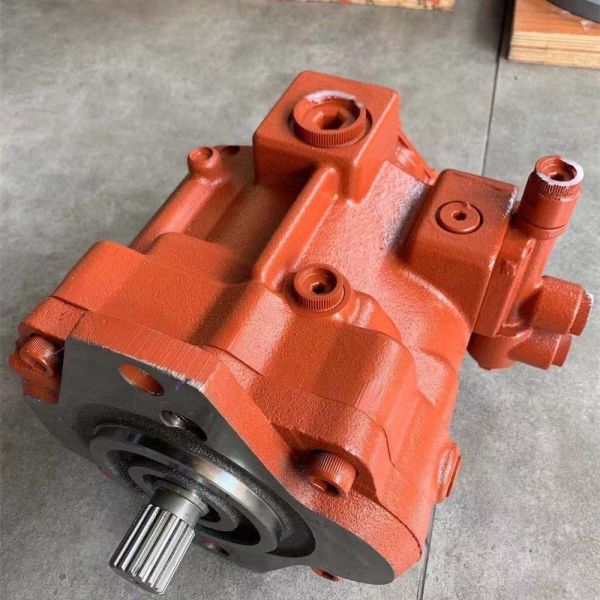

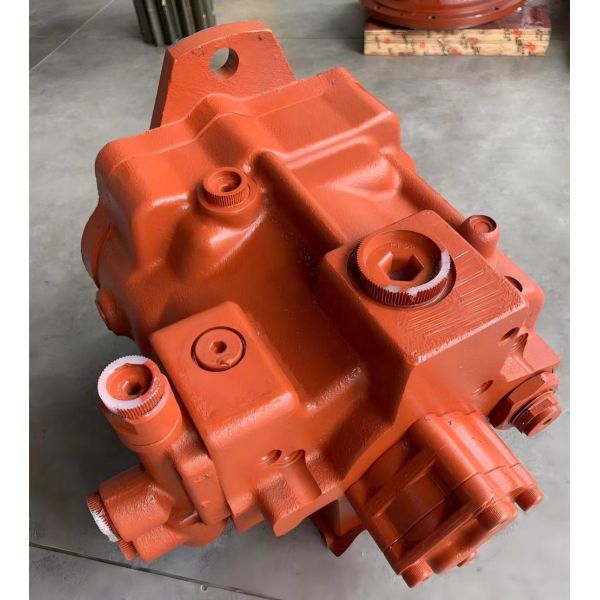

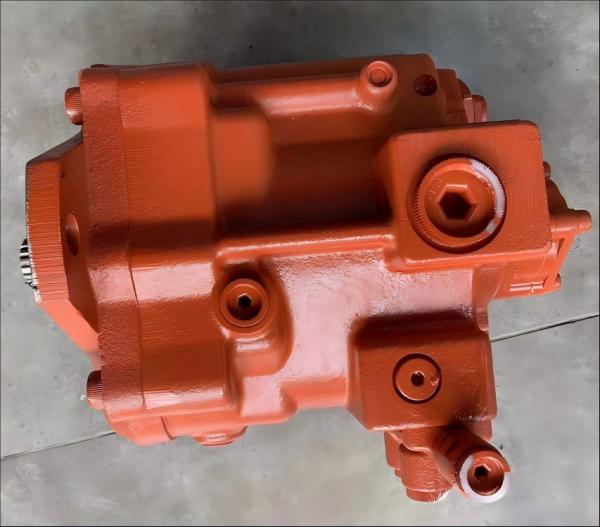

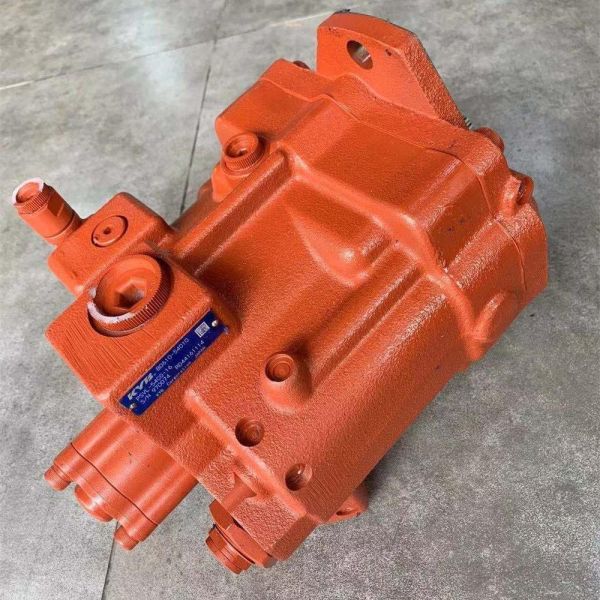

• Part Name: KYB PSVL-54CG Variable Axial Piston Pump with Integrated Pilot Pump
• OEM Part Numbers:
  • Kubota: 59140-26200, B0610-54010
  • KYB Model: PSVL-54CG
• Compatible Models: Kubota KX101-3, KX151, KX155, also fits KX121-3, KX161-3, KX165
• Condition: Brand new aftermarket replacement
• Warranty: 12 months
• Net Weight: Approx. 45 kg
• Stock: In stock, ships within 3-7 working days
• Brand: BELPARTS

• Adopts original KYB PSVL-54CG design, fully matched to factory hydraulic parameters
• Equipped with load sensing and power control system for stable performance
• Integrated pilot gear pump for reliable hydraulic control
• Direct bolt-on installation, no modification required
• High pressure resistance and durable structure for heavy-duty continuous operation
• Every unit is strictly tested for pressure and leakage, CE & ISO9001 certified

• Pump Type: Open circuit variable axial piston pump
• Main Pump Displacement: 54 cm³/rev
• Rated Pressure: 24.5 MPa (245 bar)
• Max Pressure: 34.3 MPa (343 bar)
• Rated Flow: Approx. 108 L/min @ 2000 RPM
• Pilot Pump Flow: 4-7 L/min, Working Pressure: 4.9 MPa
• Rotation Direction: Clockwise
• Mounting: SAE B 4-bolt flange
• Drive Shaft: 15-tooth spline

• Fits: Kubota KX101-3, KX151, KX155, KX121-3, KX161-3, KX165
• Interchangeable Part Numbers: 59140-26200, B0610-54010, PSVL-54CG, PSVL-54CG-16, PSVL-54CG-14

• Over 13 years specializing in hydraulic pumps for 3-5 ton Kubota mini excavators
• Rigorous quality inspection to guarantee stable working performance
• Sufficient stock in Guangzhou warehouse, flexible sea and air shipping worldwide
• Professional technical team provides installation guidance and after-sales support
• Cost-effective alternative to genuine KYB and Kubota OEM parts

A: Yes, it is a universal replacement for all the listed models.

A: Yes. It is manufactured per original specs with identical size, parameters and connections.
