K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
Specifications
Brand Name :
Belparts
Model Number :
K3V112DT-9C32-12T
Place of Origin :
Made in China
MOQ :
1 piece
Price :
Negotiable price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
1000pieces
Delivery Time :
1-7days
Packaging Details :
Wooden packing
Model :
EX100-2 EX100-3 EX120-2 EX120-3
Part number :
9101530
pump number :
K3V112S-1NCJ-12T
Appliion :
Excavator, Engineering construction machinery
Highlight :
K3V112S-1NCJ-12T hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 hydraulic main pump
Name :
excavator main pump
Power :
Hydraulic
Condition :
new/used
Description

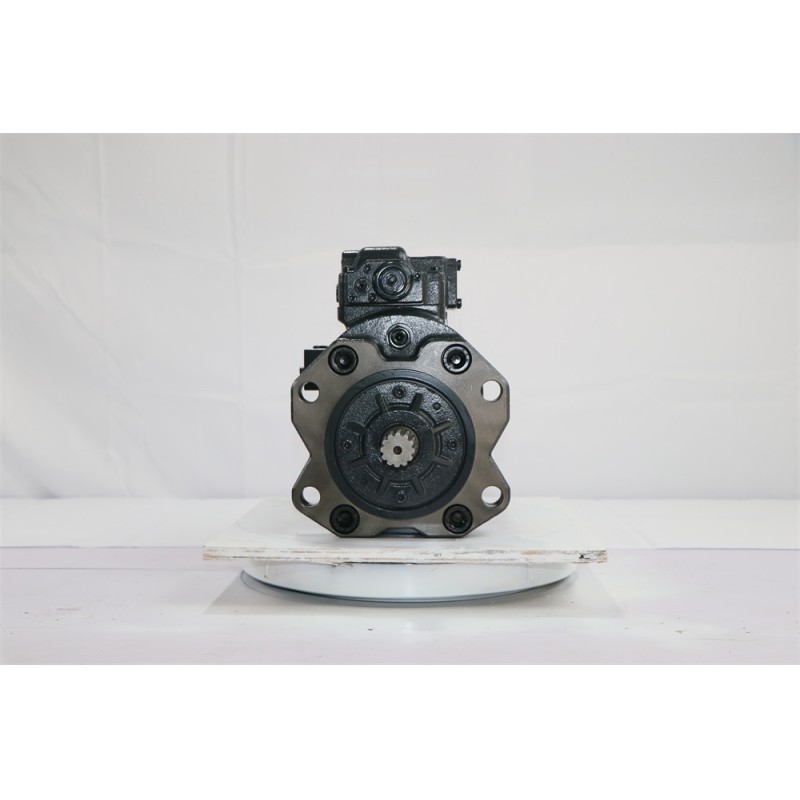

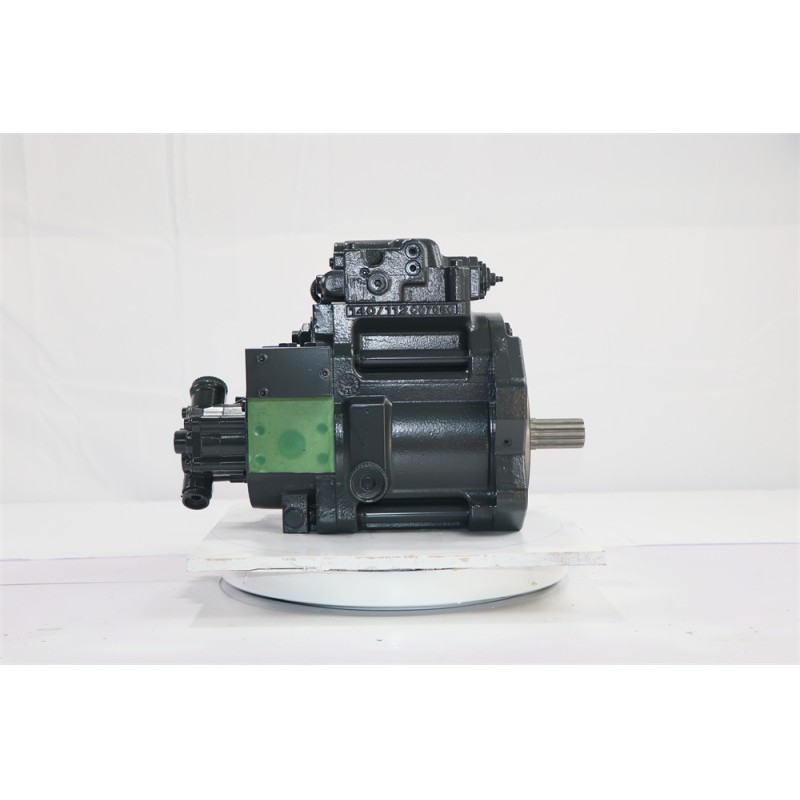

K3V112S-1NCJ-12T Excavator Hydraulic Pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty appliions.
Appliion Excavator, digger
Part Name Hydraulic Main Pump
Model EX100-2 EX100-3 EX120-2 EX120-3
Part Number 9101530
Warranty 6-12 months
Payment Term T/T, Trade Assurance, Paypal and etc.
Brand belparts

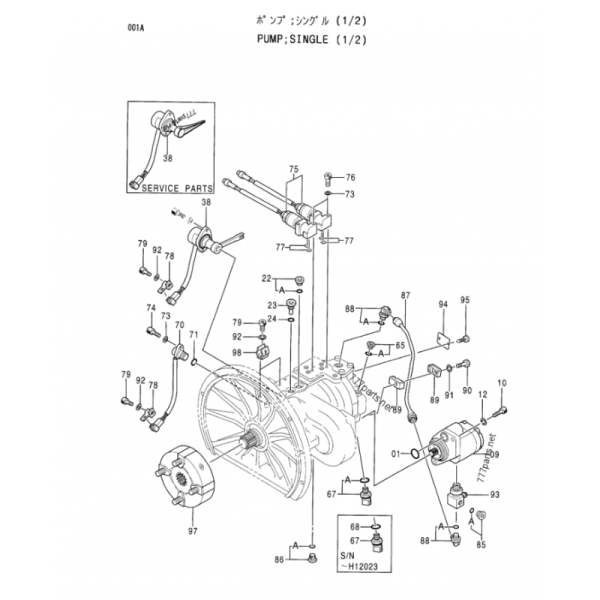

List of Spare Parts
# Part No Part Name Qty. Price request
9101530 PUMP; SINGLE (1/2) 1
01 4254405 . O-RING 1
09 4255303 . PUMP; GEAR 1
10 M341030 . BOLT; SOCKET 2
12 A590110 . WASHER; PLANE 2
22 9089486 . PLUG 1
22A 4509180 .. O-RING 1
23 4233165 . PLUG 1
24 957366 . O-RING 1
38 . SENSOR; ANGLE 1
38 . SENSOR; ANGLE 1
65 9089485 . PLUG 1
65A 957366 .. O-RING 1
67 4248773 . SENSOR; PRES. 1
67 4339754 . SENSOR; PRES. 1
67A 4150302 .. O-RING 1
68 4506416 . O-RING 1
68 4150302 . O-RING 1
70 4265372 . SENSOR; REVOL. 1
71 4269615 . O-RING 1
71 4306888 . O-RING 1
73 A590106 . WASHER; PLANE 5
74 M340616 . BOLT; SOCKET 1
75 9098250 . VALVE; SOLENOID 2
75 9120292 . VALVE; SOLENOID 2
76 M340645 . BOLT; SOCKET 4
77 971823 . O-RING 4
78 4252767 . BRACKET 2
79 M340613 . BOLT; SOCKET 4
85 9089485 . PLUG 1
85A 957366 .. O-RING 1
86 9089486 . PLUG 1
86A 4509180 .. O-RING 1
87 3055949 . PIPE 1
88 4179837 . FITTING; PIPE 2
88A 957366 .. O-RING 1
89 9736515 . CLAMP 2
90 J900830 . BOLT 1
91 A590908 . WASHER; SPRING 1
92 4169516 . WASHER; SPRING 4
93 4278547 . ADAPTER 1
94 3020380 . NAME-PLATE 1
95 M492564 . SCREW; DRIVE 2
97 4239375 . COUPLING; RUBBER 1
98 4276559 . CLAMP 2
K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump K3V112S-1NCJ-12T excavator hydraulic pump EX100-2 EX100-3 EX120-2 EX120-3 9101530 High-Pressure Excavator Hydraulic Pump
Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 198 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.
Mainly engaged in excavator hydraulic pumps, final drive, travel motors, swing motors, distribution valves, control valve assy, reduction gearbox, cylinder assy and various hydraulic spare parts.

Excavator hydraulic one-stop service, we can provide Komatsu, Hitachi, Kato, Doosan, Hyundai, Sany, Liugong, Sunward Intelligent, hydraulic pumps of various tonnage models, distribution valves, travel assemblies, travel motors, swing motors and hydraulic spare parts.
