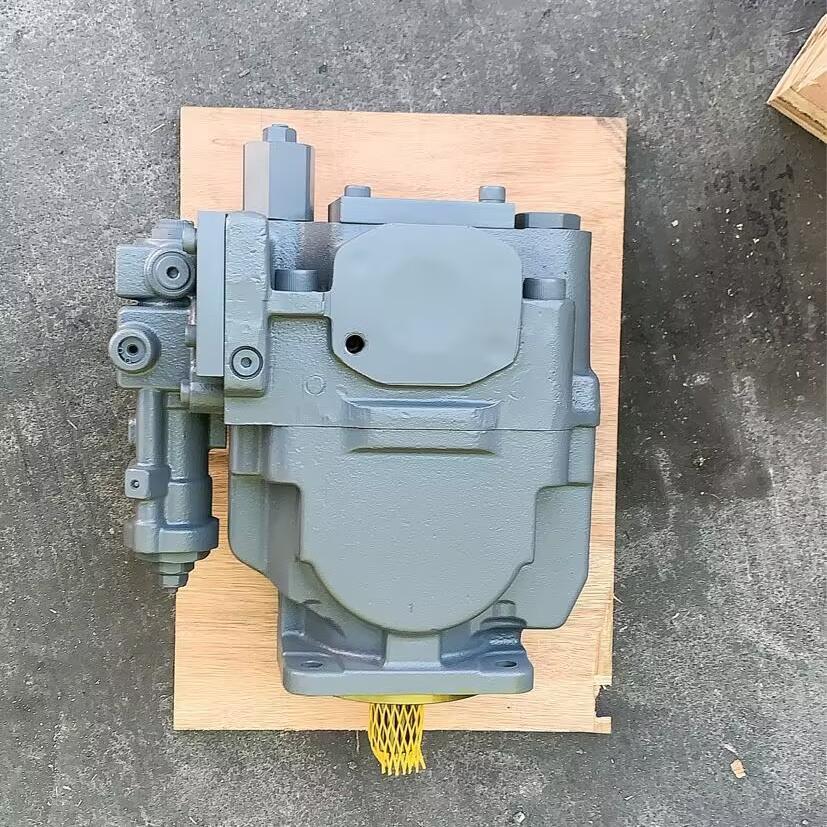

JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
JCB 8080 8085 ZTS Hydraulic Pump 333/R2915 333/R6486 20/925743 Toshiba PVC80RS04 For Mini Excavator
Specifications
Certifiion :
ISO9001 / 2006/42/EC
Quality :
OEM Refurbished
Model Number :
JCB 8080 8085 ZTS
Type :
PVC80RS04
MOQ :
1PCS
Delivery Time :
1~5 days
Appliion :
Excavator
Shipment :
DHL FEDEX TNT EMS UPS / Ses / Air
Payment Terms :
T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union,
Part name :
Hydraulic Pump
Price :
Negotiated price
Warranty :
6 months
Supply Ability :
100 PCS / Months
OEM :
Toshiba
Brand Name :
Belparts
Parts number :
333/R2915 333/R6486 20/925743
Packaging Details :
Wooden Case Packing
Place of Origin :
Japan
Model :
JCB 8080 8085 ZTS
Description
JCB 8080 8085 ZTS Hydraulic Pump
Basic Info
  • Item: Main hydraulic piston pump
  • PN:333/R2915,333/R6486,20/925743
  • Original pump model: Toshiba PVC80RS04
  • Fit Model: JCB 8080 ZTS, 8085 ZTS mini excavator
  • Grade: Genuine new / refurbished
  • Warranty:12 months
Core Advantages
  • Strictly follow Toshiba original structure parameters to realize direct bolt‑on installation
  • Refurbished units replace worn core components and complete bench calibration for stable flow output
  • High‑grade sealing assemblies effectively prevent leakage under high‑pressure alternating loads
  • Every finished pump passes pressure, flow and tightness tests before delivery
Technical Data
  • Structure: Variable displacement axial piston pump
  • Displacement:80 cc/rev
  • Max working pressure:31 MPa
  • Rated rotational speed:2400 rpm
  • Control mode: load sensing control
  • Seal material: high‑temperature resistant fluororubber
  • Rotation direction: factory specified rotation
  • Function: provide hydraulic power for travel, swing, boom, arm and bucket circuits
Cross Reference
  • Interchange codes:333/R2915,333/R6486,20/925743,Toshiba PVC80RS04
Service
  • Adequate inventory supports global sea & air shipment; professional installation guidance and after‑sales technical support available
FAQ

① Are these part numbers interchangeable?

Yes, the listed part numbers correspond to Toshiba PVC80RS04 and can replace each other.

② Which scenarios suit genuine new and refurbished products separately?

Genuine new for overhaul projects; refurbished options offer cost‑effective solutions for daily maintenance.

③ What situations are excluded from warranty?

Damage caused by improper installation, contaminated hydraulic oil and overload operation is not covered.

④ Can you provide installation guidance?

We supply installation notes and follow‑up technical support after order confirmation.

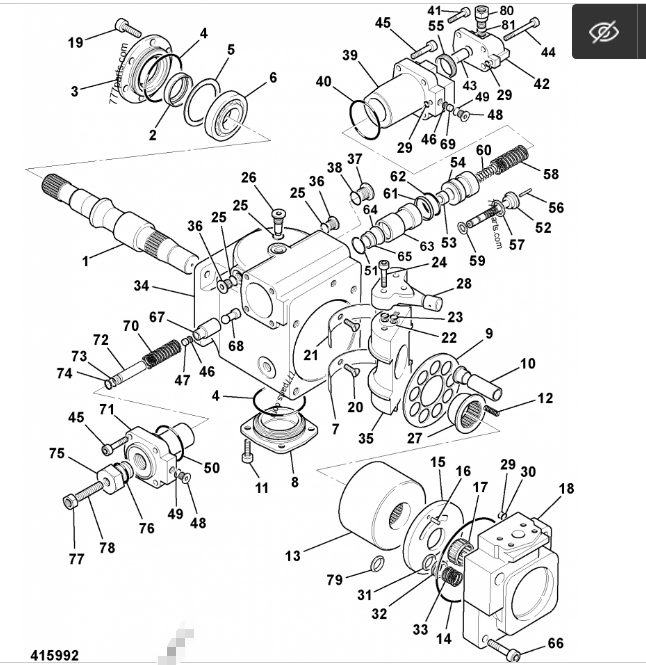

# Part No. Description Qty
3 20/951083 Seal, retainer 1
63 20/951151 Piston 1
57 20/951100 Shim, 1.00mm
79 20/951108 Bush 2
32 20/951093 Bush 1
25 20/951091 Seal, O ring 3
80 20/951585 Adapter 1
31 20/951143 Ring 1
45 20/951147 Capscrew 8
34 NSP None serviced part 1
50 20/951116 Seal, O ring 2
57 20/951102 Shim, 0.8mm
2 20/951082 Seal, shaft 1
37 20/951138 Cap 1
68 20/951153 Piston 1
7 20/951122 Cradle 1
82 25/222200 Kit, seal; contains 17 parts ,34 parts 1
23 20/951141 Seal, O ring 2
24 20/951142 Capscrew 2
78 20/951133 Bolt, adjusting 1
38 20/951144 Seal, O ring 1
57 20/951101 Shim, 0.5mm
30 20/951125 Ring, back up 3
72 20/951155 Stopper 1
11 20/951139 Capscrew 4
66 20/951584 Bolt, hex. socket 4
59 20/951103 Shim, 1.2mm
69 20/951154 Filter, holder 1
29 20/951112 Seal, O ring 8
21 20/951090 Cradle, H 1
60 20/951129 Spring 1
71 20/951107 Cover, return 1
76 20/951121 Seal, O ring 1
26 20/951137 Plug 1
17 20/951136 Bearing, needle 1
A 20/925446 Pump; MSS TO 20/925743 + 1620/2051 + 611/80238, D.JACKSON 29/06/06 SAN22623 1
64 20/951130 Plate 1
6 20/951109 Bearing, tapered roller 1
53 20/951149 Bush 1
33 20/951113 Spring 3
54 20/951097 Sleeve 1
65 20/951106 Receiver 1
59 20/951104 Shim, 0.8mm
52 20/951128 Rod 1
77 20/951157 Nut 1
20 20/951111 Screw 2
49 20/951115 Seal, O ring 2
1 20/951081 Shaft 1
41 20/951145 Capscrew 3
48 20/951096 Plug 2
15 20/951123 Plate, port 1
22 20/951124 Collar 2
81 25/221452 Seal, O ring 1
36 20/951094 Cap 2
61 20/951118 Ring, back up 1
43 20/951114 Piston, U 1
35 NSP None serviced part 1
73 20/951156 Seal, O ring 1
51 20/951148 Ring, snap 1
74 20/951120 Ring, back up 1
18 NSP None serviced part 1
4 20/951084 Seal, O ring 2
19 20/951140 Capscrew 6
16 20/951089 Dowel 3
75 20/951132 Plug 1
56 20/951099 Piston, B 1
12 20/951088 Spring 6
14 20/951110 Seal, O ring 1
58 20/951098 Spring 1
59 20/951105 Shim, 1.0mm
44 20/951146 Capscrew 1
27 20/951092 Retainer, ring 1
70 20/951131 Spring 1
40 20/951126 Seal, O ring 1
28 NSP None serviced part 1
8 20/951087 Cover 1
10 NSP None serviced part 9
46 20/951127 Filter 2
67 20/951119 Rod 1
42 20/951095 Cover, servo 1
39 NSP None serviced part 1
55 20/951117 Nut 1
47 20/951134 Holder, filter 1
9 20/951135 Plate, return 1
13 NSP None serviced part 1
5 20/951085 Shim, 0.2mm
5 20/951086 Shim, 0.5mm
62 20/951150 Seal, O ring 1
