JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
JCB 8052 8056 8060 Hydraulic Pump 20/602200 20/925263 For Mini Excavator Parts
Specifications
Model Number :
JCB 8052 8056 8060
Condition :
New
MOQ :
1PCS
Delivery Time :
1~5 days
Quality :
Aftermarket
Appliion :
Excavator
Place of Origin :
China
Payment Terms :
T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union,
Part name :
Hydraulic Pump
Warranty :
1 Year
Price :
Negotiated price
Model :
JCB 8052 8056 8060
Supply Ability :
100 PCS / Months
Parts number :
20/602200 20/925263
Certifiion :
ISO9001 / 2006/42/EC
Brand Name :
Belparts
Shipment :
DHL FEDEX TNT EMS UPS / Ses / Air
Packaging Details :
Wooden Case Packing
Description

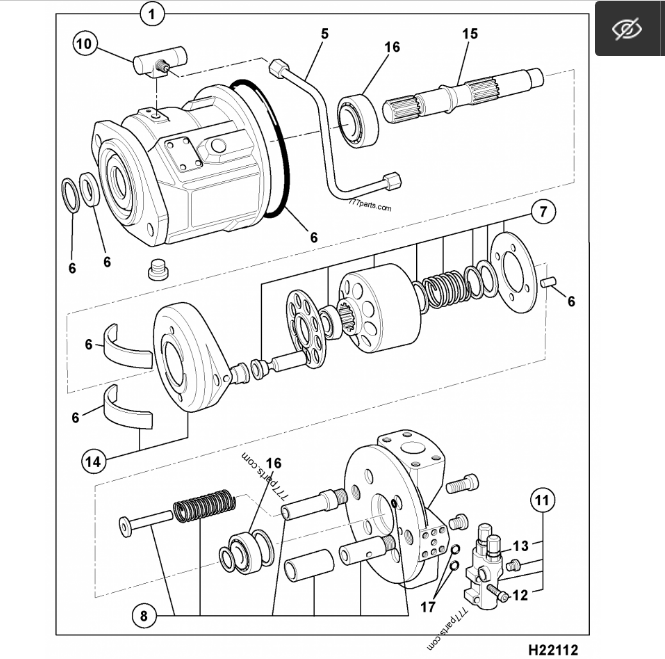

# Part No. Description Qty
5 20/950275 Pipe 1
16 20/950280 Kit-bearing 1
17 20/902618 O Ring 2
7 20/950273 Kit, rotary group 1
14 20/950278 Kit, swash plate 1
15 20/950279 Shaft, drive 1
12 20/902619 Screw, socket 4
10 20/950276 Valve, pilot 1
8 20/950274 Kit, control piston 1
1 20/602200 Pump, assembly, variable flow 1
13 . 'See Remark' 3
11 20/950277 Valve, control 1
6 20/602005 Kit-seal, pump 1

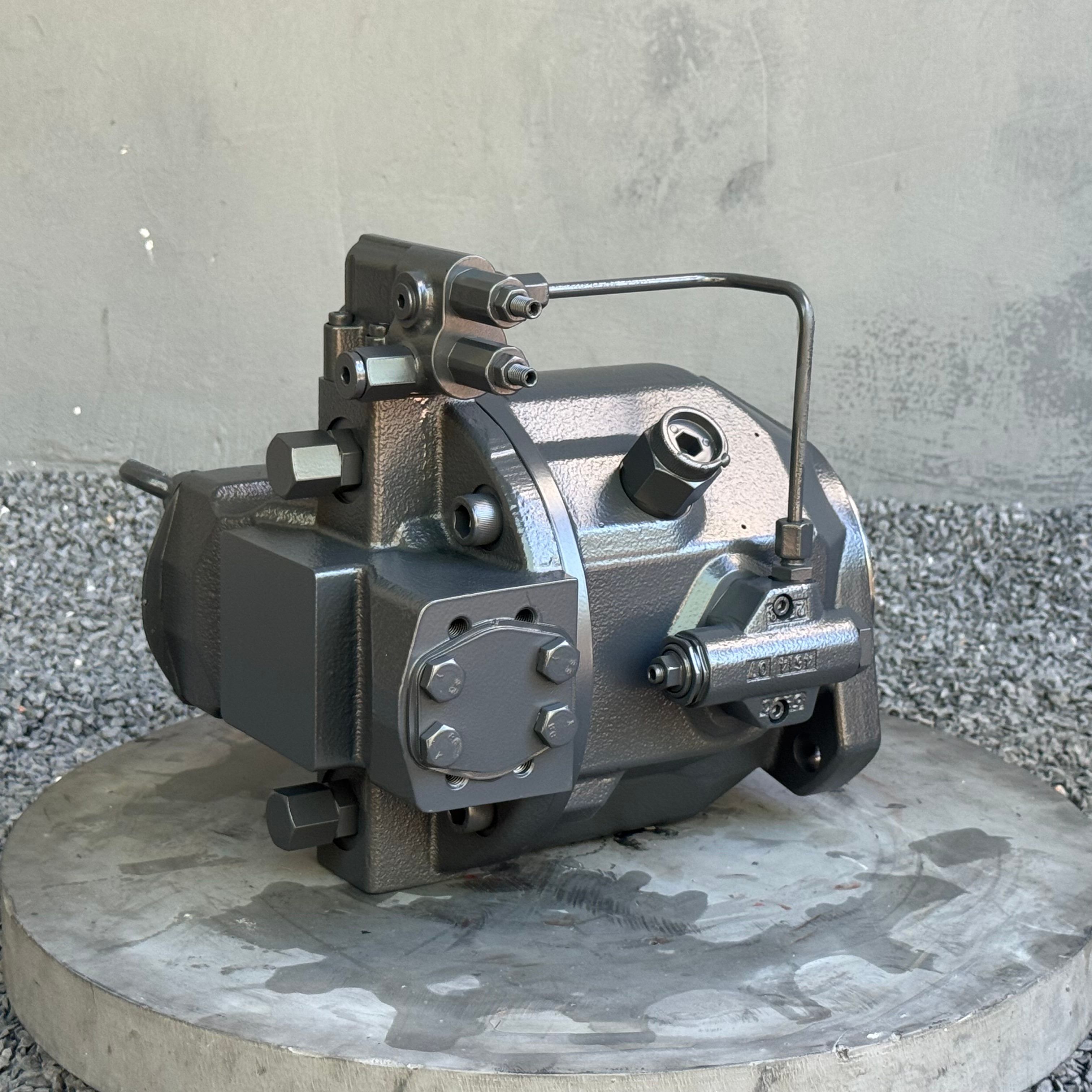

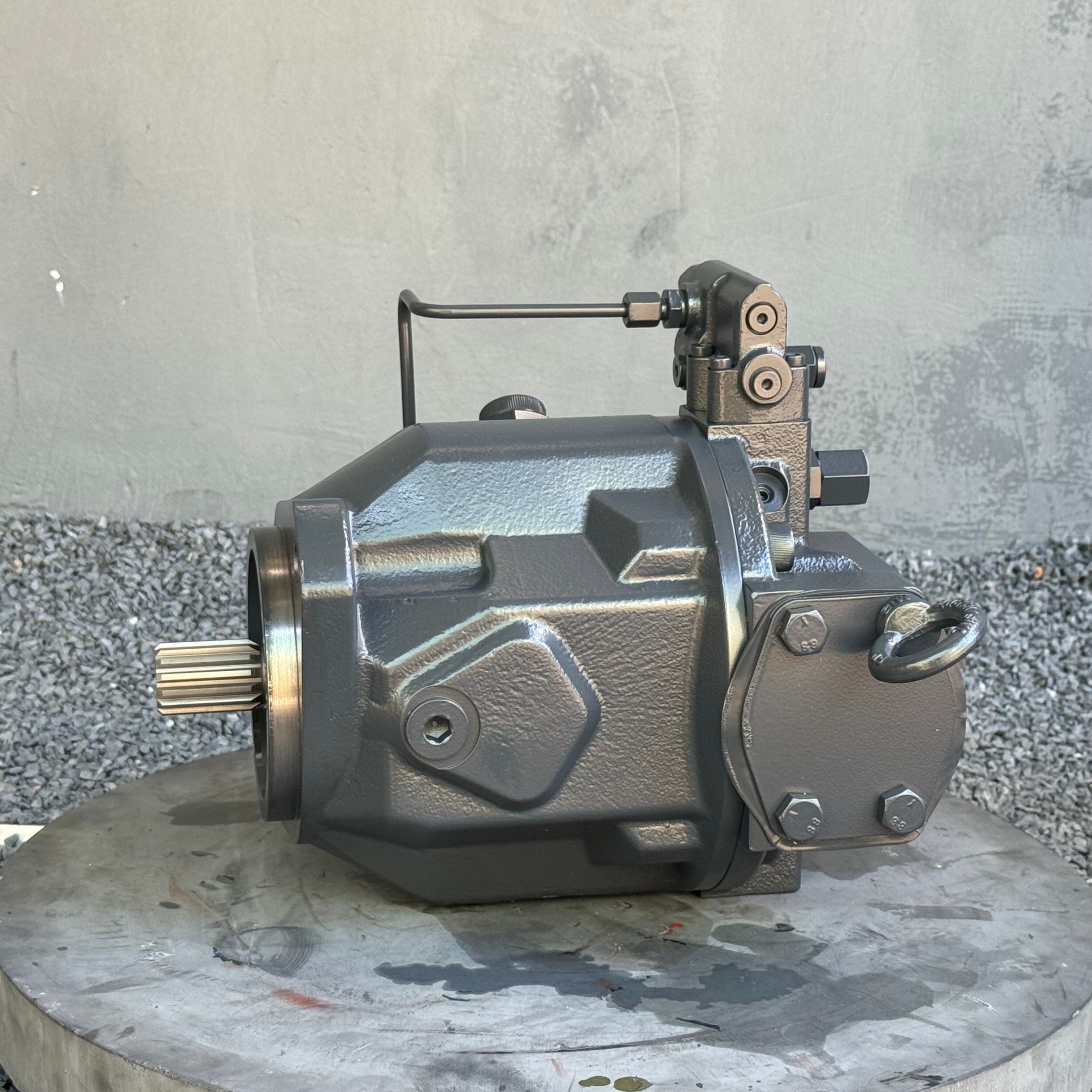

JCB 8052 8056 8060 Hydraulic Pump
  1. Basic Info
    • Item: Main hydraulic piston pump
    • PN:20/602200,20/925263
    • Fit Model: JCB 8052, 8056, 8060 mini excavator
    • Grade: Aftermarket new
    • Warranty:12 months
  2. Core Advantages
    • Produced per OEM mounting dimensions for direct bolt-on replacement
    • Precision internal parts deliver steady flow under mixed working conditions
    • High-performance sealing parts reduce hydraulic oil leakage during long operation
    • Each unit completes pressure and flow bench testing before shipment
  3. Technical Data
    • Structure: Variable displacement axial piston pump
    • Displacement:62 cc/rev
    • Max working pressure:30 MPa
    • Rated rotational speed:2500 rpm
    • Control mode: load sensing pressure compensation control
    • Seal material: heat-resistant fluororubber
    • Rotation direction: factory standard rotation
    • Function: supply power for travel, swing and working device hydraulic circuits
  4. Cross Reference
    • Interchange codes:20/602200,20/925263
  5. Service
    • Sufficient stock supports global sea & air shipment; installation guidance and after-sales technical support available
  6. FAQ
    ① Can the two part numbers replace each other?

    Yes, both part numbers match the same pump assembly and are interchangeable.

    ② Is the pump compatible with all three listed excavator models?

    Yes, it fits JCB 8052, 8056 and 8060 mini excavators.

    ③ What cases are not covered by warranty?

    Damage caused by improper installation, contaminated hydraulic oil and overload operation is excluded.

    ④ Will you provide installation guidance?

    We offer operation reminders and follow-up technical support after order confirmation.
