Nachi OEM PVD-1B-24P-11AG Hydraulic Pump | JCB OE Number: 20/925375 for Mini Excavator Replacement Parts

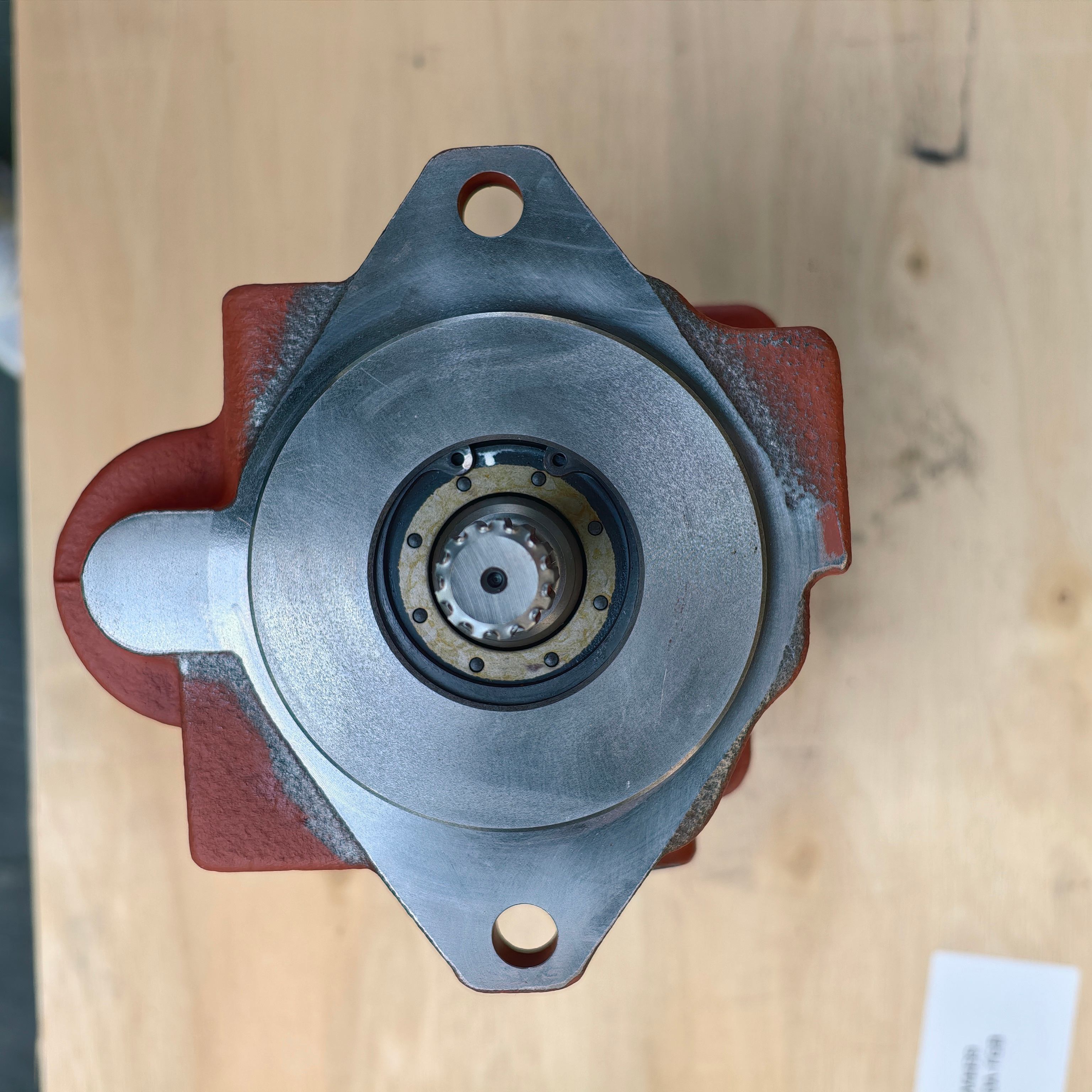

Part Name: Nachi PVD-1B-24P-11AG variable displacement axial piston main hydraulic pump

JCB OEM Part No.: 20/925375

Applicable Machine Models: JCB 8027Z, 8032Z, 8027 Z, 8032 Z, mini excavator

Product Grades: Original Nachi OEM New Unit, Fully Refurbished Pump, High-precision Aftermarket Replacement Pump

Warranty: 12 months warranty for genuine OEM pumps & refurbished pumps; 6–12 months warranty for aftermarket hydraulic pumps

Net Weight: 30 kg

Stock Status: In stock, goods will be dispatched within 3–7 working days after formal order confirmation

1. 20/925375 is the official JCB OEM part code matched exclusively with Nachi PVD-1B-24P-11AG pump. Overall structure, mounting dimensions and original hydraulic parameters are fully consistent with factory standards without mismatching problems after installation.
2. Adopts original Nachi constant power load sensing control mechanism, automatically adjusts pump displacement according to actual working load, effectively reduces idle power loss and optimizes fuel consumption performance of the whole mini excavator.
3. For refurbished pumps, all worn core components including piston shoe assembly, valve plate, swash plate, bearings and full seal kits are replaced with brand-new precision parts; calibrated via professional hydraulic test bench to maintain stable pressure output and low internal leakage during long continuous construction operation.
4. Unified mounting hole layout, oil port position and drive spline dimension support direct bolt-on replacement, no cutting, welding or extra mechanical modifiion required on equipment.
5. Equipped with high-temperature resistant, abrasion-resistant composite sealing assemblies to effectively block internal and external oil leakage under high pressure and frequent cyclic operation, prolonging the service life of the pump assembly.
6. Every finished pump undergoes strict pressure resistance test, flow calibration and sealing tightness inspection on dedied test equipment before ex-factory delivery to reach original OEM technical indiors.

Base Pump Model: Nachi PVD-1B-24P-11AG axial variable piston pump

Max system working pressure: 24.5 MPa

Control Mode: Load sensing constant power variable control

Rated operating rotational speed: 2400 rpm

Input Shaft: Standard spline matched with original engine connecting end

Rotation Direction: Original factory designated rotation direction

Function: Provides matched hydraulic power for travel system, swing motor, boom, arm and bucket hydraulic executive circuits

Applicable Equipment: JCB 8027, 8027Z, 8032, 8032Z

JCB Official OE PN: 20/925375

Original Equivalent Pump Model: Nachi PVD-1B-24P-11AG

We supply complete matched hydraulic pumps and spare parts for JCB mini excavators together with original Nachi pump assemblies. Three quality grades satisfy differentiated demands of equipment overhaul, original restoration and cost-effective daily maintenance. Standardized refurbishment process and full-process QC inspection system guarantee stable running performance of each pump unit. Sufficient spot inventory supports global sea freight and air freight transportation solutions. Professional installation guidance and long-term responsive after-sales technical support are provided for all orders.
