Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Yanmar VIO25 Final Drive Travel Motor With Reduction 172482-77300 KYB MAG-18V-190E-3 For Mini Excavator Parts
Specifications
Model Number :
VIO25
Type :
MAG-18V-190E-3
Certifiion :
2006/42/EC ISO9001
Supply Ability :
100 PCS / Months
OEM :
KYB
Warranty :
12 month
Price :
Negotiation
Part name :
Final Drive / Travel Motor With Gearbox
MOQ :
1 PCS
Appliion :
Excavator
Payment Terms :
L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,WEST UNION,PAYPAL
Packaging Details :
Wooden Case Packing
Condition :
New
Brand Name :
Belparts
Model :
VIO25
Delivery Time :
3-7 Day
Shipment :
DHL FEDEX TNT EMS UPS / Ses / Air
Place of Origin :
China
Part number :
172482-77300
Certification :
ISO9001 / 2006/42/EC
Quality :
Aftermarket High Quality
Description
1.Basic Info
  • Product Name: Final Drive Travel Motor With Reduction
  • OEM Part No: 172482-77300
  • Hydraulic Motor Model: KYB MAG‑18V‑190E‑3
  • Compatible Machine: Yanmar VIO25 Mini Excavator
  • Condition: OEM Original
  • Assembly: Complete travel unit including hydraulic motor and planetary reduction gearbox
2.Core Advantages
  • Original KYB MAG‑18V series travel motor assembly, direct replacement for factory unit
  • Integrated two‑speed travel function, adapts to working and travelling conditions for mini excavator
  • Hardened planetary gear set and floating seal structure, strong anti‑contamination performance for rough job sites
  • Pre‑tested hydraulic valve block, avoids internal leakage and early failure after installation
  • Perfect mounting dimension match, no modification required during field replacement
3.Technical Data
  • Motor Type: Axial piston travel motor with built‑in planetary reduction
  • Motor Model: KYB MAG‑18V‑190E‑3
  • Applicable Excavator Weight Class: 2.5‑3 ton mini excavator
  • Max Working Pressure: 24.5 MPa
  • Displacement: 190 cc/rev (total motor‑reducer output)
  • Two‑speed function: High speed for travelling, low speed for heavy‑load digging

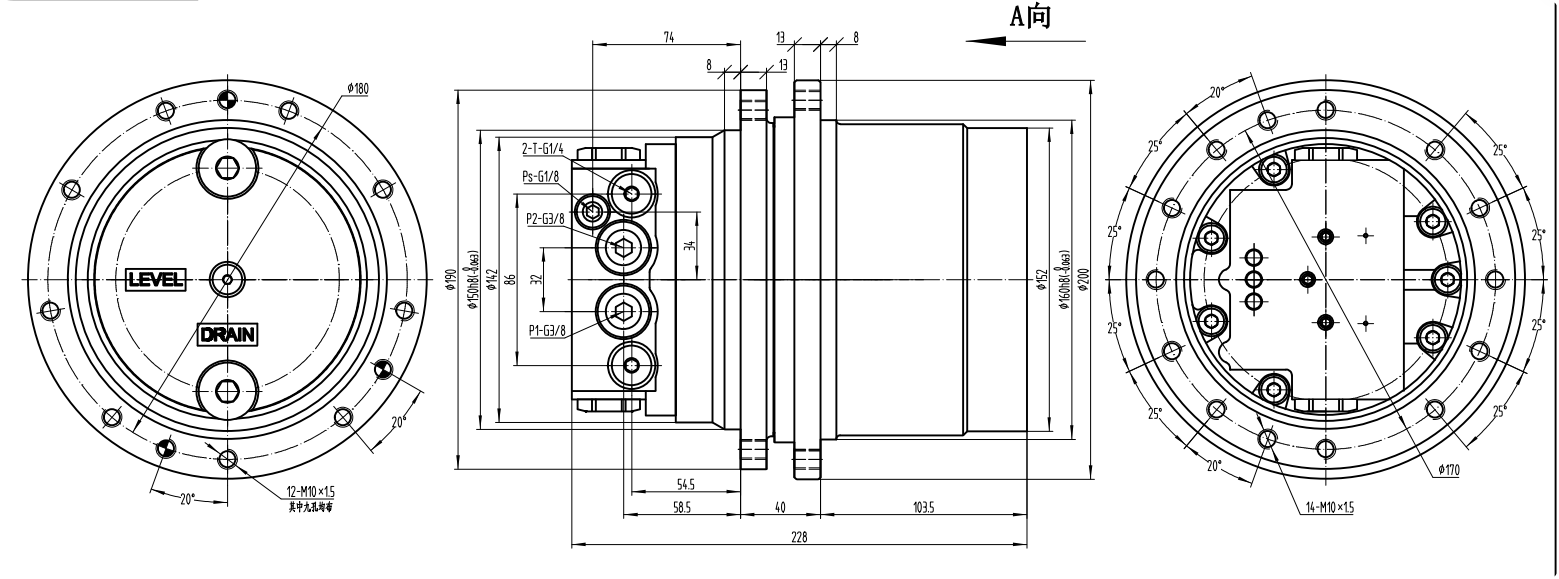

  • Main Port Size: G3/8, Drain Port: G1/4, Pilot Port: G1/4
  • Mounting Bolt Circle Diameter: 150 mm
  • Sprocket Mount Hole Count: 9 holes
  • Frame Mount Bolt Holes: 8‑14 holes
  • Max Output Torque: 2.2 kN·m
  • Max Travel Speed: 3.5‑4.2 km/h
  • Operating Oil Temperature Range: ‑20℃ ~ +110℃
  • Gross Weight: approx 36 kg
  • Sealing System: Floating face seal for track drive housing
4.FAQ

Q: Does this unit come fully assembled with gearbox?

A: Yes, complete final drive assembly including travel motor and reduction gearbox, ready for installation.

Q: Which Yanmar machines does this final drive fit?

A: Exact match for Yanmar VIO25 mini excavator, confirm part number 172482‑77300 before ordering.

Q: Can this unit be repaired locally if parts wear out?

A: Spare parts including bearings, floating seals, pistons and gear components are available for overhaul.

Q: What hydraulic oil requirement is recommended?

A: Use ISO VG46 anti‑wear hydraulic oil, keep oil cleanliness within NAS 8 class to extend service life.
