R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180
R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180
R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180
R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180
R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180
R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180
Specifications
Brand Name :
Belparts
Model Number :
R290L-7
Certifiion :
OEM
Place of Origin :
Made in China
MOQ :
1 piece
Price :
Negotiable Price
Payment Terms :
T/T, Paypal and Trade Assurance
Supply Ability :
1000pieces
Delivery Time :
1-7days
Packaging Details :
Wooden packing
Model Name :
R290L-7
Part Name :
31N8 10180
Material :
Steel
MOQ :
1PC
After-sales Services :
Online
Condition :
New
Description

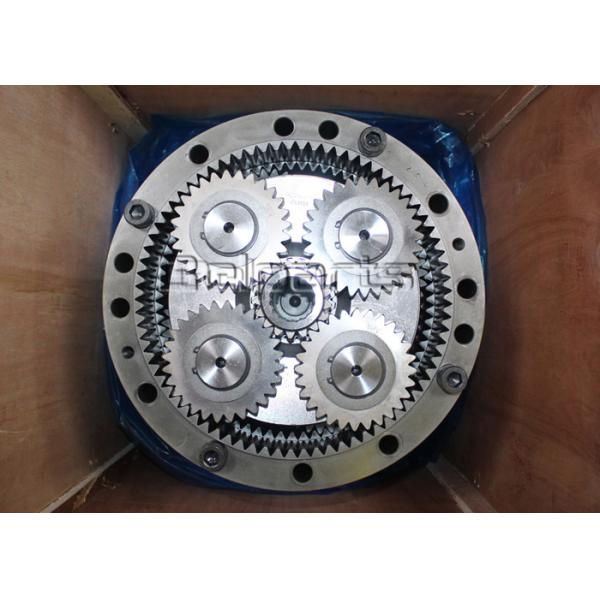

Excavator R290L-7 slewing gearbox R290 swing reduction 31N8 10180 swing gearbox

Product name R290L-7 Swing gearbox
Place of Origin: China(mainland)
Model: R290L-7
Part number: 31N8 10180
MOQ: 1 PCS
Payment term: T/T & & Paypal
Delivery time: Within 2 days after receiving the payment
Packing: Standard exporting packing or as required

R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180

R290L-7 Excavator Swing Gearbox Slewing Gear Box R290 31N8 10180

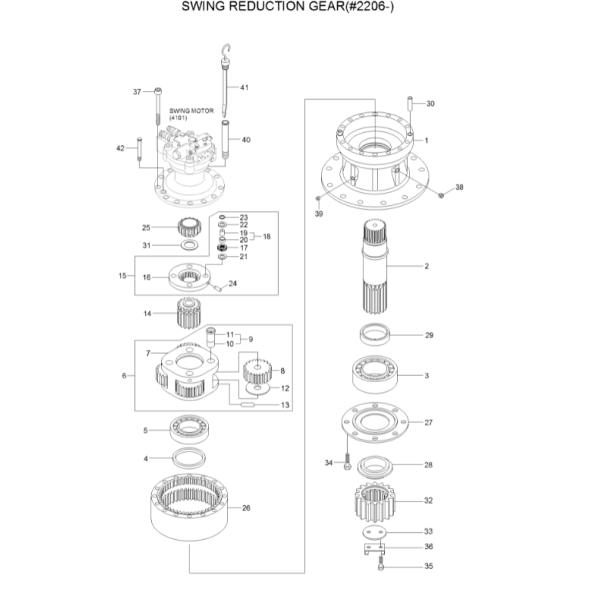

Parts on group

Pos. Part No Qty Parts name
*. @ [1] SWING MOTOR ASSY
*-2. 31N8-10180 [1] SWING REDUCTION GEAR
1. XKAQ-00427 [1] CASING
2. XKAQ-00428 [1] SHAFT-DRIVE
3. XKAQ-00117 [1] BEARING-ROLLER
4. XKAQ-00119 [1] SEAL-OIL
5. XKAQ-00120 [1] BEARING-ROLLER
6. XKAQ-00429 [1] CARRIER ASSY-2
7. XKAQ-00430 [1] CARRIER-2
8. XKAQ-00431 [4] GEAR-PLANET-2
9. XKAQ-00432 [4] PIN ASSY-2
N10. XKAQ-00433 [1] PIN-2
N11. XKAQ-00434 [1] BUSHING-2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00436 [1] GEAR-SUN,2
15. XKAQ-00437 [1] CARRIER ASSY-1
16. XKAQ-00438 [1] CARRIER-1
17. XKAQ-00439 [4] GEAR-PLANET-1
18. XKAQ-00440 [4] PIN ASSY-1
N19. XKAQ-00441 [1] PIN-1
N20. XKAQ-00079 [1] BUSHING-1
21. XKAQ-00417 [4] PLATE-SIDE-1
22. XKAQ-00416 [4] PLATE-SIDE-2
23. XKAQ-00041 [4] RING-STOP
24. XKAQ-00048 [4] PIN-SPRING
25. XKAQ-00442 [1] GEAR-SUN-1
26. XKAQ-00444 [1] GEAR-RING
27. XKAQ-00443 [1] PLATE-COVER
28. XKAQ-00445 [1] SPACER
29. XKAQ-00446 [1] RING-SPACER
30. XKAQ-00072 [2] PIN-KNOCK
31. XKAQ-00447 [1] PLATE-THRUST-3
32. XKAQ-00013 [1] GEAR-PINION
33. XKAQ-00043 [1] PLATE-LOCK
34. XKAQ-00064 [8] BOLT-HEX
35. XKAQ-00042 [2] BOLT-HEX
36. XKAQ-00292 [1] WASHER-LOCK
37. XKAQ-00448 [12] BOLT-SOCKET
38. XKAQ-00049 [1] PLUG
39. XKAQ-00066 [2] PLUG
40. XKAQ-00167 [1] PIPE-GAUGE
41. XKAQ-00449 [1] BAR-GAGE
42. XKAQ-00143 [1] AIR BREATHER ASSY
