Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Specifications
Brand Name :
Fucheng
Place of Origin :
Shandong, China
Price :
$2,212.00/sets 1-44 sets
Condition :
New
Warranty :
1 Year
Showroom Location :
None
Type :
Hydraulic Accumulators
Pressure :
hydraulics
Structure :
Standard
Weight :
68
Power :
Standard
Dimension(L*W*H) :
Standard
Product name :
Hydraulic Pump
Feature :
High Efficiency
Application :
Construction Machinery
Material :
Cast Iron
Standard :
International Standard
Color :
Customer's Request
Standard or Nonstandard :
Standanrd
Delivery time :
Payment
MOQ :
1 Pc
Payment :
T/T
MOQ :
1 Piece
Description
Product Description
Series 90 hydrostatic pumps can be applied together or combined with other products in a system to transfer and control hydraulic power.They are intended for close circuit applications.
Series 90 pumps variable displacement pumps are compact,high power density units.All models utilize the parallel axial piston/slipper concept in conjunction with a tiltable swashplate to vary the pump's displacement.Reversing the angle of the swashplate reverses the flow of oil from the pump and thus reverses the direction of rotation of the motor output.
Series 90 pumps include an intergral charge pump to provide system replenishing and cooling oil flow,as
well as control fluid flow.They also feature a range of auxiliary mounting pads to accept auxiliary hydraulic pumps for use in complementary hydraulic systems.A complete family of control options is available to suit a variety of control systems(mechanical,hydraulics,electric)
--The Series 90 - Advanced Technology Today
---7 Sizes of Variable Displacement Pumps
--Efficient axial piston design
--Proven reliability and performance
--Compact,lightweight
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Displacement (cc)
100
Input speed Minimum (rpm)
Rated (rpm)
Maximum(rpm)
500
3,300
3,650
Weight (Kg)
68
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524

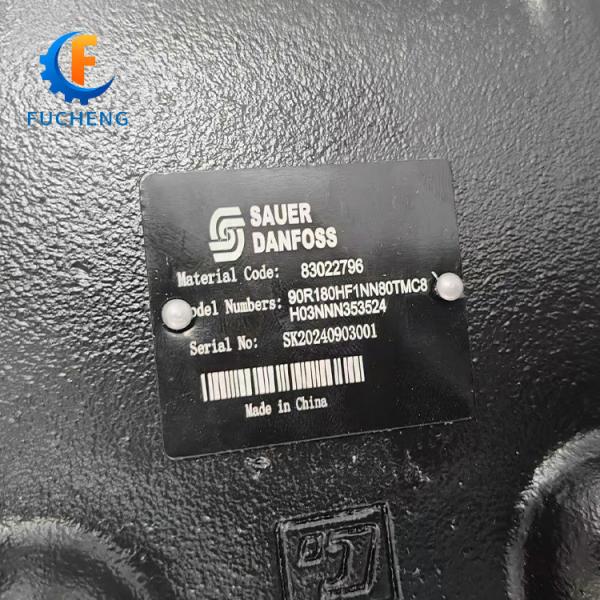

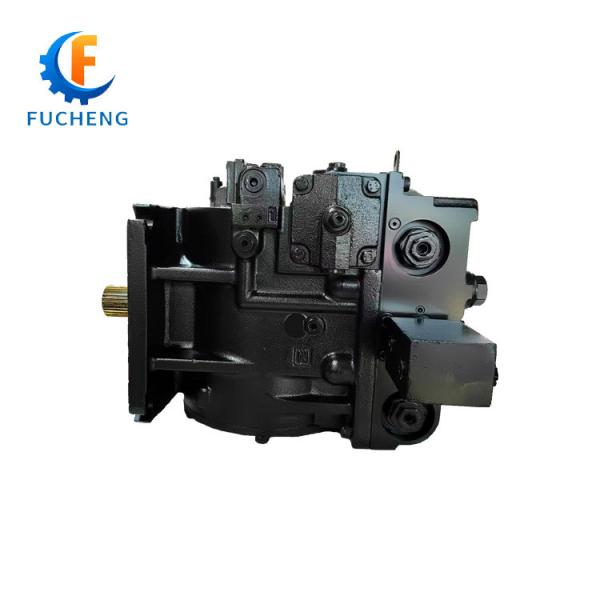

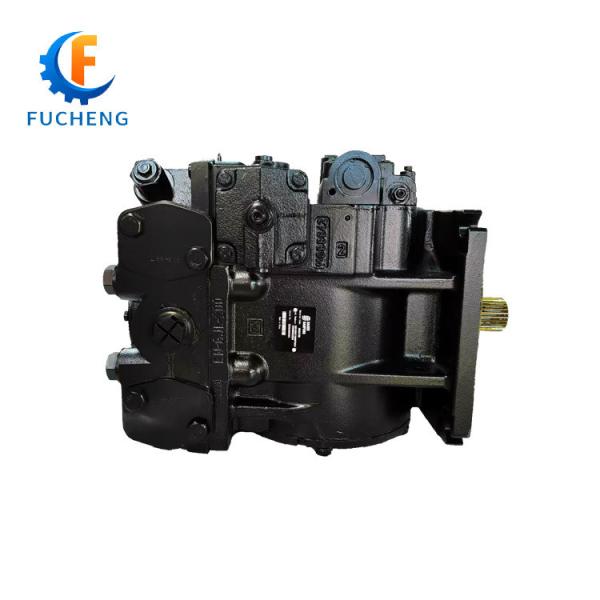

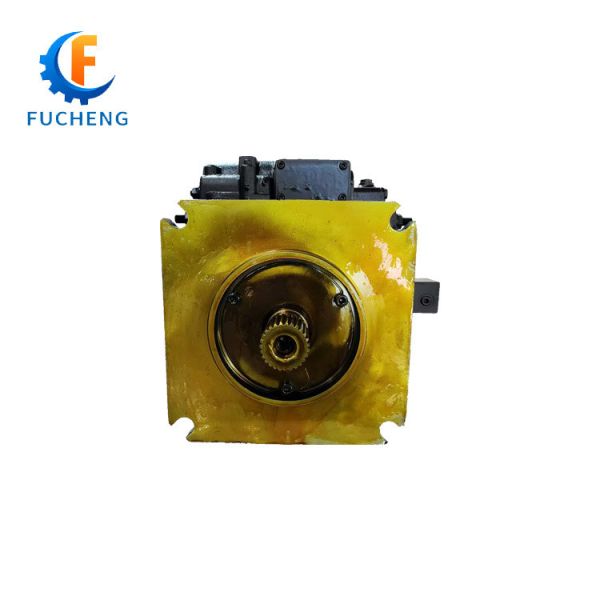

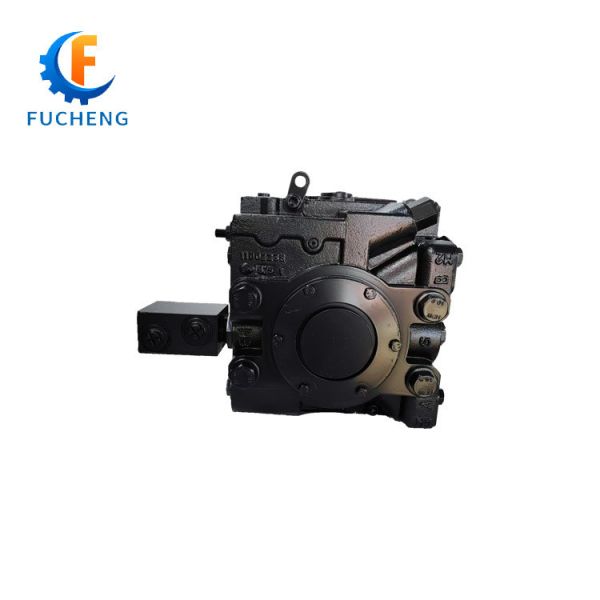

Detailed Images
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Size Information
Table of values (theoretical values, without efficiency and tolerances; values rounded)
Size
90R042
90R055
90R075
90R100
90R130
Displacement (cc)
42
55
75
100
130
Flow at rated speed(L/min)
176
215
270
330
403
Input speed maximum (rpm)
4,600
4,250
3,950
3,650
3,400
Related Products
Packing&Shipping
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
