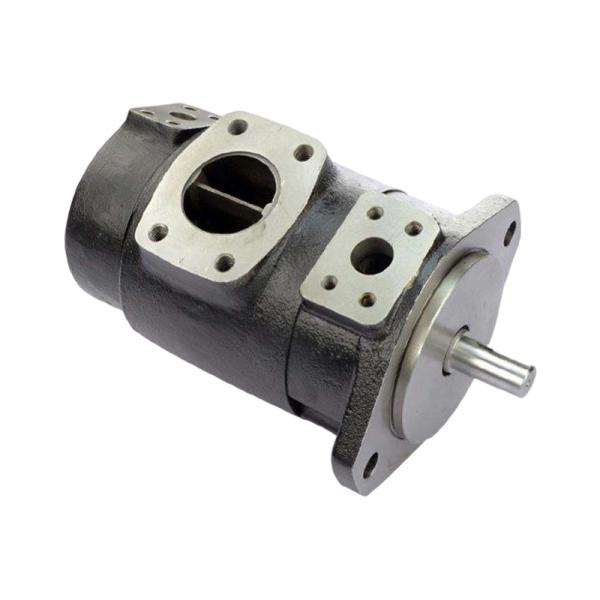

SQP Series Low Noise Double Vane Pump Double Fixed Displacement SQP21 SQP31 SQP41 SQP32 SQP42 SQP43
SQP Series Low Noise Double Vane Pump Double Fixed Displacement SQP21 SQP31 SQP41 SQP32 SQP42 SQP43
SQP Series Low Noise Double Vane Pump Double Fixed Displacement SQP21 SQP31 SQP41 SQP32 SQP42 SQP43
SQP Series Low Noise Double Vane Pump Double Fixed Displacement SQP21 SQP31 SQP41 SQP32 SQP42 SQP43
Specifications
Brand Name :
Seric
Model Number :
SQP Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

SQP Series Low Noise Double Vane Pump Double Fixed Displacement SQP21 SQP31 SQP41 SQP32 SQP42 SQP43


SQP Series Double Vane Pump Features

Quiet Operation: Designed for low-noise settings, these pumps are great for systems needing little sound, like plastic machinery, die-casting equipment, and machine tools.​


High Performance: The SQP series works well. They’re high-pressure pumps, fitting various engineering machinery uses.

​

Interchangeable Parts: The pump core uses V-series components that are fully interchangeable. This makes using them flexible and eases maintenance and repairs.

​

Reduced Pulsation: A special design cuts down pressure pulsation, lowering noise a lot and making the sound smoother.

​

Enhanced Durability: With a thicker casing, the pump is stronger and better at resisting vibration. This sturdy build also helps muffle sound better.​

Specifications

Model
 First Pump (Shaft Side) Second Pump (Pump Cover Side)
Displacement Mark Displacement at 1000min⁻¹ and 0.7MPa
(L/min)		 Maximum Operating Pressure
(MPa)		 Displacement Mark Displacement at 1000min⁻¹ and 0.7MPa
(L/min)		 Maximum Operating Pressure
(MPa)		 Maximum Speed
(min⁻¹)		 Minimum Speed
(min⁻¹)
SQP(S)21 10 32.5 17.5
*(14)		 2 7.5 14
*(14)		 1800
▲(1200)
*(1200)		 600
12 38.3 3 10.2
14 43.3 4 12.8 17.5
*(14)
15 46.7 5 16.7
17 52.5

19 59.2

21 65

SQP(S)31 17 53.3 17.5
*(14)		 6 19.2
21 66.7 7 22.9
25 79.2 8 26.2
30 95 9 28.3
32 100

35 109

38 118

SQP(S)41 30 96 17.5
*(14)		 11 35
35 109 12 37.9 16
*(14)
38 128 14 44.2 14
*(14)
42 134


50 156


60 189


SQP(S)32 17 53.3 17.5
*(14)		 10 32.5 17.5
*(14)
21 66.7 12 38.3
25 79.2 14 43.3
30 95 15 46.7
32 100

35 109

38 118

SQP(S)42 30 96 17.5
*(14)		 17 52.5
35 109 19 59.2
38 128 21 65
42 134


50 156


60 189


SQP(S)43 30 96 17.5
*(14)		 17 53.3 17.5
*(14)
35 109 21 66.7
38 128 25 79.2
42 134 30 95
42 134 32 100
50 156 35 109
60 189 38 118

*Maximum operating pressure and maximum speed for F3-SQP(S) when using phosphate ester hydraulic oil

▲Maximum speed for F11-SQP(S) when using water - glycol hydraulic oil
