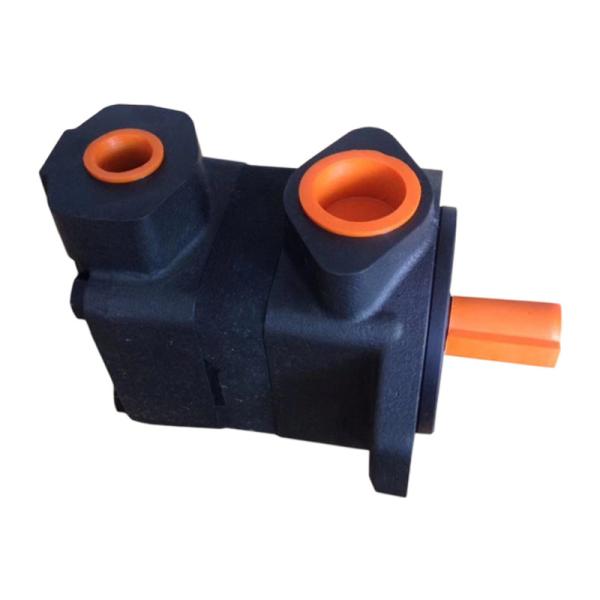

Industrial Machinery Hydraulic Vane Pump V10 Series Single Vane Pump
Industrial Machinery Hydraulic Vane Pump V10 Series Single Vane Pump
Specifications
Brand Name :
Seric
Model Number :
V Series
Certification :
CE, ISO
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
USD45.00
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
5000
Delivery Time :
1-15 days
Packaging Details :
Carton Box/Wooden Case
After Warranty Service :
Online Support
OEM :
Accept
Condition :
100% Brand-new
Quality :
High-Quality
Application :
Industrial Machinery
Selling Units :
Single item
Description

Hydraulic Vane Pump Single Pump V10 Series

Features

Seric offers the most complete line of hydraulic pumps and motors for mobile and industrial applications.

V10 Type Single Pump Operating Specifications

Series
 U.S. GPM Displ.
(cm³/r)		 Max. Operating Pressure
(MPa)		 Max. Speed
(rpm)		 Min. Speed
(rpm)
V10 1 3.3 17.5 4800 600
2 6.6 17.5 4500
3 9.8 17.5 4000
4 13.1 17.5 3400
5 16.4 17.5 3200
6 19.5 16 3000
7 22.8 14 2800

V10 Type Single Pump-Model Code

V10
 -1 P 5 P -1 C 20 R
Series Mounting Inlet Port Connections U.S. GPM Outlet Port Connections Shafts Outlet Positions Design Number Rotaiton
V10 1-2 bolt flange

6-2 bolt flange
(SAE"B")		 P-1"NPT thread
S-str.thd.		 1, 2, 3, 4, 5, 6, 7 P-1/2" NPT thd.
S-st.thd.		 1-str key
11-spline
38-spline		 (viewed from cover end of pump)

A-Opposite inlet

B-900CCW from inlet

C-In line with inlet

D-900CW from inlet		 20 (Viewed from shaft end of pump)

R-Right hand for clockwise, omit

L-left hand for counterclockwise
