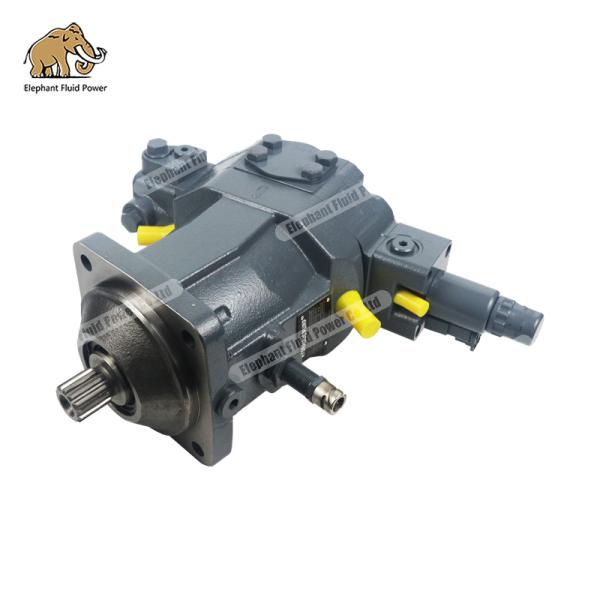

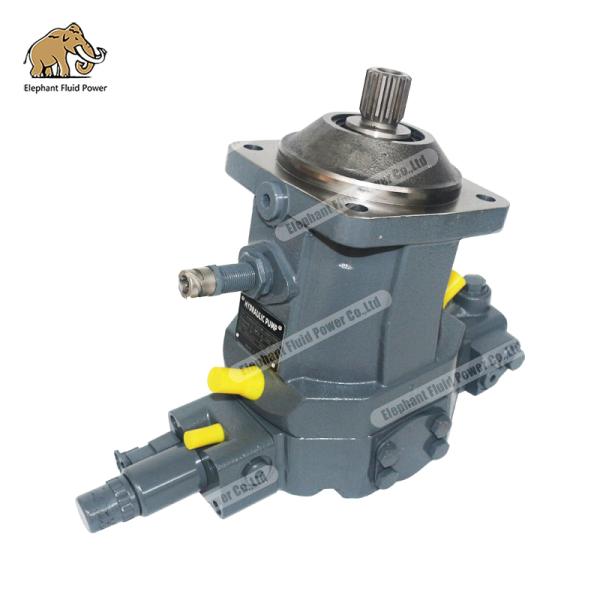

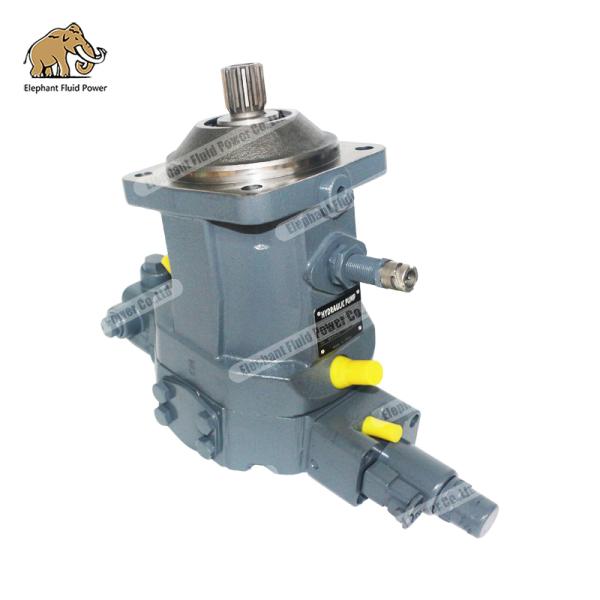

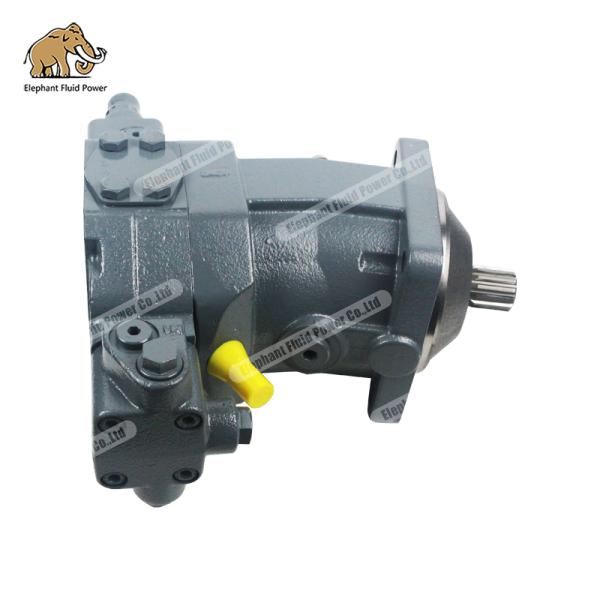

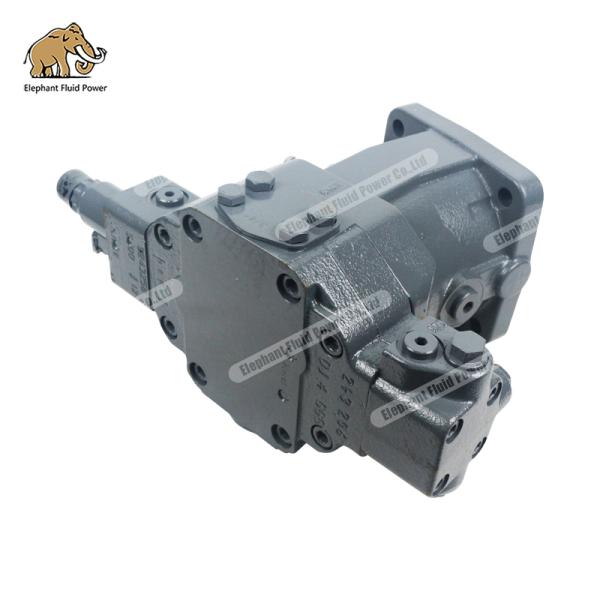

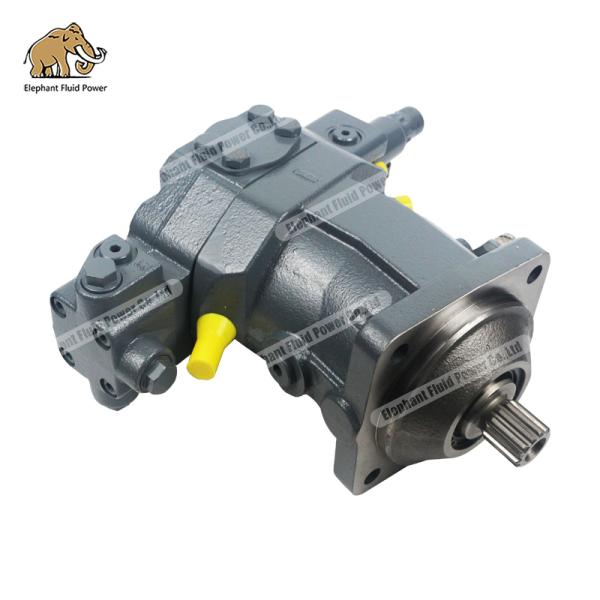

A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
A6VM55 Rexroth AA6VM55 Axial Piston Motor
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
A6VM55
Certification :
ISO,CE
Place of Origin :
China
CertifiCAATion :
ISO9001,CE
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
30000 sets per month
Delivery Time :
7 days
Packaging Details :
Cartons
Appliion :
Excavator Maintain Repair
Structure :
Axial Piston Pump
Warranty :
12 Months
Power :
Hydraulic
Lead time :
5-7 days
Service :
Offer technical support
Description

A6VM55 Rexroth AA6VM55 Axial Piston Motor


Elephant Fluid Power Co.,Ltd provides A6VM55 Rexroth AA6VM55 Axial Piston Motor,equivalent quality as original,good price,fast lead time,one year warranty since sales.


Technical data:


Variable A6VM motor with axial tapered piston rotary group of bent axial design, for hydrostatic drives in open and closed circuits
- For use in mobile and stationary applications
- The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.
- The displacement can be infinitely changed from Vg max to Vg min = 0.
- The output speed is dependent on the flow of the pump and the displacement of the motor.
- The output torque increases with the pressure differential between the high-pressure and low-pressure side and with increasing displacement.
- Wide control range with hydrostatic transmissions
- Wide selection of control devices
- Cost savings through elimination of gear shifts and possibility of using smaller pumps
- Compact, robust motor with long service life
- High power density
- Good starting characteristics
- Small swing torque


Technical Data of Brueninghaus Hydromatik Rexroth A6VM Motor

Table of values (theoretical values, without efficiency and tolerances; values rounded

Rexroth A6VM motor A6VM55 A6VM80 A6VM107 A6VM140 A6VM160 A6VM200 A6VM250
Nominal pressure p N bar 400 400 400 400 400 400 350
Maximum pressure pmax bar 450 450 450 450 450 450 400
Displacement Vg max cm³ 54.8 80 107 140 160 200 250
Speed at V g max n max rpm 4450 3900 3550 3250 3100 2900 2700
Speed at V g<V g max n max rpm 7000 6150 5600 5150 4900 4600 3600
Inlet flow at nmax q V max l/min 244 312 380 455 496 580 675
Torque Δ p = 400 bar T Nm 349 509 681 891 1019 1273 1391
Weight (approx.) m kg 26 34 47 60 64 80 90

A6VM55 Rexroth AA6VM55 Axial Piston Motor

A6VM55 Rexroth AA6VM55 Axial Piston Motor


Besides A6VM,we also can supply hydraulic pumps,hydraulic motors and pump parts,good price,oem quality ,fast shipment time,good after-sales services,is your best choice for hydraulic products replacement.


Our main products models are as followings:


Rexroth

A2F12/23/28/55/80/107/160/200/225/250/335/500

A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500

A7V28/55/80/107/160/225/250/355/500/1000

A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500

A4VSO45/71/125/180/250/500/1000

A4V40/56/71

A4VG28/40/45/50/56/71/90/125/140/180/250

A4VTG71/90

A10VSO10/16/18/28/45/63/71/85/100/140

A10VG18/28/45/63

A11VO60/75/95/130/145/160/190/250/260

Kawasaki

K3SP36C

K3V63DT/112DT/140DT/180DT/280DT

K3VL28/45/60/80/112/140/200

K3VG63/112/180/280

K7V63/100

K7VG180/265

K5V80/140/160/200

NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270

NX15

NVK45

KVC925/930/932

M2X55/63/96/120/128/146/150/170/210

M5X130/150/173/180/500

MX50/80/150/173/200/250/450/500/530/750

KAYABA

MAG150/170

KYB87

MSG18P/27P/44P/50P

MSF series

Komatsuu

HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650

Libherr

LPVD 35/45/64/75/90/100/125/140/165/225/250

FMV075/100

LMF(V)45/64/75/90/100/125/140

Toshiba

PVB80/92

PVC80/90

SG 015/02/025/04/08/12/15/17/20/25

Linder

HPV55/75/105/135/165/210/280

HPR75/90/100/130/160

MPR28/45/63/71

HMR75/105/135/165

HMF28/35/50/

BPV35/50/70/100/200

B2PV35/50/75/105/140/186

BMF35/55/75/105/140/186/260

BMV35/55/75/105/135

BPR55/75/105/140/186/260

Sauer

PV90R(L)(M)030/42/55/75/100/130/180/250

PV42-28/41/51

SPV15/18

KRR(LRR)025C/030D/038C/045D

MR(MS)070/089/227/334

Eaton

3321/3331

4621/4631

5421/5431

78461/78462

Vicker

PVE12/21/45

TA19/MFE19

PVM 018/020/045/050/057/063/074/081/098/106/131/141

PVH 57/74/98/131/141

PVB 5/6/10/15/20/29/45/90

Yuken

A10/16/22/37/40/45/56/70/90/100/125/145/220

A3H16/37/56/71/100/145/180

Parker

PVP16/23/33/41/48/60/76/100/140

PV 016/020/023/028/032/040/046/063/080/092/140/180/270

P2/3-060/075/105/145

PAVC 33/38/65/100

Hitachi

HPV050/102/105/118/135

HMGC16/32/48

HMGF35/36/38/57

Tokiwa

MKV23/33

Uchida

A10VD17/23/28/40/43/71

AP2D12/14/18/21/25/28/36/38/42

A8VO55/59/80/86/107/115/172

Nachi

YC35-6

PVD-2B-32/34/36/38/40/42/45/50

PVD-3B-54/56/60/66

PZ-6B-180/220

PVK-2B-50/505

PZ-4B-100

PVD-00B-14/16P

PVD-1B-23/28/32/34

Hawe

V30D95/140/250

V60

Italy Sam

HCV50/70/90/100/125

H1V55/75/108/160/226

H2V55/75/108/160/226

H1C55/75/108/1

A6VM55 Rexroth AA6VM55 Axial Piston Motor

Elephant Fluid Power have been in hydraulic line for 20 years,our products have been exported to more than 80 countries

we win a good reputation based on our quality and services,is a world famous hydraulic company ,we welcome all friends and partner from the world.


Look forward to your friendship and partnership.
