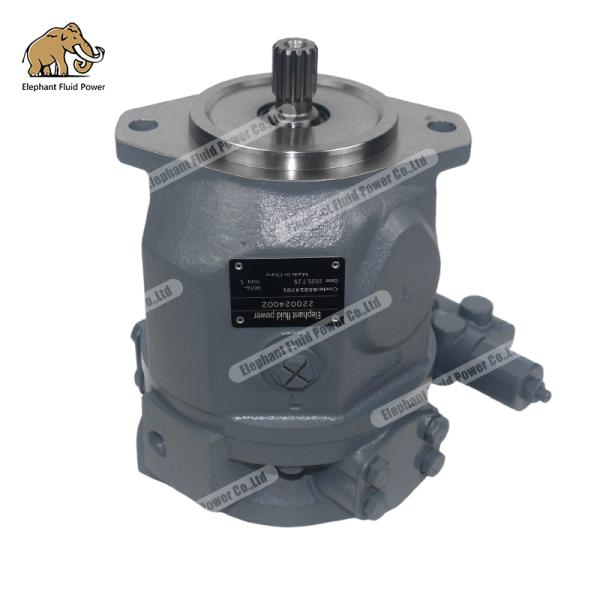

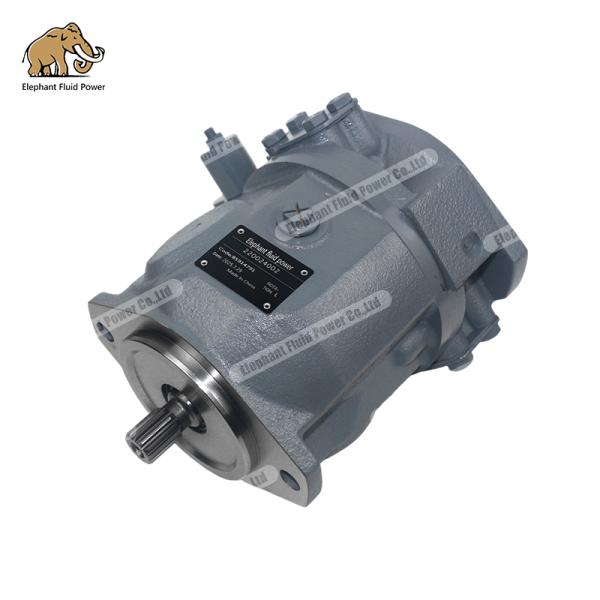

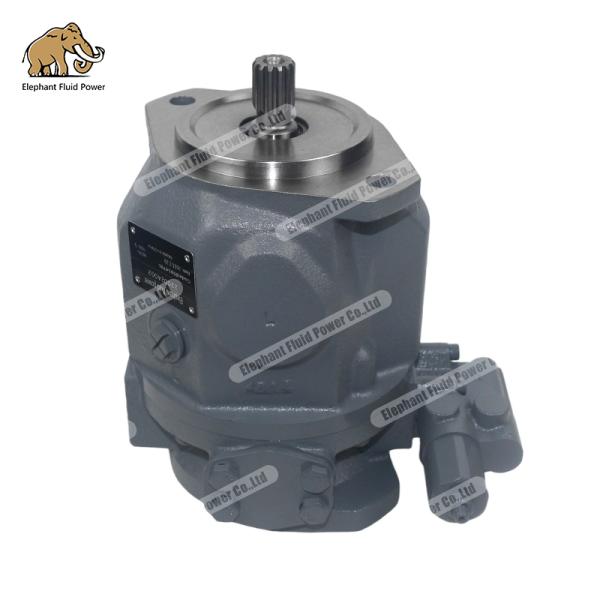

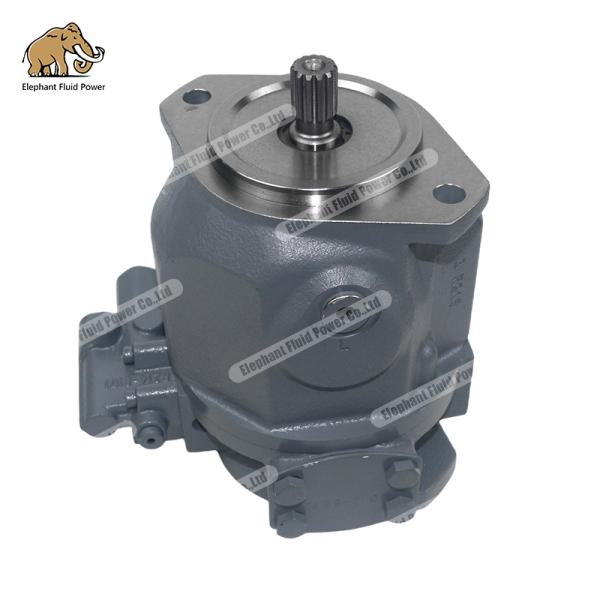

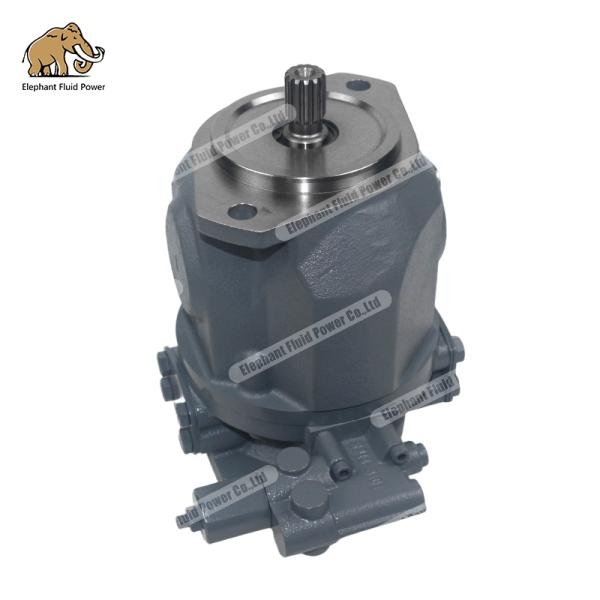

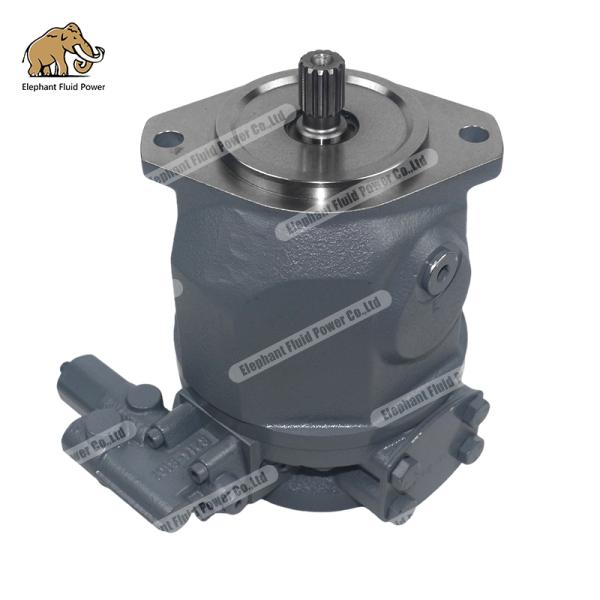

Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
10199591
Certification :
ISO,CE
Place of Origin :
China
CertifiCAATion :
ISO9001,CE
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
30000 sets per month
Delivery Time :
7 days
Packaging Details :
Cartons
Appliion :
Excavator Maintain Repair
Structure :
Axial Piston Pump
Warranty :
12 Months
Power :
Hydraulic
Lead time :
5-7 days
Service :
Offer technical support
Description


Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts


Elephant Fluid Power Cp.,Ltd supply Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts,good price,fast lead time,good after-sales service.


Technical data:


Axial piston variable pump A10VO series 31
All-purpose medium pressure pump
Size 18 … 140
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit

Features
Through drive for mounting of further pumps up to same nominal size
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Swashplate design


Axial piston variable pump A10V(S)O
DISPLACEMENT:10/18/28/45/60/63/71/85/88/100/140/180
SERIES: 31 / 32 / 52 / 53
DISPLACEMENT CONTROL TYPE: DG / DR / DFR / DFR1 / DRG / ED / DFLR
RATED PRESSURE:28Mpa(280 bar/4000PSI)


Table of values

Size 18 28 45 71 88 100 140 45 71 100 140
Version Standard High speed
Displacement
geometric, per revolution
Vg max cm³ 18 28 45 71 88 100 140 45 71 100 140
Nominal pressure
pnom bar 280 280 280 280 280 280 280 280 280 280 280
Maximum pressure
pmax bar 350 350 350 350 350 350 350 350 350 350 350
Maximum speed 1) at Vg max nnom rpm 3300 3000 2600 2200 2100 2000 1800 3000 2550 2300 2050
Flow at Vg max and nnom qV nom l/min 59 84 117 156 185 200 252 135 178 230 287
at Vg max and n = 1500 rpm qV 1500 l/min 27 42 68 107 132 150 210 68 107 150 210
Power at qV nom and pnom P kW 30 39 55 73 86 93 118 63 83 107 134
at qV 1500 and pnom P 1500 kW 12.6 20 32 50 62 70 98 32 50 70 98
Torque at Vg max and pnom M Nm 80 125 200 316 392 445 623 200 316 445 623
Weight (approx.)
m kg 12.9 18 23.5 35.2 35.2 49.5 65.4 23.5 35.2 49.5 65.4

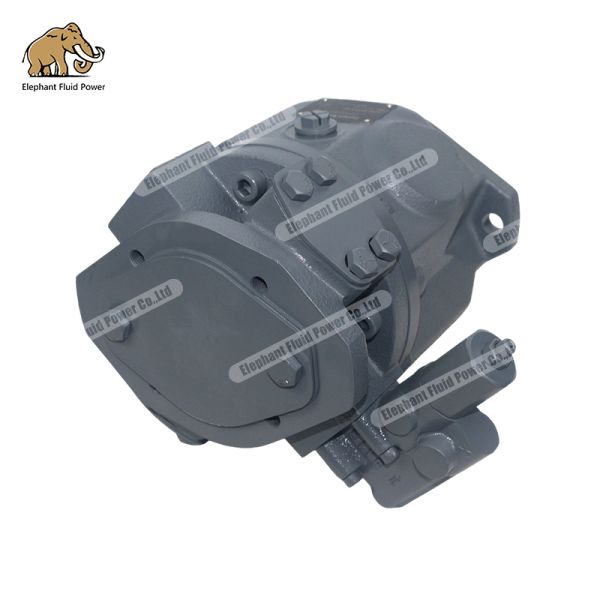

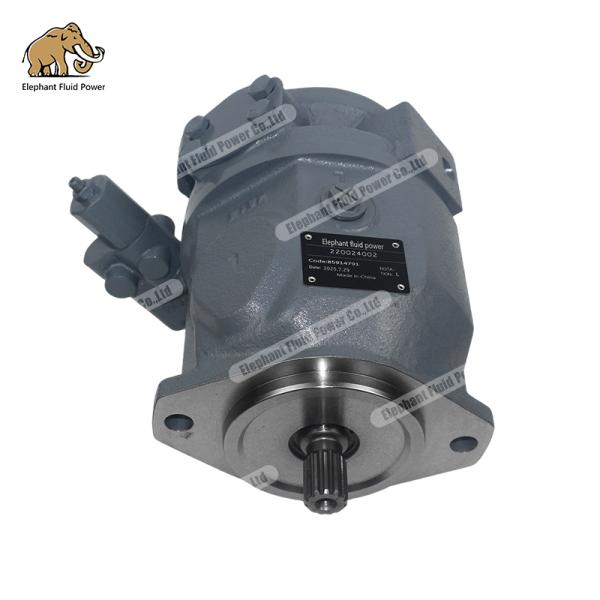

Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts

Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts


Elephant Fluid Power Co.,Ltd, is professional hydraulic pumps,hydraulic motors and gearbox reducer manufacturer for concrete pump and mixers,we have oem quality,competitive price,fast lead time,one year warranty,our main products are as followings:


CIFA
MOLDE PART NUMBER MOLDE PART NUMBER
AL A10VO28DFR/31R 243110 A2FO16/61L 909169, 2401104
A11VO130 + A11VO130 K1024790 A4VTG71 + A2FO10 24220/C
A11VO130LRDH1/10R K1024790 Pump 2 A4VTG90EP2/32R 240695
A11VO130LRDH1/10R K1024790 Pump 1 A4VTG90EP4/32R 240695/D
A11VO190LRDU2/11L K1042840 A4VTG90HW/32R 241704
A11VO60LRDS/10R 911955 A4VTG90HW/32R K1009554
A11VO95LRDH1/10R K1019963 A6VM80EZ4/63W 244227
A11VO95LRDH1/10R K1014514 AA2FM90/61W 236393
FOR COMPLETE INFO, CONTACT US FOR THE DETAILS



Putzmeister
MOLDE PART NUMBER MOLDE PART NUMBER
AL A10VO100DFLR/31R 251893008 A4VG125EP0MT1/32R 421418
AL A10VO100DFLR/31R 254517009 A4VG125EP0MT1/32R 511130
AL A10VO100DFLR/31R 293457000 A4VG125EP0MT1/32R 511126
AP A10VO100DFLR/31R 238476008 A4VG125EP2MT1/32R 421417
A10VO28DFLR/31R 408765 A4VG125HD9MT1/32R 266680002
A10VO28DFR/31R 224960007 A4VG125HD9MT1/32R 291414007
A10VO28DR/31R R910942961 A4VG125HD9MT1/32R 273904001
AL A10VO28DFR/31R 201283008 A4VG125HD9MT1/32R 262145004
AL A10VO28DR/31R 67370003 A4VG125HDMT1/32R 295237002
AL A10VO28DR/31R 265478008 A4VG140EP0MT1/32R 511137
AL A10VO28DR/31R 255200008 A4VG140EP0MT1/32R 511138
AL A10VO28DR/31R 227880003 A4VG140EP2MT1/32R 441581
AL A10VO28DR/31R 67369001 A4VG140EP2MT1/32R 440058
AF A10VO45DFR/31R 470314 A4VG140HD9MT1/32R 436149
AL A10VO45DFLR/31R 259433004 A4VG145EP0DP0X0/40N 536355
AL A10VO71DFLR/31R 226985006 A4VG180EP0MT1/32R 511206
AL A10VO71DFLR/31R 69144004 A4VG180EP0MT1/32R 511213
AL A10VO71DFR/31L 562958 A4VG180EP0MT1/32R 511205
AL A10VO71DFR/31R 479152 A4VG180EP2MT1/32R 410493
AL A10VO18DR/53R 527945 A4VG180EP2MT1/32R 442106
A11VO130LRDS/10R 267391002 A4VG180HD9MT1/32L 243691001
A11VO40DR/10R 291403005 A4VG180HD9MT1/32R 264530002
A11VO60DRS/10L 274262001 A4VG180HD9MT1/32R 291424000
A11VO60DRS/10R 273978008 A4VG180HD9MT1/32R 293609001
A11VO75DRS/10R 448039 A4VG180HD9MT1/32R 266376002
A18VLO080DRS0E/11NL 497241 A4VG180HD9MT1/32R 242870001
A18VLO080DRS0E/11NR 471216 A4VG180HD9MT1/32R 484804
A2FM16/61W 222864008 A4VG180HDMT1/32R 295238001
A2FM28/61W 495747 A4VG56EP0DMT1/32R 511119
A2FM28/61W 62215008 A4VXG90EP0MT1/32R 511123
A2FO16/61L 67925005 A4VTG90HWT/32R 415982
A2FO23/61L 495750 A7VO28DR/63L 276120002
A4FO28/32L 531191 A7VO28DR/63L 259028008
A4VG110EP0DP0X0/40NR 536356 A7VO55DRS/63L 2401159
A4VG125EP0MT1/32R 511127 AA2FO16/61L 279517007
FOR COMPLETE INFO, CONTACT US FOR THE DETAILS



SCHWING
MOLDE PART NUMBER MOLDE PART NUMBER
A11VO130LR3DH1/10R 10187679 A11VO40DR/10R 10201751
A11VO130LR3DH1/10R 10187680 A11VO40DRS/10R 10185945
A11VO130LR3DH1/10R 10200508 A11VO60DRSP/10L 10199592
A11VO130LRDH1/10R 10185016 (P1) A11VO60DRSP/10R 10199591
A11VO130 + A4FO22 10185016 A11VO95DRSP/10R 10199593
A11VO190LR3DH1/11R 10200404 A2FO12/61R 10067637
A11VO190LR3DH1/11R 98318396 A4FO22/32R 10196520
A11VO260EP2D/11R 30354499 A7VO107LR3H1/63L 10166689
A11VO40DR/10L 30361366 A7VO107LRH1/63L 10155096
A11VO40DR/10L 10201750 A2FO23/61 R 10089057
31+31+11 L 10189715 A2FO12/61L-PZB06 10089052
31+31+11 R 10185727 A2FO10 61-L-PZB 06 10089050



BTS
MOLDE PART NUMBER MOLDE PART NUMBER
55110439 55110008 55110003 58010449
55110481 55110487 55110058 58010245
55110043 55110073 55110041 58010489
55110035 55110028 55110487 58010239
55110002 55110034 58010485 58010240
55110484 55110005 58010455 58010242
55110090 55110074 55110072 55110502
55110057 55110076 58010484 58010241
55110063 55110079 58010079 58010412
A11VO40DR/10L 10201750 A2FO23/61 R 10089057
31+31+11 L 10189715 A2FO12/61L-PZB06 10089052
31+31+11 R 10185727 A2FO10 61-L-PZB 06 10089050



EVERDIGM & HYDRAULIC MOTOR
MOLDE PART NUMBER MOLDE PART NUMBER
401-00177A A4VG125 OMH500 OMH750
401-00178A A4VG125 BMER475 BMER750
H2080204 A11V040 OMP200 ...

Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts

Hydraulic Pump A10vo28 220024002 for Concrete Pump Spare Parts

Competitive Advantage



1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries


2. 100% replace with Original


3. Fast delivery time


4.Top quality with good price


5. Professional technicians and After-sales service

6. Complete models Available

Our company has rich experience in repairing various imported and domestic hydraulic components such as plunger pumps, motors, reducers and so on. The company has advanced hydraulic pump test benches, and is equipped with professional hydraulic system engineers, maintenance engineers have rich practical maintenance experience. Products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, environmental protection and other hydraulic machinery. Covers construction machinery, construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, environmental protection and other fields. The company has flexible mechanism, good reputation, good service and reliable product quality.
