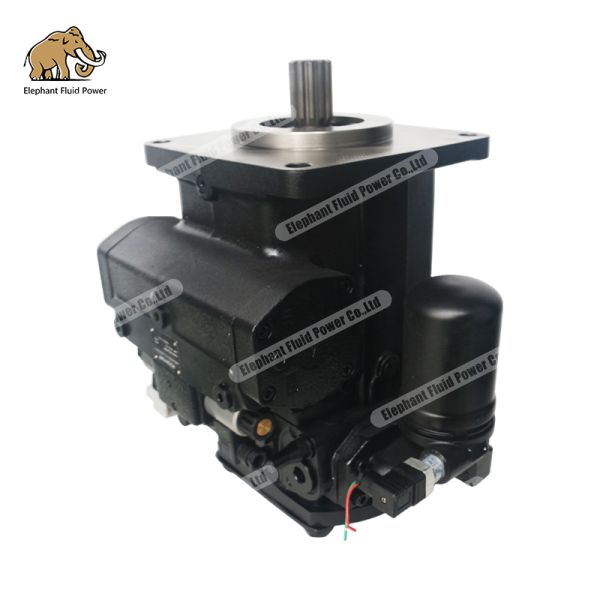

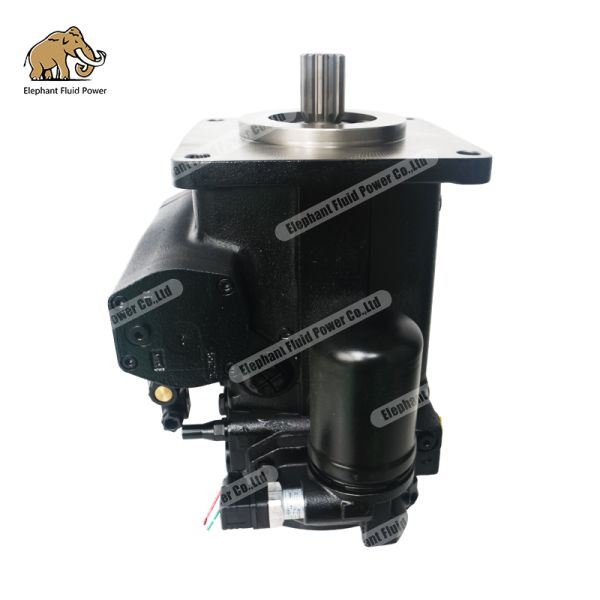

Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair
Specifications
Brand Name :
Elephant Fluid Power
Model Number :
536356
Certification :
ISO,CE
Place of Origin :
China
Certifiion :
ISO9001
MOQ :
1 Set
Price :
Elephant Fluid Power
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
500000 sets per week
Delivery Time :
5-8 days
Packaging Details :
Carton box or wooden
Material :
Iron Cast
Appliion :
Construction machine repair
Interchange :
100%
Quality :
As original
Service :
After-sales service
Variety :
Plenty
Description

Rexroth A4VG180 Variable Axial Piston Pump Of Swashplate Design


Elephant Fluid Power Co.,Ltd makes Rexroth A4VG180 Variable Axial Piston Pump Of Swashplate Design ,good quality,best price,fast lead time,good after-sales services.one year warranty .


Technical data:


Size

28

40

56

71

90

125

180

250

Displacement

variable pump

Vgmax

cm3

28

40

56

71

90

125

180

250

boost pump (at p = 20 bar)

VgSp

cm3

6.1

8.6

11.6

19.6

19.6

28.3

39.8

52.5

Speed

maximum at Vgmax

nmaxcontinuous

rpm

4250

4000

3600

3300

3050

2850

2500

2400

limited maximum

nmax limited

rpm

4500

4200

3900

3600

3300

3250

2900

2600

intermittent maximum

nmax interm.

rpm

5000

5000

4500

4100

3800

3450

3000

2700

minimum

nmin

rpm

500

500

500

500

500

500

500

500

Flow

at nmax continuous and Vg max

qv max

l/min

119

160

202

234

275

356

450

600

Power

at nmax continuous and Vg max p = 400 bar

Pmax

kW

79

107

134

156

183

237

300

400

Torque
at Vg max

p = 400 bar

Tmax

Nm

178

255

356

451

572

795

1144

1590

p = 100 bar

T

Nm

44.5

63.5

89

112.8

143

198.8

286

398

Moment of inertia (of the turning parts)

J

kgm2

0.0022

0.0038

0.0066

0.0097

0.0149

0.0232

0.0444

0.0983

Angular acceleration, max.

rad/s2

38000

30000

24000

21000

18000

14000

11000

6700

Speed variation, max.

rpm

103

81

72

69

64

55

50

34

Rotary stiffness

shaft end S

Nm/rad

31400

69000

80800

98800

158100

218300

244500

354500

shaft end T

Nm/rad

-

-

95000

120900

-

252100

318400

534300

shaft end A

Nm/rad

-

79600

95800

142400

176800

256500

-

-

shaft end Z

Nm/rad

32800

67500

78800

122800

137000

223700

319600

624200

shaft end U

Nm/rad

50800

-

-

107600

-

-

-

-

Filling capacity

V

L

0.9

1.1

1.5

1.3

1.5

2.1

3.1

6.3

Weight approx.(without through drive)

m

kg

29

31

38

50

60

80

101

156


Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair

Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair

About us


Elephant fluid power supply hydraulic pumps,hydraulic motors and pump parts,our quality is equivalent as original,good price,fast lead time,

good after-sales services,is your first choice for hydraulic replacement.


Our main products models are as followings:


Rexroth

A2F12/23/28/55/80/107/160/200/225/250/335/500

A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500

A7V28/55/80/107/160/225/250/355/500/1000

A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500

A4VSO45/71/125/180/250/500/1000

A4V40/56/71

A4VG28/40/45/50/56/71/90/125/140/180/250

A4VTG71/90

A10VSO10/16/18/28/45/63/71/85/100/140

A10VG18/28/45/63

A11VO60/75/95/130/145/160/190/250/260

Kawasaki

K3SP36C

K3V63DT/112DT/140DT/180DT/280DT

K3VL28/45/60/80/112/140/200

K3VG63/112/180/280

K7V63/100

K7VG180/265

K5V80/140/160/200

NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270

NX15

NVK45

KVC925/930/932

M2X55/63/96/120/128/146/150/170/210

M5X130/150/173/180/500

MX50/80/150/173/200/250/450/500/530/750

KAYABA

MAG150/170

KYB87

MSG18P/27P/44P/50P

MSF series

Komatsuu

HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650

Libherr

LPVD 35/45/64/75/90/100/125/140/165/225/250

FMV075/100

LMF(V)45/64/75/90/100/125/140

Toshiba

PVB80/92

PVC80/90

SG 015/02/025/04/08/12/15/17/20/25

Linder

HPV55/75/105/135/165/210/280

HPR75/90/100/130/160

MPR28/45/63/71

HMR75/105/135/165

HMF28/35/50/

BPV35/50/70/100/200

B2PV35/50/75/105/140/186

BMF35/55/75/105/140/186/260

BMV35/55/75/105/135

BPR55/75/105/140/186/260

Sauer

PV90R(L)(M)030/42/55/75/100/130/180/250

PV42-28/41/51

SPV15/18

KRR(LRR)025C/030D/038C/045D

MR(MS)070/089/227/334

Eaton

3321/3331

4621/4631

5421/5431

78461/78462

Vicker

PVE12/21/45

TA19/MFE19

PVM 018/020/045/050/057/063/074/081/098/106/131/141

PVH 57/74/98/131/141

PVB 5/6/10/15/20/29/45/90

Yuken

A10/16/22/37/40/45/56/70/90/100/125/145/220

A3H16/37/56/71/100/145/180

Parker

PVP16/23/33/41/48/60/76/100/140

PV 016/020/023/028/032/040/046/063/080/092/140/180/270

P2/3-060/075/105/145

PAVC 33/38/65/100

Hitachi

HPV050/102/105/118/135

HMGC16/32/48

HMGF35/36/38/57

Tokiwa

MKV23/33

Uchida

A10VD17/23/28/40/43/71

AP2D12/14/18/21/25/28/36/38/42

A8VO55/59/80/86/107/115/172

Nachi

YC35-6

PVD-2B-32/34/36/38/40/42/45/50

PVD-3B-54/56/60/66

PZ-6B-180/220

PVK-2B-50/505

PZ-4B-100

PVD-00B-14/16P

PVD-1B-23/28/32/34

Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair

Rexroth A4VG180 Variable Axial Piston Pump with Iron Cast Construction and 180 Displacement for Construction Machine Repair

With 20 years of experience in the hydraulic industry, our products have been exported to more than 80 countries. We have built a strong reputation based on quality products and excellent service, becoming a world-renowned hydraulic company.

We welcome partnerships and friendships from around the world.
