Specifications
Brand Name :
HAOXIANG
Model Number :
DSL2-5
Certification :
CE、ISO
Place of Origin :
Guangdong, China
MOQ :
1 unit
Price :
USD3800-USD6900
Payment Terms :
T/T
Supply Ability :
1500 Units Per Year
Delivery Time :
7-15 days
Packaging Details :
Naked packaging
Lifting Mechanism :
Hydraulic
Lifting Height :
7m
Floor Height :
1-2th Floor/Customizable
Color :
White/Customizable
Surface Treatment :
Anti-Rust Paint
Pit Foundation Depth :
150–300mm
Description
4-Level 12-Meter Large Goods Elevator – Tailored Outdoor Heavy-Duty Freight Lift White warehouse use
Technical Parameters
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30
Product Overview
Our freight lifts are engineered for commercial use, focusing on efficient product transport. These adaptable lifts work well in various locations—hotels, storage rooms, auto shops, and supermarkets—facilitating easy freight movement between floors. They offer customizable features: adjust voltage, platform size, travel range, load capacity, and entry/exit direction, plus optional safety rails. Minimal site prep is needed, and installation is hassle-free.
Key Benefits
  • Powerful Hydraulic Mechanism: A sturdy hydraulic system delivers steady, uniform vertical movement for heavy loads, with precise control.
  • Enhanced Cargo-Carrying Capacity: Thanks to reinforced lifting elements, large goods are moved effortlessly, optimizing logistics workflows.
  • Weather-Proof Performance: Sealed parts and a durable frame ensure reliable operation in any environment.
  • Comprehensive Safety Tools: Emergency stops, barrier gates, and overload detectors safeguard both operators and freight.
  • Space-Saving Vertical Design: A slim vertical structure frees up floor area while maximizing upward storage space.

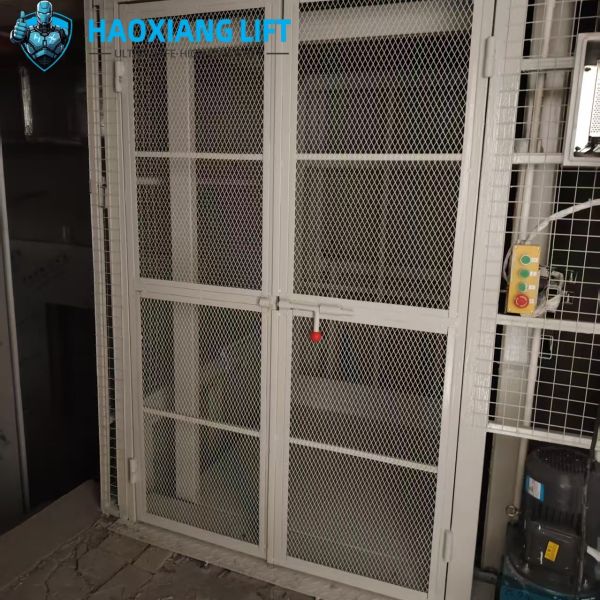

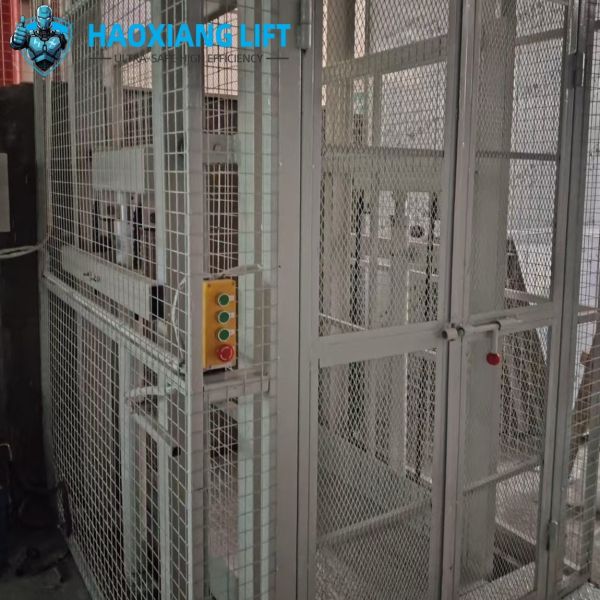

Product Images
2-Level 7-Meter Large Goods Elevator – Tailored Outdoor Heavy-Duty Freight Lift White warehouse use 2-Level 7-Meter Large Goods Elevator – Tailored Outdoor Heavy-Duty Freight Lift White warehouse use 2-Level 7-Meter Large Goods Elevator – Tailored Outdoor Heavy-Duty Freight Lift White warehouse use
About Our Company
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.

Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Armed with cutting-edge manufacturing technology and strict quality control protocols, we've positioned ourselves as a benchmark in the sector--recognized for precision engineering and top-tier operational performance. Our wide-ranging service network includes 45 professional installation teams, backing more than 40,000 corporate clients across the country.
