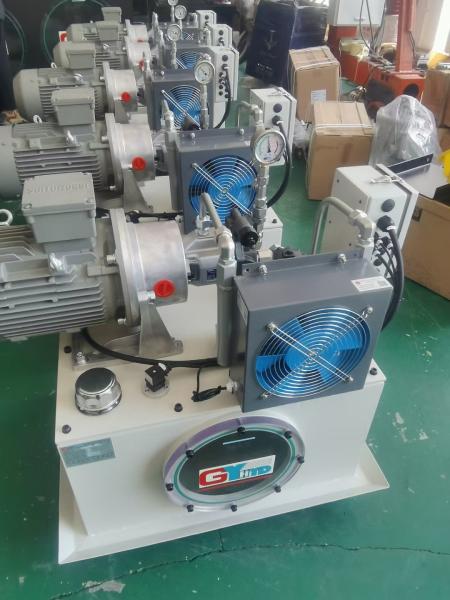

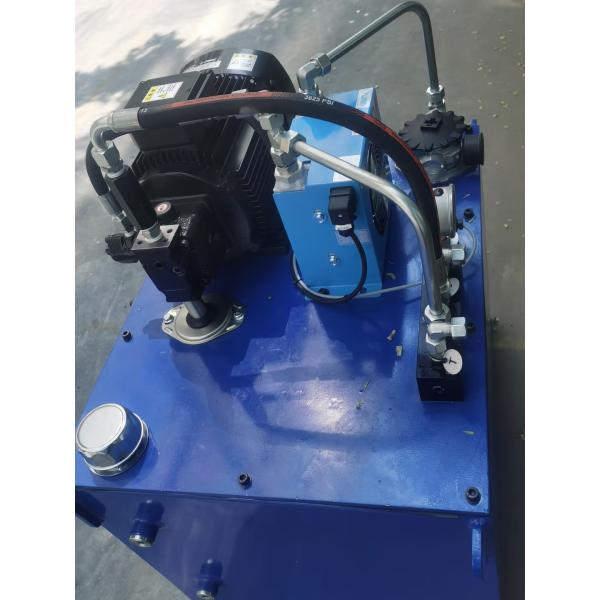

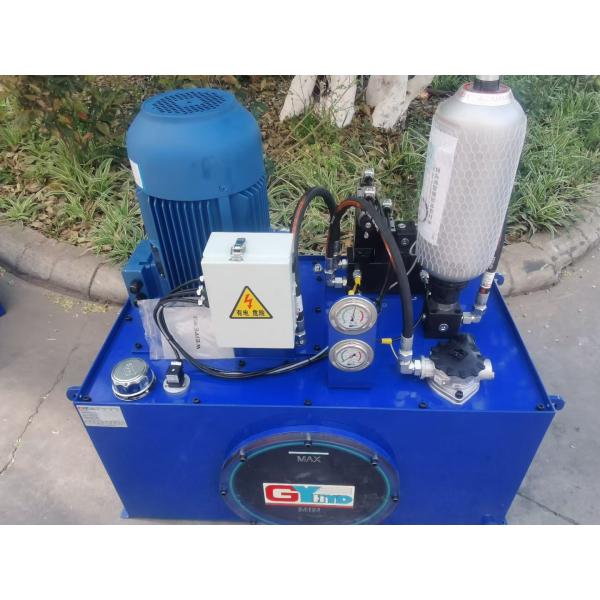

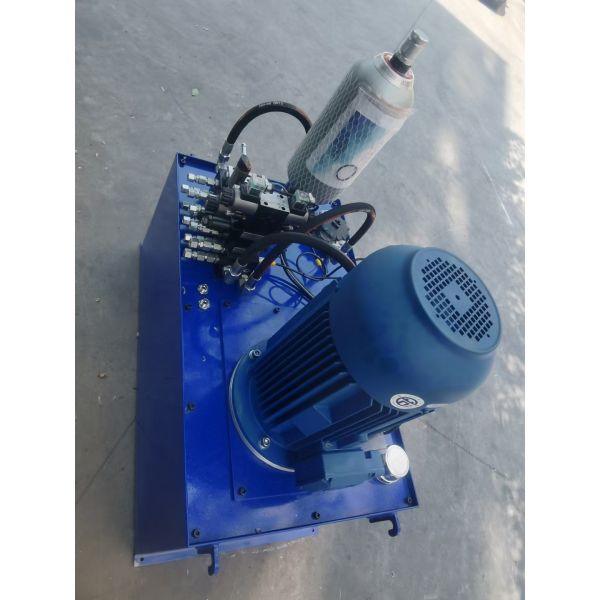

Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve
Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve
Specifications
Overall Length :
200mm
For Pipe Size :
1/2 in
Material :
Steel, Customized
Type :
Telescopic Cylinder
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Rod Diameter :
customized
Brand Name :
Guoyue
Certification :
CE
Model Number :
customized
Packaging Details :
Standard Export Package
Delivery Time :
12~60 days depends on products type
Payment Terms :
T/T
Supply Ability :
2500 Ton/Tons Per Year
Surface Treatment Of Piston Rod :
hard chrome plated
Product name :
Hydraulic Cylinder
Outer Tube Diameter :
customized
Inner Tube Diameter :
customized
Description
OEM Vertical Hydraulic Station AC220V/380V/460V New High-Pressure Hydraulic Power Assembly With Valve
Product Specifications
Attribute Value

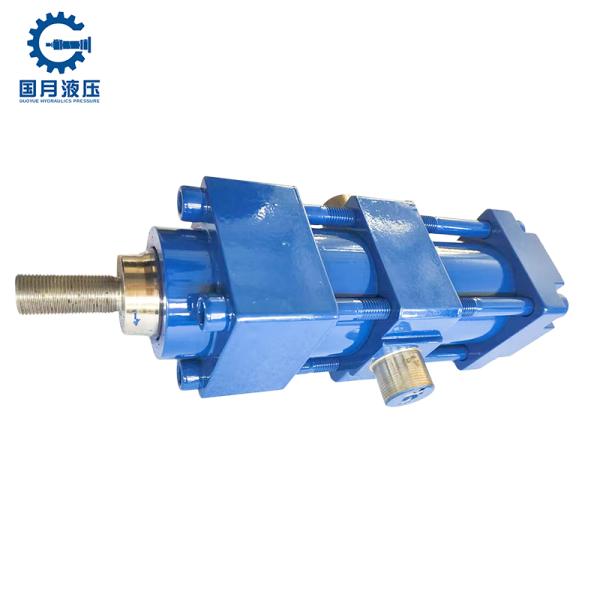

Product name Hydraulic Cylinder
Rod Diameter Customized
Outer Tube Diameter Customized
Inner Tube Diameter Customized
Overall Length 200mm
Type Telescopic Cylinder
Material Steel, Customized
Surface Treatment Of Piston Rod Hard chrome plated
For Pipe Size 1/2 in
Premium Quality Hydraulic Cylinders - Quality Assurance
  • Internals: Cylinder barrel adopts GUOYUE EU/US metallurgical standard CD250 structure. Barrel material: 45#, 42CrMo, or 27SiMn. Bore honed to H8 precision with surface roughness Ra<0.4μm. Heads, base, trunnions, and pistons are exclusively made of 45# steel.
  • Buffering: Multiple buffering options including fixed and floating buffer structures to ensure effective deceleration across various pressures and speed ranges.
  • Welding: 100% ultrasonic impact treatment applied to all pressure-bearing and load-critical welds. This eliminates weld stress (removal rate ≥90%) and significantly enhances weld fatigue strength.
  • Sealing: All cylinders exclusively use premium imported seals from Sweden Trelleborg, Germany Merkel, and GP.
  • Testing & Certification: Factory testing strictly complies with GB/T15622-2005 standards and internal premium standard Q/GAKY014-2023. Includes provision of factory test reports and product qualification certificates.
  • Warranty: One-year warranty from shipment date with free repair or replacement for defects arising from design or manufacturing.
Key Advantages
  • Space Efficiency: Vertical design minimizes footprint in crowded facilities.
  • Global Voltage Flexibility: Ready for 220V/380V/460V power grids.
  • High-Pressure Stability: Engineered for consistent performance under heavy loads.
  • Integrated Valve System: Pre-assembled valves ensure precise flow/pressure control and leak-free operation.
  • Energy & Noise Reduction: Efficient pumps and compact layout lower power consumption and vibration.
  • Industrial Durability: Robust materials resist dust, moisture, and thermal stress.
  • Easy Maintenance: Accessible components simplify servicing.
  • OEM Custom Support: Tailored solutions for specific pressure, flow, and environmental needs.
Additional Specifications
System Pressure Customized
System Flow Rate Customized
Motor Power Customized
Electric Voltage DC/AC, Customized
Frequency Customized
Mounting Type Vertical, Horizontal, Side Mounting
Structure Of Oil Tank Round, Square, as customized
Oil Tank 3L-1000L, As customized
Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve Vertical Hydraulic Station AC 220V 380V 460V High Pressure Hydraulic Power Assembly With Valve
Company Information

Location: Jiangsu, China

Established: 2022

Markets Served: Domestic Market (40%), Africa (10%), North America (10%), South America (8%), Southeast Asia (6%), Western Europe (5%), Eastern Europe (5%), Mid East (5%), Central America (5%), Eastern Asia (2%), Oceania (2%), Northern Europe (1%), South Asia (1%)

Employees: 51-100

Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Product Offerings

Hydraulic cylinders, single-acting hydraulic cylinders, double-acting hydraulic cylinders, construction machinery hydraulic cylinders

Why Choose Us

Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd., with a registered capital of 50 million yuan, is a private technology enterprise that integrates research, design, development, production, operation, and service.

Services Provided
  • Delivery Terms: FOB
  • Payment Currency: USD, EUR
  • Payment Type: T/T
  • Languages Spoken: English, Chinese
