Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Specifications
Brand Name :
Guoyue
Place of Origin :
Jiangsu, China
MOQ :
1 piece
Price :
USD1,000-10000/pieces
Certification :
iso
Model Number :
customized
Packaging Details :
Standard Export Package
Delivery Time :
12~60 days depends on products type
Payment Terms :
T/T
Supply Ability :
2500 Ton/Tons Per Year
Product name :
Hydraulic Cylinder
Pressure :
1MPa
Weight :
80
Power :
25MPa
Dimension(L*W*H) :
780*170*170mm
Rod Diameter :
70mm
Maximum Stroke :
customized
Outer Tube Diameter :
125mm
Inner Tube Diameter :
100mm
Overall Length :
customized
Description

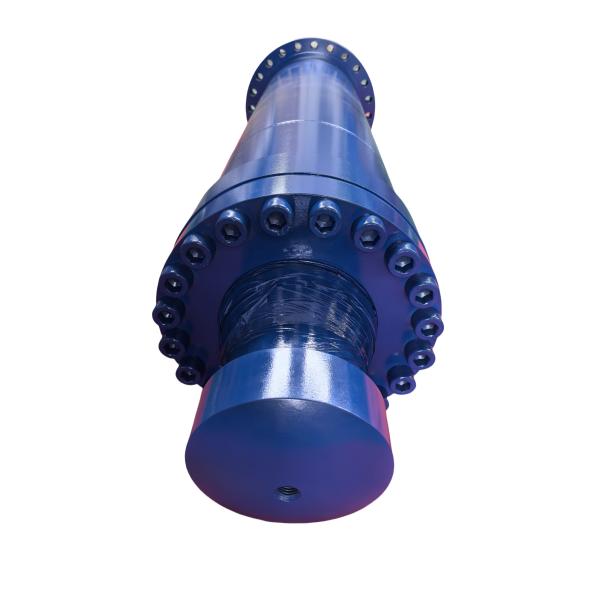

Oem Quick-Install Hydraulic Cylinder for Emergency Repair and Replacements Construction Machinery Good Hydraulic Cylinders – We Make Sure Inside Parts
The tube follows GUOYUE CD250 style.
Tube steel can be 45#, 42CrMo, or 27SiMn.
Hole is ground to H8 and feels smooth, Ra under 0.4 μm.
Head, base, ears, and piston are only 45# steel.
We do not use cast iron or cast steel. Slow-Down Parts
You can pick fixed bumpers or floating bumpers so the rod slows down safe at any speed or load. Welds
We hit every heavy-load weld with ultrasound.
This takes away most of the stress and makes the weld last longer. Seals
We only use top seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany).
We do not use local seals. Checks
Each cylinder is tested to GB/T15622-2005 and our own Q/GAKY014-2023.
You get a test sheet and a pass paper. Promise
We give one year cover from ship date.
If it breaks because of how we made it, we fix or swap it for free.
This cylinder is strong. It uses thick steel and hard rod. It does not bend. The seal keeps oil in, no leak. It has many tubes that slide out one by one. It lifts high but stays short Advantages: She’s the quick fix that keeps your construction machinery running smoothly. Custom-built for emergency repairs, this quick-install hydraulic cylinder slides into place like a well-loved tool—no shims, no swearing. Designed for rapid installation and replacement, it minimizes downtime and keeps your equipment moving . High-grade seals and a robust design ensure it withstands the rigors of construction, whispering, “I’ve got this,” every time it’s called into action . Application Scenarios: Picture a construction site at dawn: a critical piece of machinery breaks down, but this quick-install cylinder is swapped in within hours, getting the excavator back to work . Or a remote road project where time is tight and every minute counts—this cylinder ensures the loader is up and running without delay . From emergency repairs to routine replacements, it’s the quiet hero that keeps construction moving forward.
Application
Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.
Seal
Parker, Merkel, NOK, Hallite,etc.
Paint
Red, Grey, Yellow, Black, etc.
Material
St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certificate
ABS, Lloyds, SGS, etc.
Package
Bubble-wrap packing, then in wooden case.
Color
choose the color according to customer requirement
Core components
Bearing,Pressure vessel,Pump
Is it a standard part?
Nonstandard
Structure
Piston Type, Plunger Type, Telescopic Type,
Power
Hydraulic & Pneumatic
Brand
Guoyue
Sample
Available
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa



Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa
Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa

Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa


Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa


Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa


Quick-Install Hydraulic Cylinder for Construction Machinery 25MPa








1. who are we?
We are based in Jiangsu, China, start from 2022,sell to Domestic Market(40.00%),Africa(10.00%),North America(10.00%),South
America(8.00%),Southeast Asia(6.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Central America(5.00%),Eastern
Asia(2.00%),Oceania(2.00%),Northern Europe(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hydraulic cylinder,hydraulic cylinder,Single-acting hydraulic cylinder,Double-acting hydraulic cylinder,construction machinery
hydraulic cylinder

4. why should you buy from us not from other suppliers?
Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd., with a registered capital of 50 million yuan, is a private
technology enterprise that integrates research, design, development, production, operation, and service. The company specializes
in the

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
