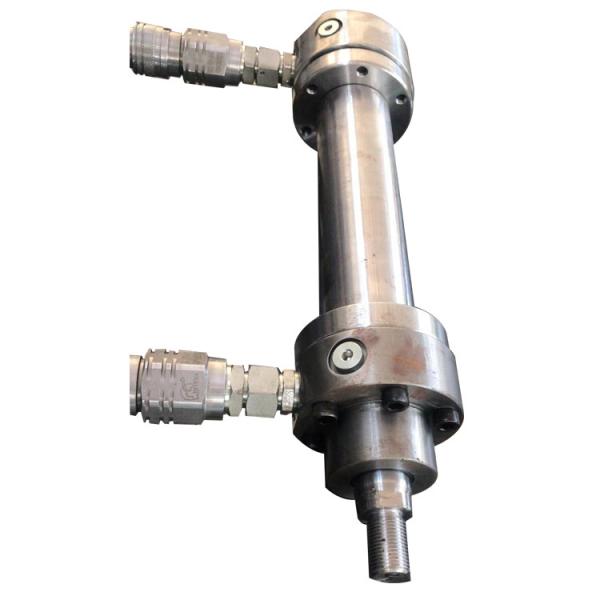

50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
Specifications
Brand Name :
Guoyue
Place of Origin :
Jiangsu,China
MOQ :
1 piece
Price :
USD1,000-10000/pieces
Certification :
iso
Model Number :
customized
Packaging Details :
Standard Export Package
Delivery Time :
12~60 days depends on products type
Payment Terms :
T/T
Supply Ability :
2500 Ton/Tons Per Year
Product name :
Hydraulic Cylinder
Power :
25MPa
Dimension(L*W*H) :
710*102*102mm
Rod Diameter :
35mm
Maximum Stroke :
200mm
Outer Tube Diameter :
60mm
Inner Tube Diameter :
50mm
Overall Length :
customized
Type :
Double Acting Cylinder
Material :
Steel, Stainless Steel
Description
Oem Hot Selling 50 35-200 High Temperature Resistant Hydraulic Cylinder Energy Technology Oil Cylinder Built-In Seal Groove Cylinder Good Hydraulic Cylinders – We Make Sure Inside Parts
The tube follows GUOYUE CD250 style.
Tube steel can be 45#, 42CrMo, or 27SiMn.
Hole is ground to H8 and feels smooth, Ra under 0.4 μm.
Head, base, ears, and piston are only 45# steel.
We do not use cast iron or cast steel. Slow-Down Parts
You can pick fixed bumpers or floating bumpers so the rod slows down safe at any speed or load. Welds
We hit every heavy-load weld with ultrasound.
This takes away most of the stress and makes the weld last longer. Seals
We only use top seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany).
We do not use local seals. Checks
Each cylinder is tested to GB/T15622-2005 and our own Q/GAKY014-2023.
You get a test sheet and a pass paper. Promise
We give one year cover from ship date.
If it breaks because of how we made it, we fix or swap it for free.
This cylinder is strong. It uses thick steel and hard rod. It does not bend. The seal keeps oil in, no leak. It has many tubes that slide out one by one. It lifts high but stays short Advantages She’s the gentle giant who never flinches in the heat. Custom-built with a 50 mm bore and 35-200 mm stroke, this hydraulic cylinder is designed to handle high temperatures without breaking a sweat. The built-in seal groove hugs the seals like a lifelong friend, keeping oil in and heat out. Chrome skin laughs at the scorching sun and industrial furnaces, ensuring every push is as smooth as silk. OEM fit means she slides straight into your machinery—no shims, no swearing. Every day she whispers, “I’ve got this,” and the operator feels the machine run smoothly without a hitch. Application Scenarios Picture a solar energy plant at noon: this cylinder powers the machinery that adjusts the angle of solar panels, ensuring they capture every ray of sunlight. Or an oil refinery where she helps move heavy equipment in the heat of the day, keeping everything running smoothly. From solar farms to oil refineries, she’s the quiet heartbeat that keeps machinery moving gracefully, turning brute force into gentle precision.
Application
Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.
Seal
Parker, Merkel, NOK, Hallite,etc.
Paint
Red, Grey, Yellow, Black, etc.
Material
St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certificate
ABS, Lloyds, SGS, etc.
Package
Bubble-wrap packing, then in wooden case.
Color
choose the color according to customer requirement
Core components
Bearing,Pressure vessel,Pump
Is it a standard part?
Nonstandard
Structure
Piston Type, Plunger Type, Telescopic Type,
Power
Hydraulic & Pneumatic
Brand
Guoyue
Sample
Available
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp

50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp
50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp

50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp


50mm Bore 35-200mm Stroke Double Acting Hydraulic Cylinder High Temp



1. who are we?
We are based in Jiangsu, China, start from 2022,sell to Domestic Market(40.00%),Africa(10.00%),North America(10.00%),South
America(8.00%),Southeast Asia(6.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Central America(5.00%),Eastern
Asia(2.00%),Oceania(2.00%),Northern Europe(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hydraulic cylinder,hydraulic cylinder,Single-acting hydraulic cylinder,Double-acting hydraulic cylinder,construction machinery
hydraulic cylinder

4. why should you buy from us not from other suppliers?
Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd., with a registered capital of 50 million yuan, is a private
technology enterprise that integrates research, design, development, production, operation, and service. The company specializes
in the

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
