Specifications
Brand Name :
HYCM TOWER CRANES
Model Number :
QTZ80(PT5515)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of flattop tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight
Supply Ability :
150 pcs of flattop tower crane each month
Delivery Time :
about 35 days after receiving advance payment
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for flattop tower crane
Type :
6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
Working range :
3-55m
Power supply :
380V/50Hz or according to your inquiry
Mast section dimensions :
1.6*1.6*3.0m (split structure)
Max. load :
6/8t
Color :
blue and white or others you need
Max. Lifting Height :
160m
Tip load :
1.5ton
Condition :
brand new
Description

6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane

Our Service for 6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
Warranty Assurance

For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.

Specifications for 6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 6
Tip load(t) 1.5
Working range(m) 55
Lifting height(m) Freestanding height 40
Attaching height 160
Mast section Main limb angle steel (mm) 180X18/ Q345B
Section size(mm) 1600X1600X3000
Lifting jib Upper chord(mm) diameter 110 Round steel / Q345B
Lower chord(mm) ∠110X12 two angle steel / Q345B
Parallel face width (mm) 1380
Counter jib Length(m) 14.6
Hoisting mechanism Reducer 24TQ15
Motor YZTD200L-2/4/16p-24/24/5.4KW
Brake YZW3H-200/45
Wire rope 6×37-13-1770-1-1right lay
Hoisting speed (m/min) 80/40/8.5 40/20/4.25
Slewing mechanism Reducer XX100,195
Motor YZR132-6-3.7KW
Slewing speed (r/min) 0.6
Trolleying mechanism Reducer WXG120
Motor YD132S-4/8-3.3/2.2KW
Trolleying speed( m/min) 40/20
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ100/160/125
Motor Y132M-4
Slewing bearing Type 1250.45
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 8
Tip load(t) 1.5
Working range(m) 55
Lifting height(m) Freestanding height 40
Attaching height 160
Mast section Main limb angle steel (mm) 180X18/ Q345B
Section size(mm) 1600X1600X3000
Lifting jib Upper chord(mm) diameter 110 Round steel / Q345B
Lower chord(mm) ∠110X12 two angle steel / Q345B
Parallel face width (mm) 1380
Counter jib Length(m) 14.6
Hoisting mechanism Reducer 30TLQ20
Motor YZTPF225M-4-J13021-30KW
Brake YWZ-300/45
Wire rope 6X37-16-1770-1-1 right lay
Hoisting speed (m/min) 0-100 0-50
Slewing mechanism Reducer XX100,195
Motor YTW132-6-3.7KW
Slewing speed (r/min) 0-0.6
Trolleying mechanism Reducer WXG120
Motor YZPD132S-4-3.3KW
Trolleying speed( m/min) 0-40
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ100/160/125
Motor Y132M-4
Slewing bearing Type 1250.45
Features for 6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
Tower crane equipped with fixed tower body and piece-type tower body forms,there are lots of specification and modles for users' selections, beautiful in appearance, compact in structure, complete in safety facilities, stable and reliable in quality, performance leading in the country, products comanding a ready market in the country and exporting in batches. They can widely apply to high-rise hotel,
resident houses, industry buildings, large-span factory and so on.
Safety Feather for 6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
1.Overload protection: If the material is over the capacity, the tower crane will give a sharp warning for protecting itself.
2.Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protect the related treasure.
3.Control Method: Remote control is to avoid any injury to the operation staffs.
4.Main lifting motor: if needed, there will be with thermal protection and currency protection.

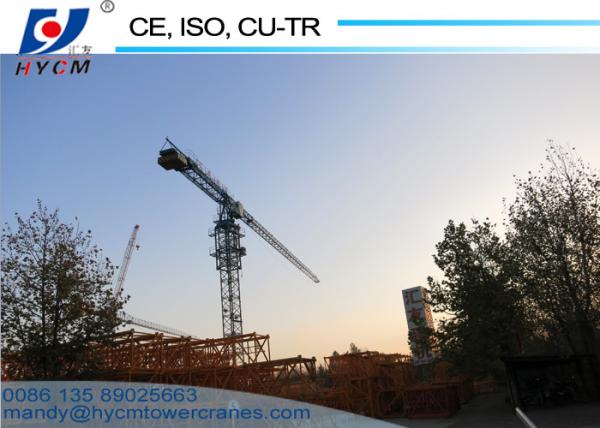

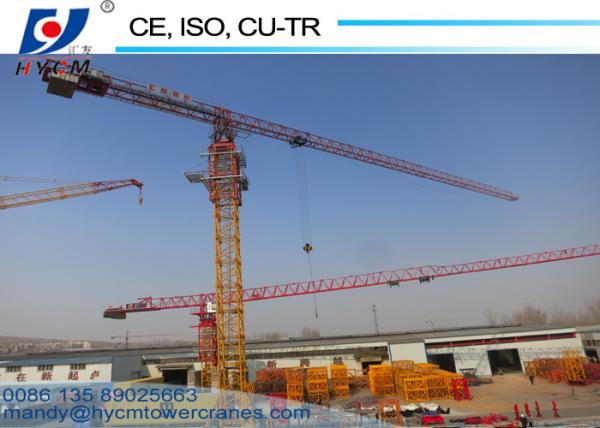

Photos for 6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane6/8ton 1.5ton Tip load 55m Boom QTZ80(PT5515) without Tower Head Topless Tower Crane
