Specifications
Brand Name :
HYCM Tower CraneS
Model Number :
QTZ100(6013)
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1 set of topkit tower crane
Price :
Negotiation
Payment Terms :
30% advance payment and balance before shipment or by copy of B/L
Supply Ability :
about 200 pcs of topkit tower crane per month
Delivery Time :
about 30 days after receiving the deposit
Packaging Details :
In nude or as customized, 20'GP or 40'HQ containers for topkit tower crane
Type :
Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
Condition :
100% Brand new
Power Supply :
380V/50Hz or based on your require
Arm Length :
60m
Electrical brand :
Schneider
Main limb :
angle steel ∠180X18mm/ Q345B
Freestanding Height :
40m
Mast section dimension :
1600*1600*3000mm (split type)
Max. Height :
150m
Description

Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment

Technical Features For Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment

1. Advanced Technology : Performance parameterd and technical indicators have reached the leading domestic and international advance level, the maximum working rang of 60meters, an increase of tower crane’s working space.
2. Attractive Design: Good Shape the form of an international pop machine, also can customized according to clients’ requirments.
3. High Quality Production : High operating speed , speed performance, smooth and efficient.Rigid doubl-rod boom suspension, rigid, light weight, small cross section.
4. Stable Structure: This kind of crane adopts standard section hydraulic lifting and connecting ensure safe and reliable.
5. Efficient Electrical Control System: SCHNEIDER electrical components ensure reliable and safe mechanism of A CLASS tower crane.
6. Reliable and Safety Cab: Indepedent of side cab, good vision, creativity to the operator a good enviroment. Cast steel brake wheel, hoisting mechanism is tested in multi-ways.

Specifications for Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
Main Performance Main Specifications
Rated lifting moment (KN.m) 800
Max. lifting load(t) 6
Tip load(t) 1.3
Working range(m) 60
Lifting height(m) Freestanding height 40
Attaching height 150
Mast section Main limb angle steel (mm) ∠180X18 / Q345B
Section size(mm) 1600X1600X3000
Lifting jib Upper chord(mm) 口86X8 square tube/Q345B
Lower chord(mm) 口100X8 square tube/Q345B
Parallel face width (mm) 1360
Counter jib Length(m) 12.636
Hoisting mechanism Reducer IQ6.80B2
Motor YZTD200L-4/8/32-24/24/5.4KW
Brake YZW3H-200/45
Wire rope 6×37-13-1770-1-1right lay
Hoisting speed (m/min) 80/40/8.5 40/20/4.25
Slewing mechanism Reducer XX100,195
Motor YZR132-6-3.7KW
Slewing speed (r/min) 0.6
Trolleying mechanism Reducer XX120
Motor YD132S-4/8-3.3/2.2KW
Trolleying speed( m/min) 40/20
Jacking-up speed

Hydraulic pump station

Jacking oil cylinder

 TQZ80/160/125
Motor Y132M-4-5.5
Slewing bearing Type 1250.45
Power supply 380V/50HZ or as per your require

Pre-sales Service for Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
  • More than 90% of the timely response rate;
  • Timely response to customer questions;
  • Provide professional product solutions;
  • Inquiry and consulting support;
  • Technical support;
  • View our factory.
After-sales Service for Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
  • Provice edited videos of the whole process of operation and maintenance;
  • Provide paper or electronic operation and maintenance instructions;
  • Localized service outlets guarantee;
  • housekeepers respond quickly;
  • Factory-specific equipment.

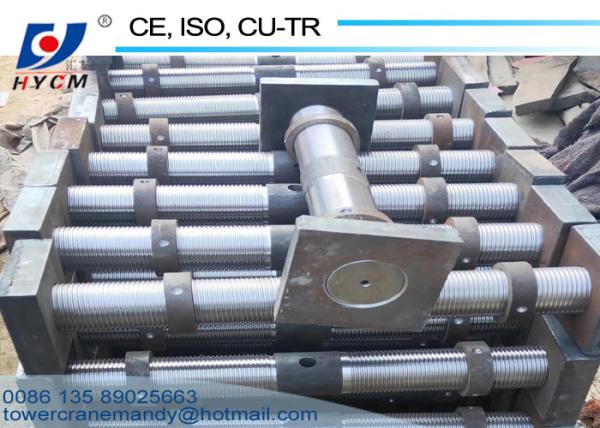

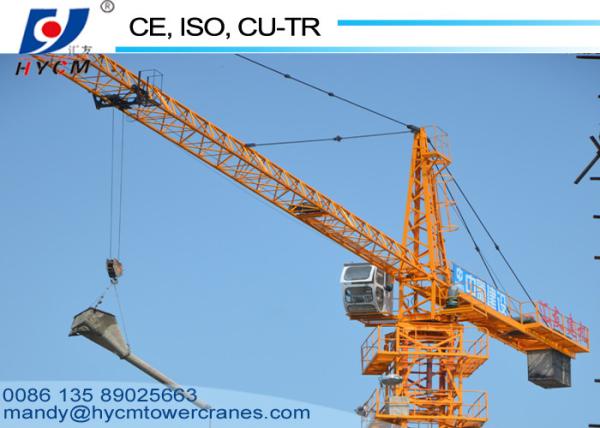

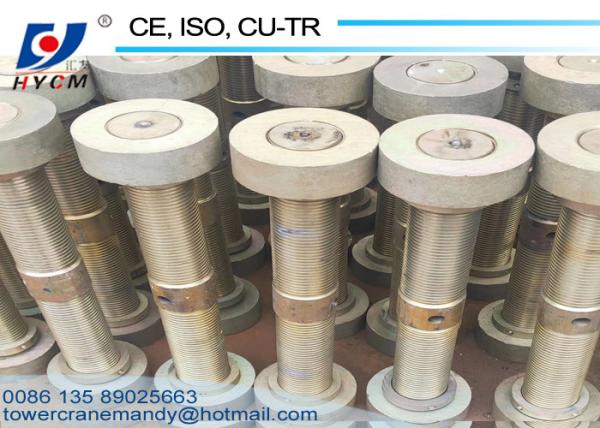

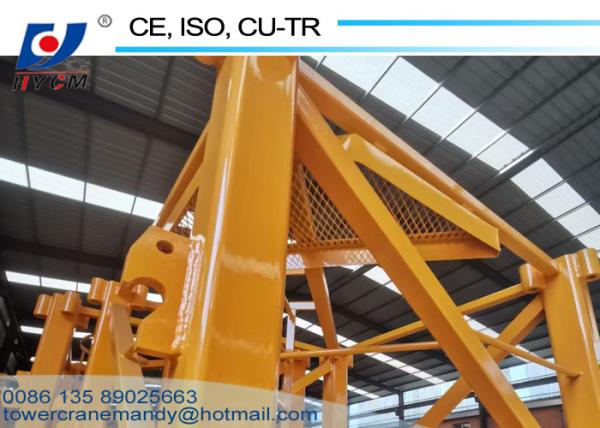

Photos for Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building EquipmentRobot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building EquipmentRobot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building EquipmentRobot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
Robot Welding safe mechanism QTZ80(6013) Topkit Tower Crane 40m Height Construction Building Equipment
