Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
Specifications
Brand Name :
HYCM TOWER CRANE
Model Number :
QTZ63(5011) Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1
Price :
$40400-45200 per set
Payment Terms :
TT, LC
Supply Ability :
40 sets per month
Delivery Time :
10 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 5*40’HQ containers.
Condition :
100% New
Application :
Buildings and projects
Type :
Fixed with tower head
Max. load :
5 t
Jib length :
50 m
Tip. load :
1.1 t
Power supply :
380V/50Hz or according to client's requirements
Mast section :
1.6*1.6*2.5m (blcok type)
Electric box :
Schneider
Power supply :
380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need
Description

Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre

Short Parameter
1.QTZ63(TC5011) Topkit Tower Crane
2. Type: fixed and external climbing
3. jib length:50m
4. tip load:1.1t
5. max.laod: 5t
6.freestanding height:40m

Description
The tower crane’s lifting height is obviously increased thanks to its self-erecting by adding mast sections and wall attached function.
It is applicable for construction of different industrial, commercial, office, and civil building lower than 150m, and becomes an ideal service-building machine at home.

Specification

ModelQTZ63 (5011) Tower Crane
Working Radius (m)50
Max. Load Capacity (T)5
Tip Load (T)1.1
Freestanding height (m)40
Max. Height with anchorages (m)150
Mast Section dimension (m)1.6×1.6×2.5, square tube 135×10mm
Hoisting MechanisSpeed (m/min)70/35/7.0, 35/17/3.5
Motor power (kw)18/18/5
Slewing MechanismSpeed (r/min)0.7/0.35
Motor power (kw)2*3.7
Trolleying MechanismSpeed (m/min)38.6/25.2
Motor power (kw)1.5/2.2
Jacking-up SystemSpeed (m/min)0.4
Motor power (kw)4
Total Power (kw)24.9
Power Supply380V/50Hz, 415/50Hz, 220V/60Hz, ect


Advantage
1. 15 years of experience in supplying all kinds of tower cranes.
2. Export to more than 20 countries with CE/ ISO/ GOST/ CU-TR Certifications.
3. Mobile and internal climbing type tower cranes are also offering.
4. Rost blasting and rust protection painting with advanced painting process.
5. Strict and experience welding line.
6. New designed mast, can be also used to Internal Climbing tower cranes.
7. Well known brand mechanism system, Schneider Electronic control system.
8. Engineers are available to service machinery overseas.
9. For long warranty: 12 months from the B/L date.
besides, some free easy-worn spare parts are provided with the crane.

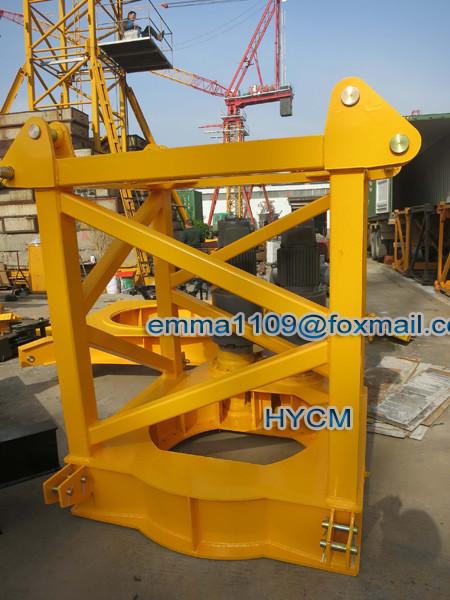

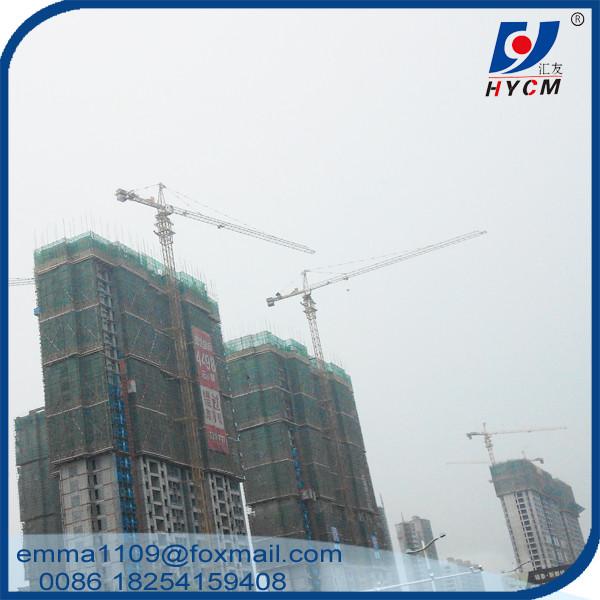

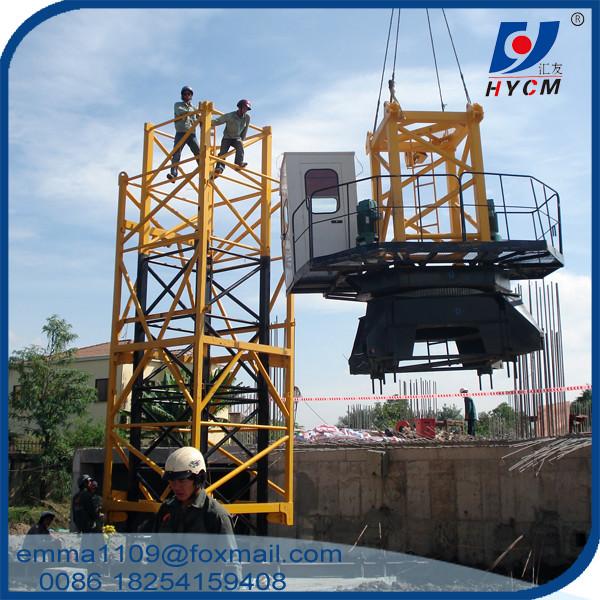

Photos
Electric Tower Crane CE Certification 5 ton 30 m Height guindaste de torreElectric Tower Crane CE Certification 5 ton 30 m Height guindaste de torre
