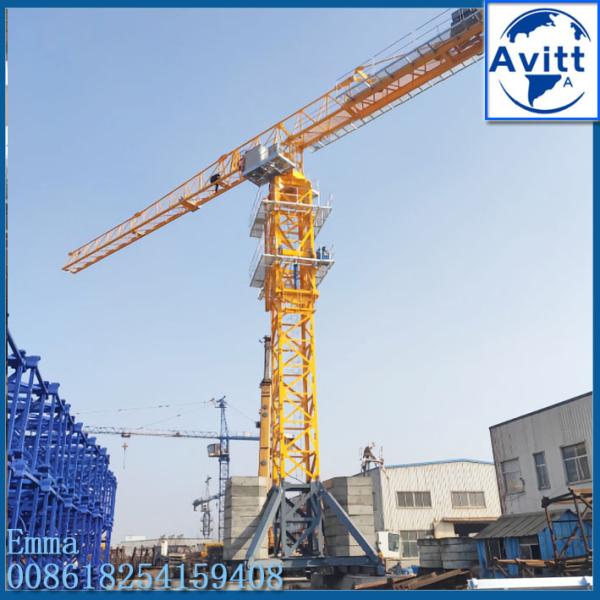

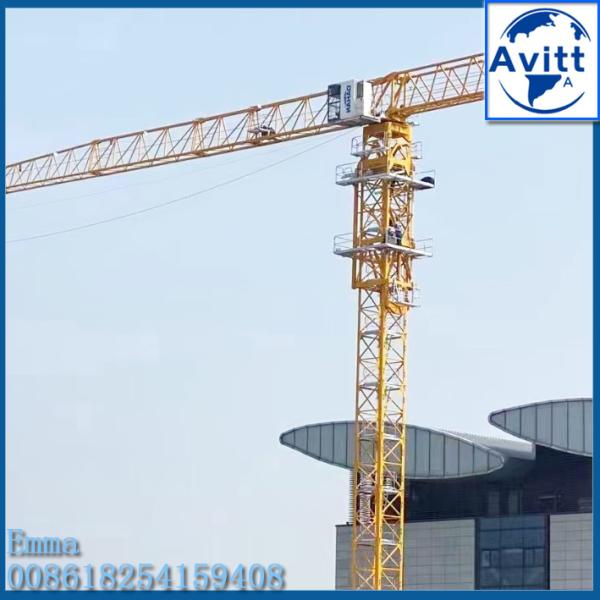

PT6015 QTZ125 Flat Top Tower Crane L46A1 Mast Section With CE EAC Certificate

Shot Parameters

1.TZ125 Flat Top Tower Crane

2. Type: fixed and external climbing

3.Working jib length: 60m

4. Tip load: 1.5t

5. Max.laod: 10t

6.Freestanding height:45m

Specification

The process features

1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.

2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.

3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life

Description

1. The Fixed Tower crane base fixed to the ground on a concrete foundation

2. The base is then attached to the mast sections which gives the crane its height.

3. Further the mast is attached to the slewing unit that allows the crane to slewing.

4. The horizontal jib (working arm) is the part of the crane that carries the load.

5. The counter-jib carries a counterweight while the jib suspends the load to and from the center of the crane.

6. The crane operator usually stay in the cabin at the top of the tower.

7. The lifting hook is operated by the operator using electric motors to manipulate wire rope cables through a system of sheaves which lift the building materials

Steel structure: Potain technology upgrade

1. Standard section adopts L46A1, and the whole machine plate is Q355B material

2. The climbing cage adopts Potain MC series

3. The upper and lower turntables adopt Potain MCT133 structure

4. The center transition section adopts Q355B solid round steel

5. The upper chord of the jib adopts Q355B solid round steel, and the lower chord adopts Q355B angle steel buckle square and sharp square tube

6. The balance jib adopts Q355B, H-shaped steel
