Potain QTZ125 10t Tower Crane 60m Jib Schneider Control
Potain QTZ125 10t Tower Crane 60m Jib Schneider Control
Potain QTZ125 10t Tower Crane 60m Jib Schneider Control
Potain QTZ125 10t Tower Crane 60m Jib Schneider Control
Specifications
Brand Name :
KANGTAI Tower crane
Model Number :
QTZ125 Tower Crane
Certification :
CE, ISO, GOST, CU-TR
Place of Origin :
China
MOQ :
1
Price :
$93800-108900 per set
Payment Terms :
TT, LC
Supply Ability :
40 sets per month
Delivery Time :
20 days after receiving the deposit or origin LC
Packaging Details :
Naked packing, 5*40’HQ containers per set QTZ125 Tower Crane
Condition :
100% New
Application :
Buildings and projects
Type :
Double Top Slewing
load :
10t
Boom :
60m
Tip. load :
1.5t
Power supply :
380V/50Hz or according to client's requirements
Mast section :
1.6*1.6*3 m L46A1
Electric box :
Schneider
Power supply :
380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need
Description

10tons Potain Technology QTZ125 Tower Crane 60m Working Jib Schneider Control

Shot Parameters

1.QTZ125 Tower Crane

2. Type: fixed and external climbing

3.Working jib length: 60m

4. Tip load: 1.5t

5. Max.laod: 10t

6.Freestanding height:45m

Specification

Foundation fixed or mobile
Freestanding height 45 meters
Max. height 200 meters
Max. radius 60 meters
Jib end load 1.5 t
Max. load 10T
Drum capacity 400 meters
Lifting speed 2r=0-80 4r=0-40 m/min
Slewing speed 0-0.6 r/min
Trolley speed 0-40 m/min
Power line voltage 380V/50Hz (60Hz)
Counter weight Steel-structured frame (without concrete)
Mast section 1.6 x 1.6 x 3 m (180*18)

The process features

1) Automatic submerged arc welding is adopted in the main section limbs and chord boom. It has high thermal efficiency, high penetration, high production efficiency, while reducing the pores and crack defects, increases the weld strength and the beautiful appearance.

2) We adopt carbon dioxide gas welding; it has heat concentrated, a small welding line, high strength and resistance to rust and crack. it can reduce tress and deformation, it has high strength and resistance to rust and crack.

3) Shot blasting is used for masts to strength the hardness of steel surface; enhance the paint adhesion and prolonging its life

Description

1. The Fixed Tower crane base fixed to the ground on a concrete foundation

2. The base is then attached to the mast sections which gives the crane its height.

3. Further the mast is attached to the slewing unit that allows the crane to slewing.

4. The horizontal jib (working arm) is the part of the crane that carries the load.

5. The counter-jib carries a counterweight while the jib suspends the load to and from the center of the crane.

6. The crane operator usually stay in the cabin at the top of the tower.

7. The lifting hook is operated by the operator using electric motors to manipulate wire rope cables through a system of sheaves which lift the building materials


Pictures

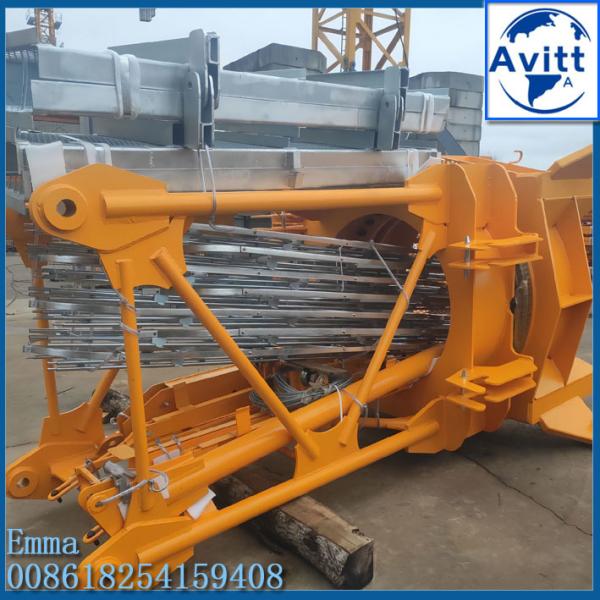

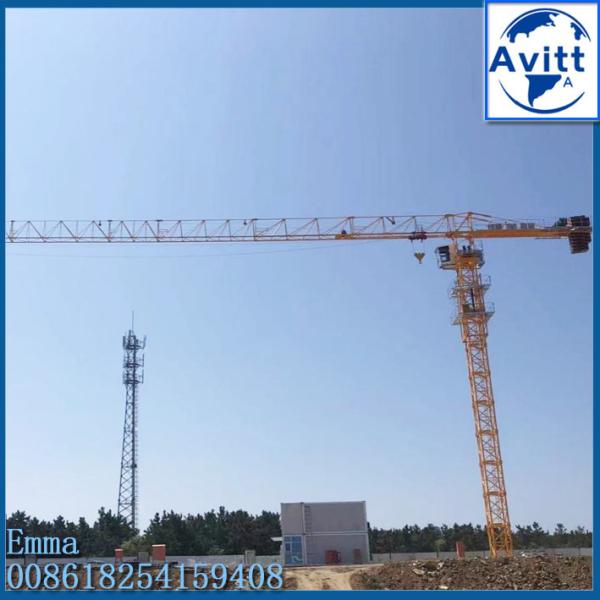

Potain QTZ125 10t Tower Crane 60m Jib Schneider Control
