ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications
ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications
ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications
ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications
Specifications
Place of Origin :
HENAN
Brand Name :
HONGYUN
Certification :
ISO9002
Delivery Time :
20~30 days
Supply Ability :
20 sets one month
Model :
V40/40-2L
Capacity(t/h) :
15-30
Maximum extrusion pressure (Mpa) :
3.0
Overall dimension (mm) :
5000 x 2500 x 5000
Weight (t) :
20
Power (kW) :
110+30
Description
ECP Wall Panel Vertical Vacuum Extruder
ECP Wall Panel Extrusion Machine
High-performance extrusion solutions for demanding applications in construction, mining, and brick manufacturing industries.
Equipment Overview
Manufactured using advanced European technologies and processes, this specialized extrusion forming equipment is designed for high-end ceramic materials, cement fiber products, and semi-hard plastic viscous materials. Built to European standards for materials, technical structure, electrical systems, and operating systems.
Key Equipment Benefits
  • Increased Extrusion Pressure
  • Suitable for High-Hardness Materials
  • Robust and Durable Design
  • Optimized for Shale and Gangue Applications
  • Compact footprint with integrated water cooling system
  • High degree of automation and excellent operability
  • Stable performance with easy machine cleaning
  • Long service life and reduced maintenance costs

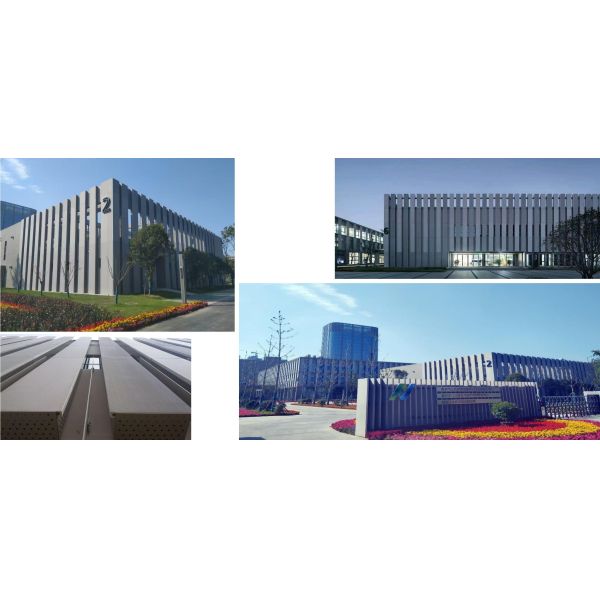

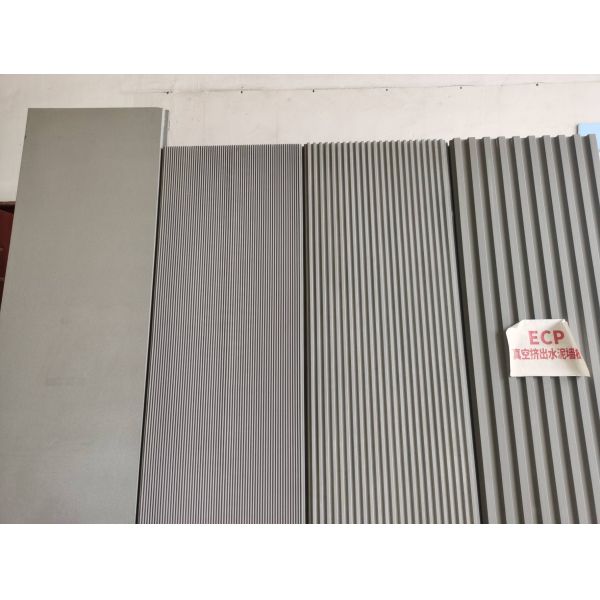

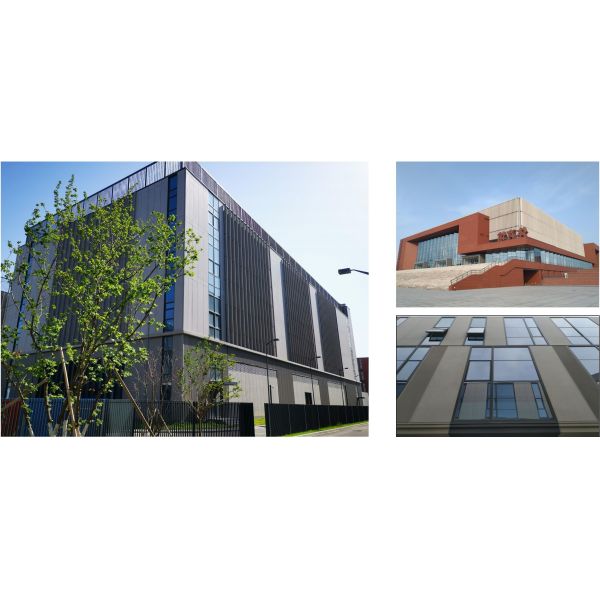

Extruded Cement Panel (ECP) Technology
ECP is an innovative extruded panel material using primary raw materials including cement, fibers, solid waste, and siliceous materials. Many manufacturers incorporate industrial by-products such as stone powder, construction waste, phosphogypsum, and tailings, ensuring high resource efficiency and eco-friendly production.
ECP Panel Performance Characteristics
Lightweight yet High-Strength: Despite low density, this lightweight material achieves compressive strength of 60MPa, with hollow panels exceeding 12MPa and average bending strength over 10MPa when fully saturated. Effectively reduces structural weight while meeting load-bearing requirements.
Exceptional Fire Resistance: As a non-combustible material, it demonstrates outstanding fire safety. The 60mm-thick ECP extruded wall panel maintains a fire resistance limit of 1.00 hours, effectively delaying fire spread to buy critical time for evacuation and firefighting.
Superior Sound Insulation: The 60mm ECP panel provides 32dB sound insulation, creating quiet and comfortable indoor environments. Ideal for high-acoustics applications like residences, schools, and hospitals.
Weather-Resistant Performance: With low water absorption, it resists rain and moisture damage while demonstrating strong freeze-thaw cycle endurance. After 100 freeze-thaw cycles, performance remains stable, ensuring long service life in diverse climatic conditions.
Technical Specifications
Model Capacity (t/h) Max. Extrusion Pressure (MPa) Overall Dimension (mm) Weight (t) Power (kW)
V35L 7 3.5 5000 x 1800 x 3200 10 55+15
V40L 10 3.5 5000 x 2000 x 3200 12 75+18.5
V56/45L 15 4.5 5700 x 2000 x 3500 14 90+30
V35/35-2L 10-25 3.0 4500 x 2000 x 4500 16 75+30
V40/40-2L 15-30 3.0 5000 x 2500 x 5000 20 110+30
Product Images
ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications ECP Wall Panel Extruder with High Extrusion Pressure Robust Durable Design Optimized for Shale and Gangue Applications
