Specifications
Capacity :
70-120 m³/h
Power :
132+3.7 KW
Model :
YF190
Diameter :
1.9m
Description

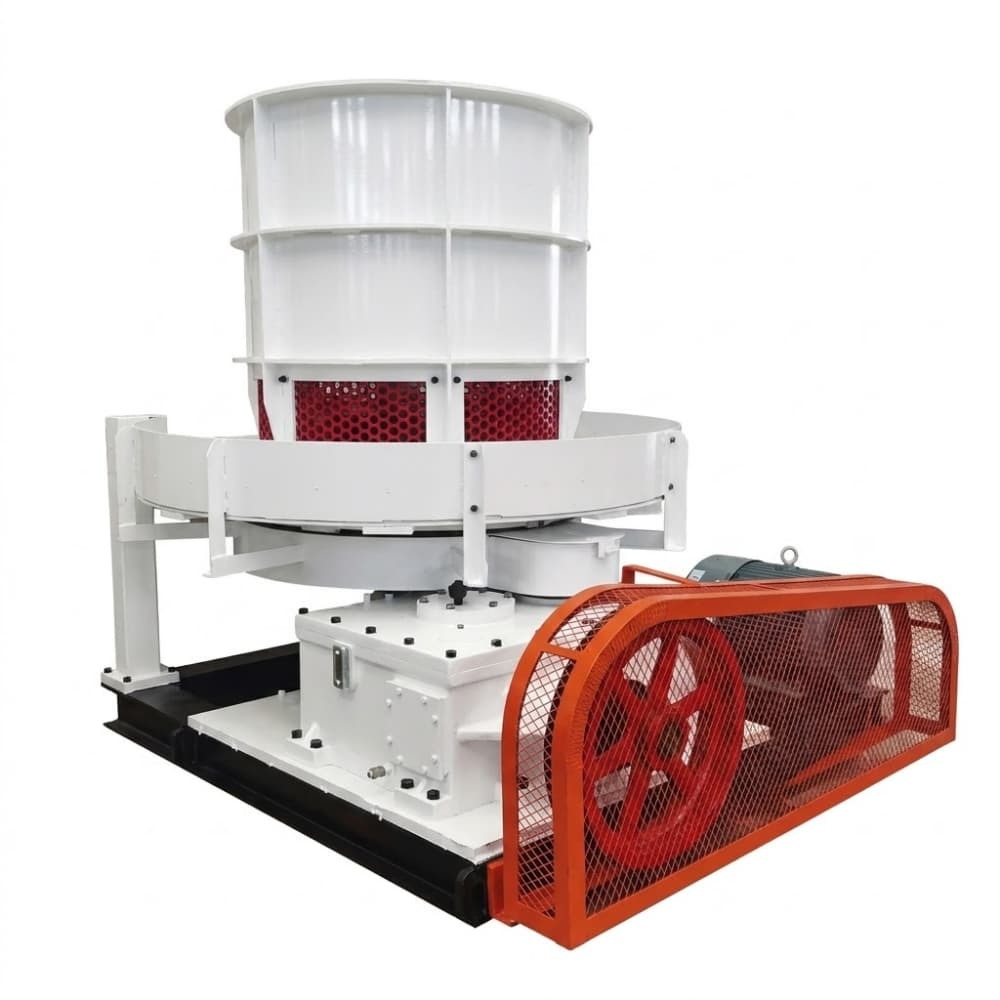

Screening Feeder

The Screening Feeder is designed to continuously supply processed raw materials in brick and tile production. Installed before the extruder, this machine enhances raw material plasticity for improved product quality.

  • 1. Continuous raw material supply
  • 2. Enhanced raw material plasticity
  • 3. Improved brick and tile production efficiency
  • 4. Optimized for extruder performance

Structural Features

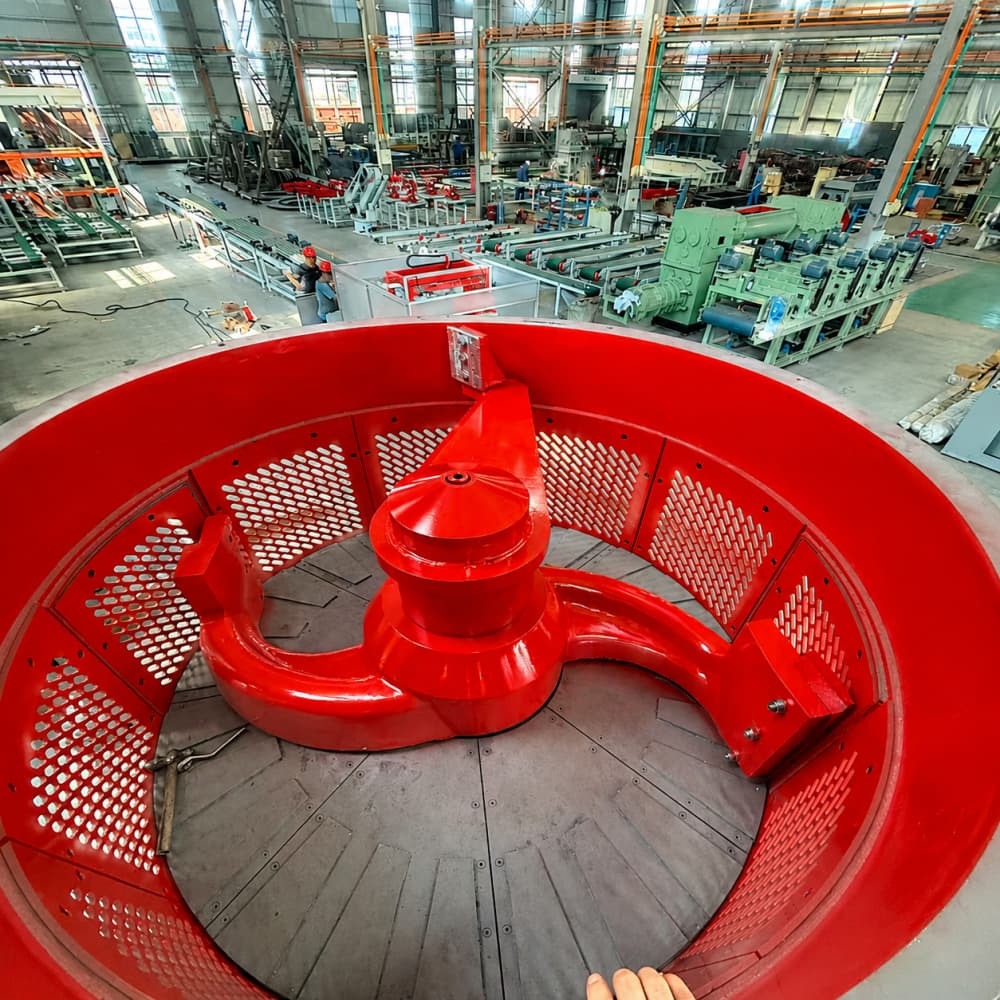

  • 1. Double‑shaft stirring design with stirring cutters on each shaft, supporting automatic discharging and raw material extrusion.
  • 2. Extrusion unit for extruding and filtering raw materials, separating impurities from clay and realizing good plasticizing effect.
  • 3. Sealed reduction gearbox with forced lubricating oil to protect gears and guarantee power performance.
  • 4. Motor belt pulley driven by belt transmission.
  • 5. Independent pressure‑resistant structure separated from replaceable material shifting cutters.
  • 6. Stirring cutters equipped with wear‑resistant liners.
  • 7. Stirring shaft made of 40Cr material; replaceable stirring cutters of high‑chromium cast iron.
  • 8. Mesh plate welded from high‑quality steel, surface welded with tungsten carbide for superior wear resistance.

Target Industries: Brick Manufacturing, Tile Manufacturing, Construction Materials Production

Applications: Raw material preparation, Extruder feeding systems

Technical Specifications

ModelCapacityPowerDiameter
YF10015-20 m³/h22 KW1.0m
YF15020-30 m³/h75+4 KW1.5m
YF19070-120 m³/h132+3.7 KW1.9m


Product show:

Circular Screening feeder
