Specifications
Application :
PCB
Interface Type :
Through-Hole / PCB Mounting
Model NO. :
JL24-12TKY Dual-Head
Gender :
Male and Female
Fastening Type :
Detent Lock
Housings :
Aluminium Alloy
Origin :
China
Poles :
2-8, 12
HS Code :
8544422900
MOQ :
10 Pieces
Contact Finish :
Gold
Mounting Type :
Surface Mount
Operating Frequency :
Low Frequency
Termination :
Press-Fit
Price :
US $24.6-28.8 / Pie
Description
China Origin military Grade Double-End Plug-in Aviation Connector

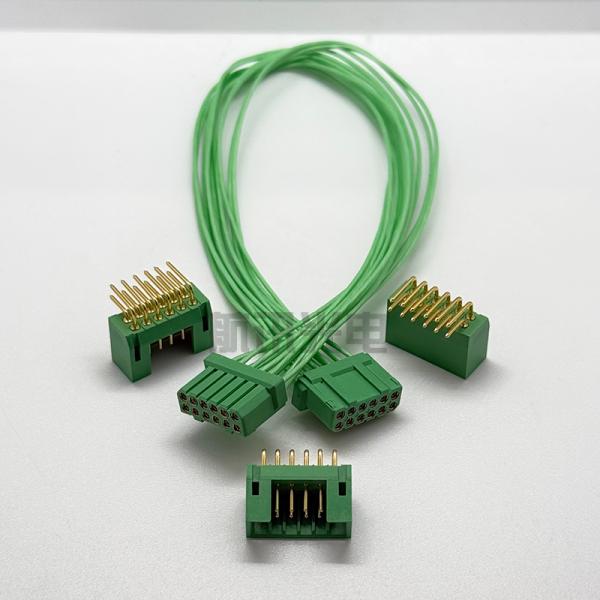

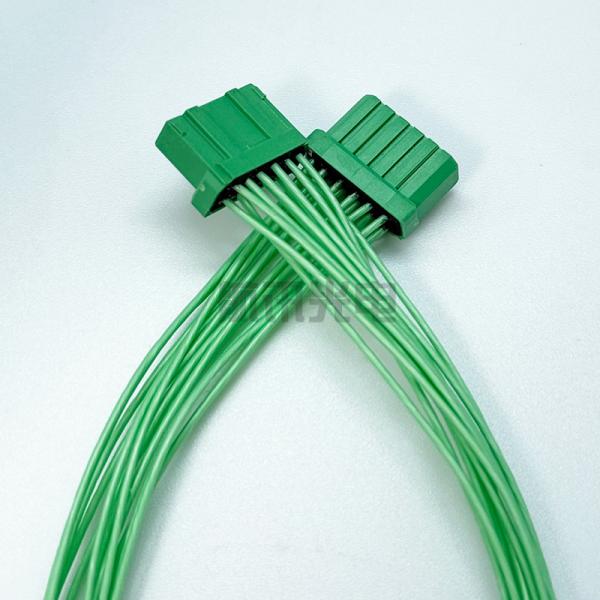

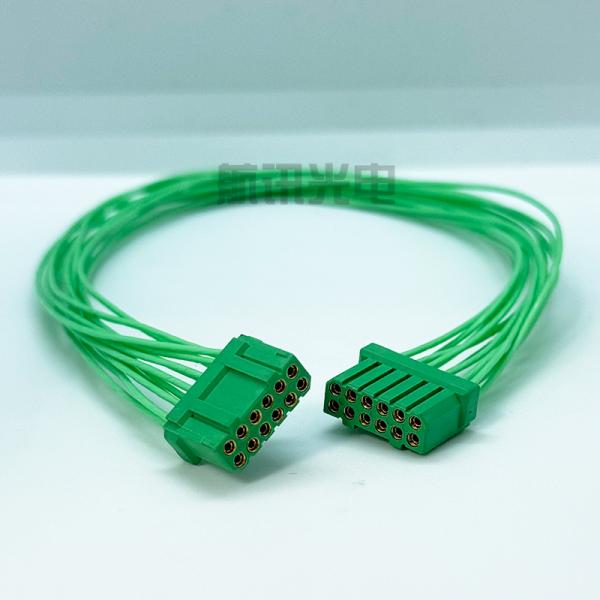

JL24-12TKY 12-Core Dual-Head Rectangular Aviation Connector for Equipment Internal Wiring Connection.

JL24-12TKY is a 12-core dual-head rectangular aviation connector. With double-end plug-in structure and firm locking design, it needs no PCB welding for quick connection. Adopting gold-plated wire spring contacts, it features stable transmission, good anti-vibration and anti-interference performance. Made of high-strength insulating material and produced per mili-tary standards, it is compact, temperature and corrosion resistant. Widely used in industrial control, precision instruments, avionics and wiring harness connection.

Specifications
Specifications
Rated Current
3A per contact
Rated Voltage
300V AC
Contact Resistance
≤10mΩ
Insulation Resistance
≥5000MΩ (normal)
Withstanding Voltage
1000V AC (normal)
Mechanical Life
≥500 mating cycles
Operating Temperature
-55°C ~ +125°C
China Origin military Grade Double-End Plug-in Aviation Connector
Jiangsu HangXun Optoelectronics Technology Co., Ltd.
Jiangsu Hangxun Photoelectric Technology Co., Ltd. is engaged in the research and development, production, and sales of electrical connectors and cable assemblies. With 12 years of experience in the industry, the company possesses strong design, research, and manufacturing capabilities. The factory covers an area of 1520 square meters.
Main products:1.rectangular connector:J30J,J30JA,J30JZ and HJ30J.
2.Wire harness customization:Customization of communication wire harness and drone wire harness.
China Origin military Grade Double-End Plug-in Aviation Connector
Qualification Certificate
Our company holds a certificate of quality management system certification for weapon equipment, issued by a professional organization, covering the manufacturing of electronic connectors and the sales of cable assemblies (excluding those requiring specific qualifications).
China Origin military Grade Double-End Plug-in Aviation Connector
Connector assembly workshop
China Origin military Grade Double-End Plug-in Aviation Connector
Wire harness processing workshop
China Origin military Grade Double-End Plug-in Aviation Connector
J30J-ZKN/ZKN-J/ZKS
China Origin military Grade Double-End Plug-in Aviation Connector
J30J-25ZKSP
China Origin military Grade Double-End Plug-in Aviation Connector
J30J-25 core plug/socket crimp with wire
China Origin military Grade Double-End Plug-in Aviation Connector
F1031 series 12-pin aviation plug to RJ45 connector
China Origin military Grade Double-End Plug-in Aviation Connector
J30J series to DB9 serial port cable
China Origin military Grade Double-End Plug-in Aviation Connector
J30J-51TJL-(one divided by eight)
Essential knowledge for product selection

1. If there are no special instructions from the user when selecting wire pressing products, the J30JZ series products are equipped with AFR-250-0.12-250V white wires with a length of 250mm. If the user has special requirements for the wires, they should be indicated in the following format after the plug or socket model:

a) Wire specifications: directly indicate the wire specifications (cross-sectional area), if omitted, it defaults to 0.12mm ²; (Suitable for specifications of 0.07~0.15mm ²) wire color Directly indicate the color of the wire, if omitted, it defaults to white.

c) Wire length: The length of the wire extending from the end face of the outer shell, measured in millimeters.

a) External protection of wires: directly indicate the type and requirements of external protection for wires, including nylon wire sleeves, metal shielding mesh, and heat shrink tubing.

2. If there is no technical agreement or consensus has not been reached before, the empty points in the product shall be blocked with sockets or pin fittings that have not been crimped with wires.

3. If the user has other special requirements for the wiring of the product (such as using single core wires, uncoated wire surfaces, tin plated wire surfaces, different wiring requirements for each hole, etc.), the wiring requirements should be specified in the contract.
