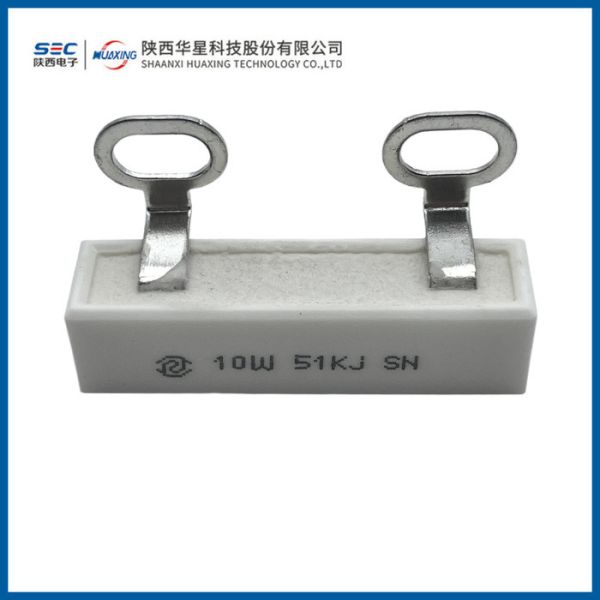

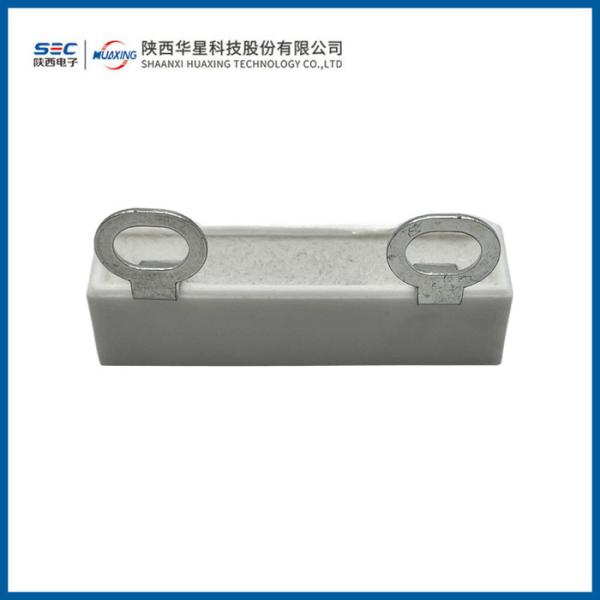

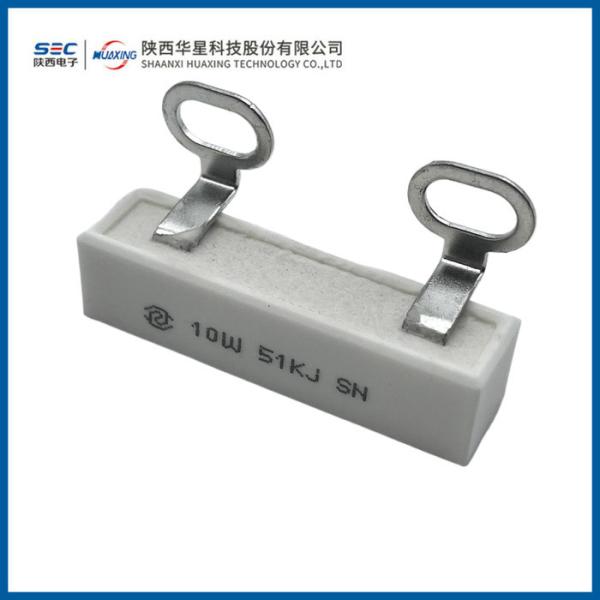

RX27-7A Ceramic-housed wirewound resistor

Product Introduction:

  • Product Features: Leads can be directly installed with screws. Ceramic shell packaging, flame retardant, belongs to insulated resistor.
  • Application Areas: Generally used in DC or low-frequency AC circuits. Can also be used in three-phase circuits as a voltage equalizing resistor.
  • Product Standard: Q/RW370-1994 RX27 ceramic shell power wire-wound resistor detailed specification.
  • Can negotiate to provide no inductance products, designated by adding "N" before the model number.
  • Can produce products that comply with RoHS and REACH requirements.

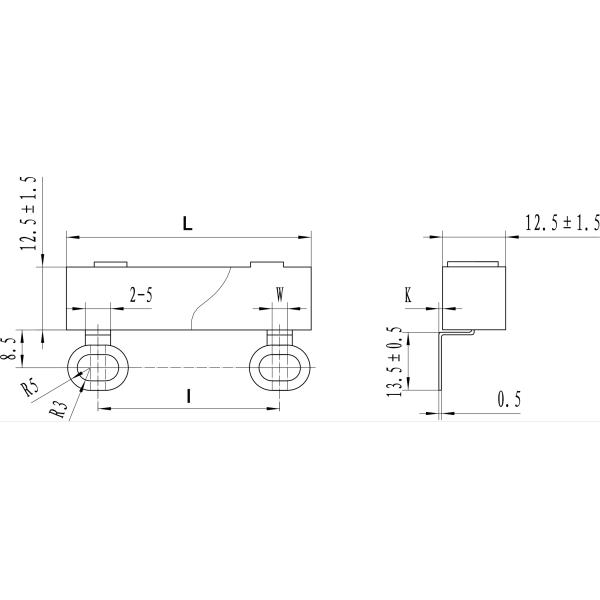

Size:
RX27-7A Ceramic Housed Wirewound Resistor

specifications and models rated power(W) resistance range(Ω) Size (mm)
W±0.5 K±2 L±2 I±2
RX27-7A-10W 10 1.5-100K 2 2.0 48.5 31
RX27-7A-20W 20 1.5-100K 2 2.0 63.5 32.5

Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Voltage withstand capability Voltage: 1000Vac, 1 minute, V-shaped block method No breakdown, arcing GB/T 5729-1985 Section 4.7
Resistance value Variation with temperature Lower category temperature: (-55±3)°C
Upper category temperature: (+155±2)°C		 10Ω: ±250ppm/°C
5-10Ω: ±500ppm/°C
≤5Ω: No specified requirements		 GB/T 5729-1985 Section 4.8
Overload capacity Load with 10 times the rated power for 5 seconds ΔR ≤ ±(2%R + 0.1Ω) GB/T 5732-1985 Section 2.3.4
Lead strength Tension: 20N, 10 seconds ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.29-1982
Rapid temperature changes Temperature range: (-55 to +125)°C, 5 cycles ΔR ≤ ±(2%R + 0.1Ω) GB/T 2423.22-1981
70°C Durability Ambient temperature: (70±2)°C, rated power, 1.5 hours powered on; 0.5 hours powered off, 1000 hours ΔR ≤ ±(10%R + 0.1Ω) GB/T 5729-1985 Section 4.25.1
Maximum category temperature Durability Ambient temperature: 155°C, 58.5% of rated power, 1.5 hours powered on; 0.5 hours powered off, 1000 hours ΔR ≤ ±(5%R + 0.1Ω)
Insulation resistance ≥ 1GΩ		 GB/T 5729-1985 Section 4.25.3
Accidental overload test (Flame retardancy) Power: 5 times; 10 times; 16 times rated power, time: 5 minutes (or until open circuit) No visible flame or burning phenomena SJ 3272-1990 Section 4.2.2

Power dissipation curve

RX27-7A Ceramic Housed Wirewound Resistor

Ordering Example:

Model Number :RX27-7A

Rated Power:10W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
