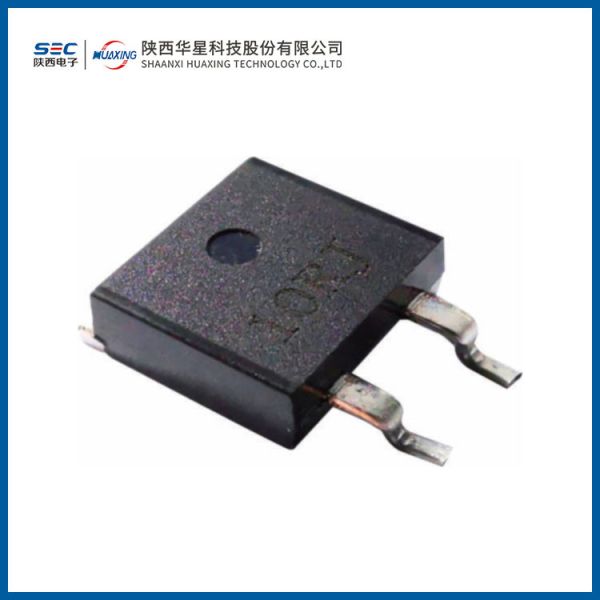

RSH10WA 10W Plastic Encased Thick Film Resistor
RSH10WA 10W Plastic Encased Thick Film Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RSH10WA
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RSH10WA Plastic encased thick film resistor

Product Introduction:

  • Product features: Non-inductive, compact size, lightweight, high power-to-weight ratio, stable performance, superior high-frequency characteristics. Encapsulated, with end electrode leads.
  • Applications: Power electronics, and other fields. Can be used in electronic circuits for current sensors, current-limiting resistors in power supplies, instruments, meters, and power amplifiers, serving to collect signals, regulate voltage, and limit current.

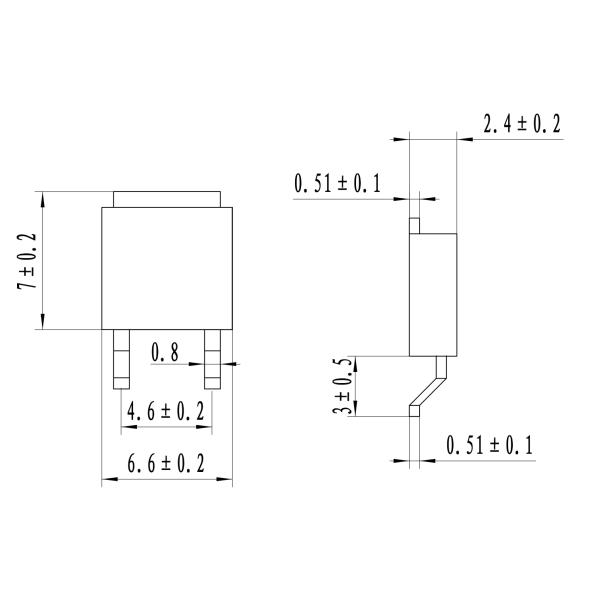

Size:

RSH10WA 10W Plastic Encased Thick Film Resistor

specifications and models rated power(W) resistance range(Ω)
RSH10WA 10 0.1Ω～1MΩ

Key Test Items:

Test items: Test conditions: Performance parameters: Test standards:
Resistance change with temperature ±150ppm/°C GB/T 5729-2003 Clause 4.8
Overload 1.5 times the rated power load for 10 seconds ΔR ≤ ±(0.25%R + 0.05Ω) GB/T 5732-1985 Clause 2.3.4
Rapid temperature change Temperature range: (-55 to +155)°C
5 cycles		 ΔR ≤ ±(0.25%R + 0.05Ω) GB/T 2423.22-2002
Steady-state humidity and heat Ambient temperature: (15 to 30)°C
Rated power
1.5 hours powered on; 0.5 hours powered off, for 1000 hours		 ΔR ≤ ±(1%R + 0.05Ω) GB/T 5729-2003 Clause 4.25

Ordering Example:

Model Number :RSH10WA

Nominal Resistance:0.1Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
