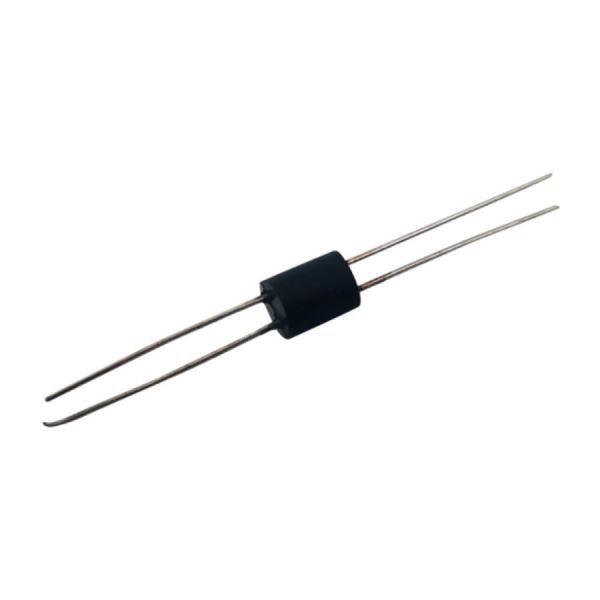

RXM14 Miniature Molded Four-Terminal Ignition Resistor

Product Introduction:

  • Product Features: Small size, high power-to-weight ratio, lightweight, and cost-effective. Molded in plastic packaging, high resistance precision, high insulation strength, excellent moisture resistance.
  • Product Standard: Detailed specifications of RXM14 Miniature Molded Four-Terminal Ignition Resistor under standard O/RW554-2019.

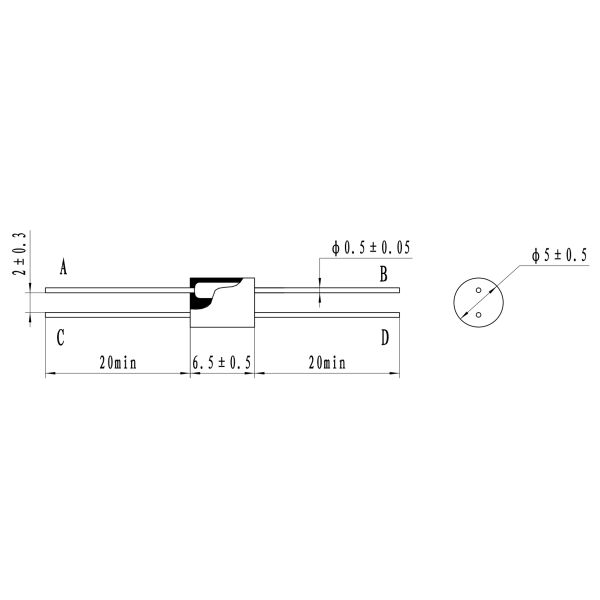

Size:

RXM14 Miniature Molded Four Terminal Ignition Resistor

specifications and models rated power(W) resistance range(Q)
RXM14 2×(1/4) R(AB)=R(CD)=27Ω

Key Test Items:

Test items: Test conditions: Performance requirements: Test standards:
Insulation resistance Voltage: 500Vdc, 1 minute, V-shaped block method Insulation resistance: GB/T 5729-2003 Clause 4.6
Voltage withstand Voltage: 500Vac, 1 minute, V-shaped block method ≥1GΩ GB/T 5729-2003 Clause 4.7
Resistance change with temperature Lower category temperature: (-55±3)°C
Upper category temperature: (+125±2)°C		 no breakdown, no arcing ±200ppm/°C GB/T 5729-2003 Clause 4.8
Overload Condition 1: 0.2A for 5 minutes
Condition 2: 0.8A for 100ms		 ΔR ≤ ±(1%R + 0.05Ω) GB/T 5732-1985 Clause 2.3.4
Terminal strength Tensile strength: 5N, 10 seconds ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.29-1999
Solderability Solder bath temperature: (235±5)°C, immersion time: (2±0.5) seconds Uniformly tinned, free-flowing GB/T 2423.28-2016
Rapid temperature change Temperature range: (-55 to +155)°C, 5 cycles ΔR ≤ ±(1%R + 0.1Ω) GB/T 2423.22-2012
Shock resistance Acceleration: 490m/s², time: 11ms, half sine wave ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.05-1995
Vibration resistance Frequency: (10-500)Hz, acceleration: 10g, 1 hour ΔR ≤ ±(1%R + 0.05Ω) GB/T 2423.10-2008
Room temperature durability Ambient temperature: (15-30)°C, rated power, 1000 hours ΔR ≤ ±(5%R + 0.1Ω) GB/T 5729-2003 Clause 4.25

Ordering Example:

Model Number :RXM14

Rated Power:2× 1/4W

Nominal Resistance:2× 27Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
