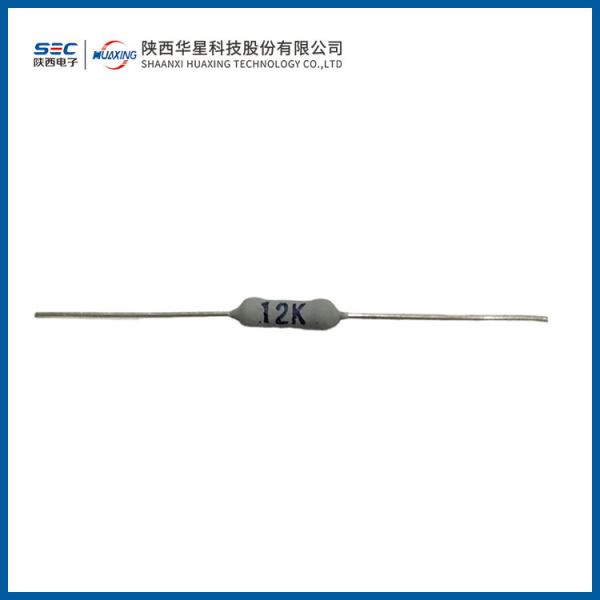

RJ57,58 Metal Film Resistor
RJ57,58 Metal Film Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RJ57,58
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RJ57,58 metal film resistor

1. Purpose:

small temperature coefficient, used for sampling measurement.

2. Packaging form:

coated with gray insulating paint.

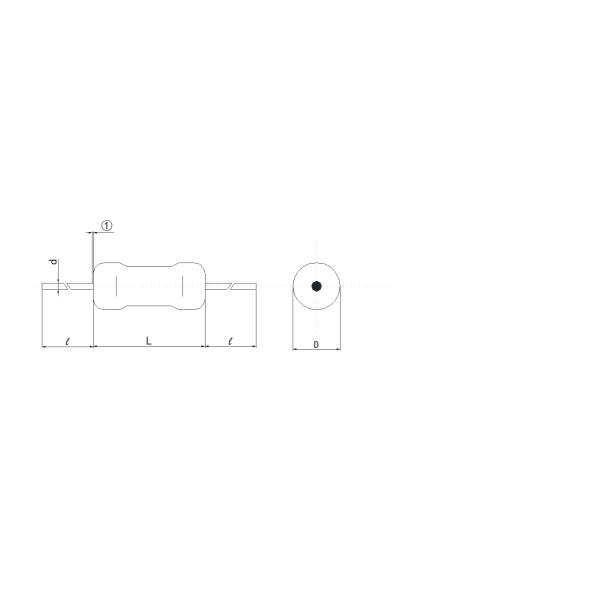

3. External size:

RJ57,58 Metal Film Resistor

model Type power (W) ΦDmax(mm) Lmax(mm) Φd(mm) L(mm)
R J 57 1 4.5 13.0 0.8±0.05 30±5
R J 58 2 6.5 16.0 0.8±0.05 30±5

Note: The length of the paint should not exceed 2mmj

4. Main technical indicators:

model

Temperature coefficient T.C.R

(10-6/℃)

 Resistance range (Ω) Resistance tolerance is permissible Component limit voltage (d.c.or.a.c.rms) (V)

Insulation voltage (d.c.or.a.c.peak)

(V)
RJ57 ± 100 10-1M

±1%

±2%

±5%

 500 700
RJ58 750 850
