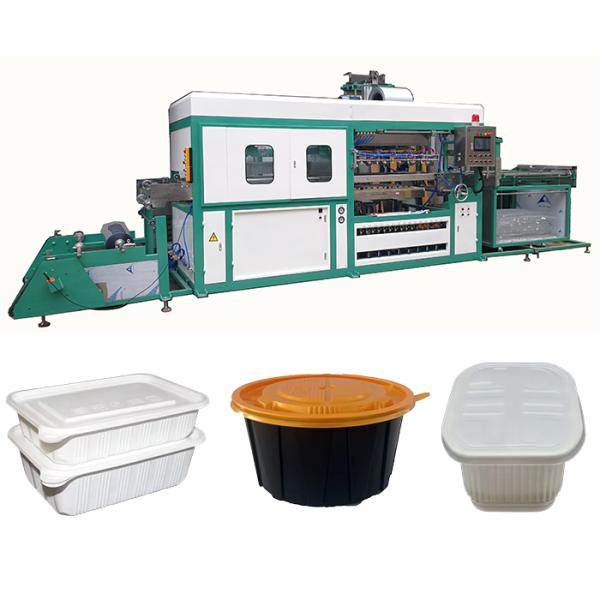

High Speed 10 Times/Minute Pressure Thermoforming Machine with 1220mm Forming Length and Multi-Mode Vacuum Regulation
High Speed 10 Times/Minute Pressure Thermoforming Machine with 1220mm Forming Length and Multi-Mode Vacuum Regulation
Specifications
Brand Name :
HengXing
Model Number :
HX-76HD
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD：6999 $ (deposit)
Payment Terms :
D/A,L/C,D/P,Western Union,MoneyGram
Delivery Time :
45 work days
Packaging Details :
wooden case
model :
HX-76HD
Applicable sheet materials :
PVC、PP、PE、POF、PPT、PTGF、APET、ABS、OPP、PS、PET
Forming length :
1220 mm
Forming width :
420-710mm
Material thicknes :
0.1-2.5mm
Working speed :
1-10 times/minute
Overall weight :
Approximately 3000KG
Machine dimensions :
L7350×W1770×H2700mm
vacuum pump :
Cosmic star 200m ³/H
Electric furnace power :
Maximum 39KW
Description
High Speed Intelligence Pressure Multi-Station Thermoform Disposable Tray Making Machine
Product Overview
The HX 76HD Pressure Thermoforming Machine with efficient demolding capability processes various film types including PVC, PP, PE, POF, PPT, PTGF, APET, ABS, OPP, PS, and PET into custom plastic covers and trays. Applications span multiple industries including toys, hardware, food packaging, electronics, daily necessities, clothing, automotive materials, and sanitary products.
Advanced Features & Capabilities
Multi-Mode Vacuum Regulation: Triple adjustment mode (delayed vacuum, primary vacuum, secondary vacuum) ensures uniform stress distribution and tight mold adhesion for products with varying structures and materials.
Efficient Demolding Solution: Dual demolding technology with multiple bottom air blowing and pre-demoulding blowing solves difficult demolding challenges for irregular structures and deep cavity designs.
Rapid Heating Technology: Achieves production mode within 5 minutes of preheating (1 minute with energy-saving bricks) while reducing electricity consumption by approximately 20% compared to traditional systems.
Universal Control Voltage Regulation: Dual-stage temperature control with one main module managing 60 heating bricks plus independent temperature adjustment for precise thermal management.
Temperature Probe Monitoring: High-precision probes provide real-time furnace temperature visualization for consistent batch production and material-specific temperature requirements.
Dual Spray Silicone Oil System: Front-end spraying with cow's milk solution for mold release and back-end anti-static liquid spraying to eliminate surface static electricity.
Secondary Molding Function: Additional upper mold action during demolding improves product accuracy and edge definition while reducing demolding difficulty.
Rapid Molding Technology: Optimized driving structure and pressure control for complex multi-cavity and deep stretching products, ensuring detailed molding and reduced shape deviation.
Delayed Cold Air & Water Spray: Active cooling system with delayed cold air and optional water mist spray significantly reduces cooling cycles and increases production throughput.
Vibration Demolding: High-frequency, low-amplitude vibration technology safely separates difficult products from molds without damage to product or tooling.
Sheet Pulling Function: Reverse sheet recycling during production gaps or mold changes minimizes material waste and improves raw material utilization.
Technical Specifications
Detailed machine parameters and specifications are provided in the following technical documentation:
