Versatile Multi-Station Plastic Thermoforming Machine for Disposable PP Containers, Food Trays, Hinged Containers | China
Versatile Multi-Station Plastic Thermoforming Machine for Disposable PP Containers, Food Trays, Hinged Containers | China
Specifications
Forming Width :
610 Mm
Touch Screen :
Taiwan's "Delta 10 Inch"
MOQ :
1
Airpressurerequirement :
0.6 - 0.8 MPa
Brand Name :
HengXing
Delivery Time :
45 Work Days
Certification :
CE & ISO
Price :
15000$(deposit)
Packaging Details :
Wooden Case
Payment Terms :
L/C T/T Western Union MoneyGram D/A D/P
Cooling Mode :
The Mold Is Cooled By Circulating Water
Model Number :
HX-6175
Place Of Origin :
Guangdong,China
Model :
HX-6175
Pulling Motor :
4.5KW
Pulling Tab Servo :
4.4KW Inovance Servo
Forming Length :
750 Mm
Description

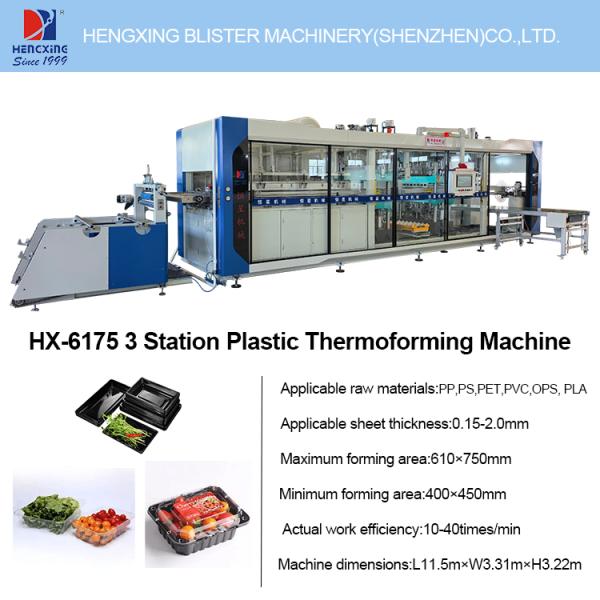

HX-6175 Fully Automatic Positive and Negative Pressure Three Station Thermoforming Machine
The HX-6175 is an advanced thermoforming machine designed for processing various plastic materials to meet production needs for efficient, high-quality products.
Key Features and Specifications
Feature Specification
Compatible Materials PP, PS, PET, PVC, PLA, ABS
Material Width Range 510-780mm
Material Thickness Range 0.15-2.0mm
Maximum Molding Area 750x610mm
Minimum Molding Area 400x450mm
Maximum Punching Area 630x750mm
Positive Pressure Forming Depth 140mm
Negative Pressure Forming Depth 150mm
Maximum Punching Force 60 tons
Production Speed 10-40 cycles per minute
Power Consumption 30-50KW/H
Machine Weight 15 tons
Dimensions 11m x 2.3m x 3.2m
Advanced Technology
  • Three/four stage heating system for uniform material heating
  • Circulating water cooling for precise mold temperature control
  • Servo stretching technology for products exceeding 50mm height
  • Intelligent temperature control system with 10% energy savings
  • Front-accessible mold changing for quick setup
Applications
This machine integrates heating, forming, cutting, stacking, and counting functions, making it ideal for producing disposable PP containers, food trays, hinged containers, and various plastic products.
Technical Support and Services
We provide comprehensive support including installation assistance, operational training, troubleshooting guidance, and maintenance services. Our team ensures optimal performance through routine maintenance, calibration, software updates, and genuine parts replacement.
Packing and Shipping
Each machine is carefully packaged in protective foam and plastic film, then secured in custom-fitted wooden crates. We use reliable freight services with optional insurance coverage and provide tracking information throughout the shipping process.
Frequently Asked Questions
What is the brand and model number of the Pressure Thermoforming Machine?
The machine is branded HengXing, model number HX-6175.
Where is the Pressure Thermoforming Machine manufactured?
It is manufactured in Guangdong, China.
What certifications does the HX-6175 have?
The machine is certified with CE and ISO certifications.
What is the minimum order quantity and price?
Minimum order quantity is 1 unit, with prices starting at $15,000 as a deposit.
What are the packaging details and delivery time?
The machine is packaged in wooden cases with delivery time of approximately 45 work days.
What payment terms are accepted?
Accepted payment terms include L/C, T/T, Western Union, MoneyGram, D/A, and D/P.
