Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Specifications
Brand Name :
HWASHI
Model Number :
WL-C
Certification :
CE/CCC/ISO
Place of Origin :
CE/CCC/ISO
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,L/C
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Key Selling Points :
Automatic
Applicable Industries :
welding machine
Description
Pneumatic Automatic Spot Welding Machine for Stainless Steel Hwashi Resistance Wire Mesh

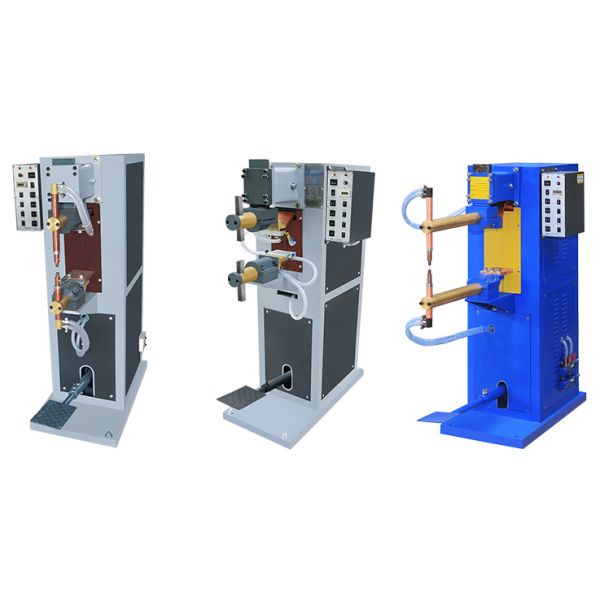

Foot Pedal Operated Spot Welding Machine
Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding

This foot pedal operated spot welding machine features a lever pedal type spring pressurized structure for easy operation and quick response. It is suitable for various applications requiring positioning accuracy and complex shape welding.

Operating through a transformer, the machine utilizes standard mains supply to lower voltage and increase electric current. The resulting low voltage, high current is transmitted from the electrode to the connection point of two work pieces. Due to resistance at the linkage point, high temperature occurs, generating sufficient heat to melt the work pieces and achieve secure welding.

Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Intelligent Welding Control System

Features an intelligent touch screen controller for easy input and reading of welding parameters.

Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Premium Raw Materials

Constructed with thicker copper plates or copper belts to ensure stable conductivity during welding operations.

Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Custom Electrode Processing

Customized electrodes designed specifically for welding various materials including steel, aluminum, silver, stainless steel, and nickel steel.

Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Optimized Shape Structure and Welding Method

Machine shape and molds are designed according to specific welding product requirements.

  • Pedal lever control circuit - Main engine remains without electricity when pedal is not stepped, providing energy efficiency
  • Timing control system - Automatically cuts off current on time even while work piece is pressed, reducing human factors and ensuring easier operation
  • Electronic controller with stepless regulation - Timing range from 0.02 to 2 seconds (typically required time within 0.5 seconds) with accurate repeat selection
Technical Specifications
Model Input Voltage Input Power Output Current Adjustable Stroke Electrode Distance Cooling Water
WL-FT-25K 380V 25KVA 12000A 30mm 100mm 6 Lit/Min
WL-FT-35K 380V 35KVA 14000A 30mm 100mm 6 Lit/Min
WL-FT-50K 380V 50KVA 18000A 30mm 100mm 6 Lit/Min
