Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Specifications
Brand Name :
HWASHI
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,T/T,MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
Automatic Rotary Table Spot Welding Machine For Capacitor Cap
Application :
Welding for Nut, Capacitor Welding
Size :
according to your products
Condition :
New
Warranty :
12months
Certificate :
CE/CCC/ISO
Service Life :
8-10 years
Description
Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap

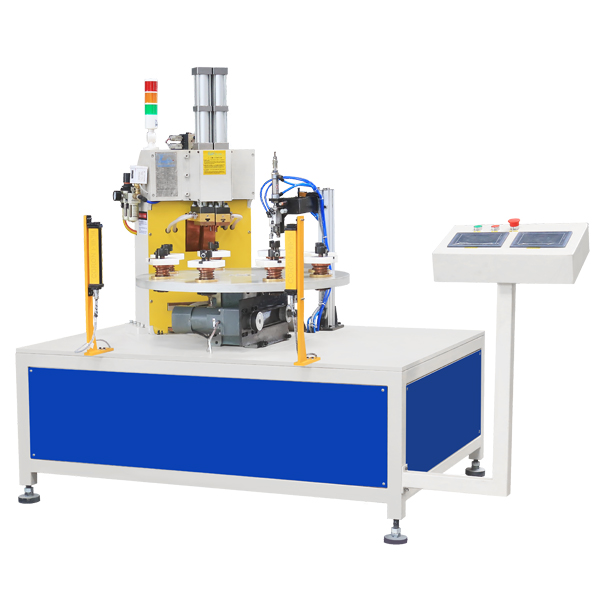

HWASHI Full Automatic Rotary Table Spot Welding Machine

The HWASHI Full Automatic Rotary Table Spot Welding Machine for capacitor cap welding is designed for automatic welding, rotating, and discharging operations. Featuring 8 welding positions, the machine enables continuous cycle working for efficient production.

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap

The machine utilizes medium frequency inverter power source technology, offering high power factor, energy efficiency, and consistently stable, reliable welding spots. By simply changing the fixtures (welding moulds), the machine can accommodate different product types and dimensions.

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Multi-Station Operation

The main welding component is equipped with an automatic rotating device. Operators can load up to 8 work pieces simultaneously. When welding commences, the system automatically processes each piece in sequence - after welding the first piece, the rotating device moves the next piece into position, creating a continuous cycle. Meanwhile, welded pieces are automatically discharged, allowing operators to continuously load new work pieces for uninterrupted operation.

Customized Fixture Design

We design specialized fixtures tailored to your specific product requirements.

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Automated Feeding System

Automatic Vibration Feeding Plate - Automatically feeds small parts to the fixture, enabling fully automated assembly and welding processes.

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Automated Material Handling

Automatic Loading and Unloading Mechanical Arm - Ensures seamless material transfer throughout the welding process.

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Technical Specifications
Parameter Specification
Input Voltage 380V three-phase
Input Current 150A
Output Voltage DC11.6V
Max Short Circuit Current 32000A
Welding Models 32 types
Rotary Table Diameter 800mm
Rotary Table Material Positions 6-8 positions
Rotary Table Rotating Speed 0.5m/sec
Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
Customized Solutions

We provide comprehensive customized services. Our engineering team will discuss your specific welding requirements and develop suitable technical proposals based on your samples or drawings.

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap
