HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
Specifications
Brand Name :
HWASHI
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine
Warranty :
12 Months
Condition :
New
Service Life :
8-10 Years
Standard :
CE/CCC/ISO
Weight (Kg) :
120kg
Description

Product Description

Product Description

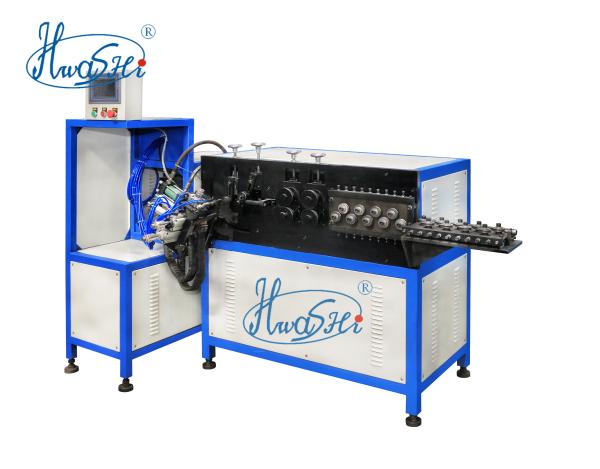

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Product description
Stainless Steel Mild Steel Wire Frame Butt Welding Machine T butt Welding Machine aluminum pipe butt Welding Machine butt welder Under the operation of transformer, butt welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding MachineHWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding MachineHWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Model
Small Ring Making
Vertical Type
6mm Wire Special Use
10mm Wire Special Use
Wire Diameter Range
1.2-3mm
1.6-5mm
5-6.5mm
6.5-10mm
Ring Diameter Range
18-80mm
70-450mm
250-450mm
350-450mm
Air Pressure Range
4-6Mpa
Power Type
AC Type
Motor Power
2.3KW
2.3KW
3.0KW
5.0KW
Dimension
1000x800x1130mm
1320x1000x1300mm
1450x1100x1300mm
1450x1300x1400mm
Weight
1000kg
1200kg
1400kg
1600kg
Main Power Voltage
Three-phase 380V 50Hz
Welding Method
Resistance Welding
Suitable Wire Material
Cold Drawn Wire, Galvanized steel wire, iron wire, etc.
