Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified
Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified
Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified
Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified
Specifications
Size :
according to your product
Condition :
New
Packaging Details :
sea worthy wooden package
Certification :
CE/CCC/ISO
Price :
negotiation
MOQ :
1 set
Model Number :
according to your product
Supply Ability :
50 sets per month
Warranty :
12months
Service Life :
8-10 years
Brand Name :
HWASHI
Payment Terms :
L/C,T/T
Delivery Time :
7-30 working days after received your payment
Product Name :
HWASHI Best Price and High Quality Sheet Metal Gantry Type Multipoint Welding Machine
Application :
welding metal sheet in electronic appliances,warning board,automobile and other industries.
Certificate :
CE/CCC/ISO
Weight :
480kg
Place of Origin :
China
Description
Panel Sheet Metal Spot Welder Gantry Type Multipoint Welding Machine
Product Overview

HWASHI Best Price and High Quality Sheet Metal Gantry Type Multipoint Welding Machine

Gantry Type Multipoint Welding Machine with Automatic Welding, 8-10 Years Service Life, and CE/CCC/ISO Certified

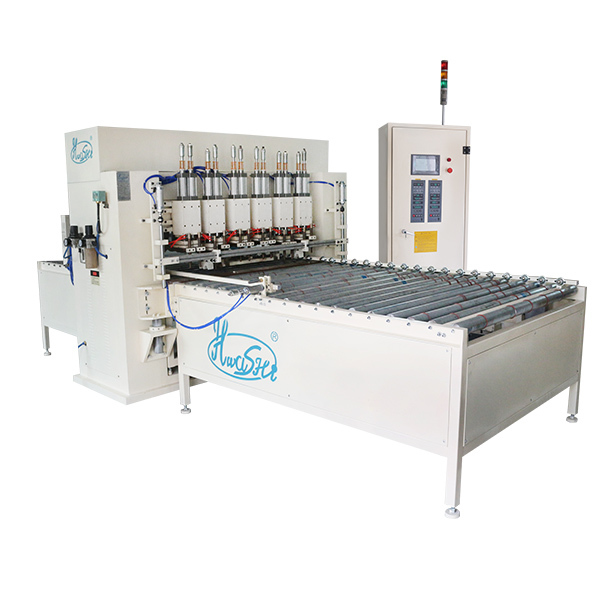

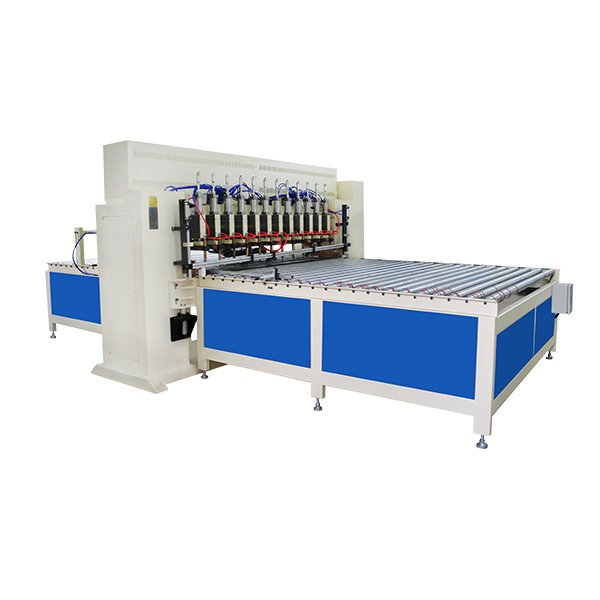

This gantry-type welding machine features manual loading of sign plates onto the roller feeder, with automatic movement to the welding station. Equipped with two welding heads, the system handles profile placement via conveyor belt (manual or connected to punching line) and utilizes mechanical arms for positioning and post-welding unloading and stacking operations.

Key Features
  • High-quality welding spots with excellent appearance, firm bonding, and reliable consistency
  • Fully automated welding process
  • Wide application range with flexible machine, electrical, and mechanical configurations
  • Adaptable for welding similar products through microcontroller data program modifications
  • Multi-purpose functionality - one machine serves multiple applications
  • Designed working life: 8-10 years
Technical Specifications
Item Specification
Cable Requirement Three-phase 380V/50mm²/160A
Rated Capacity 100KVA × 2
Duty Cycle Rate 50%
Frequency 1000Hz
Control Heat Adjusting Range 15% - 99%
Maximum Output Voltage DC 7.8V
Secondary Maximum Short Circuit Current 20KA
Program Section Time Adjusting Range 0 - 999ms
Welding Schedule 32 types
Applications & Examples

This machine is ideally suited for welding metal sheets in various industries including electronic appliances, warning boards, automotive components, and related manufacturing sectors.
