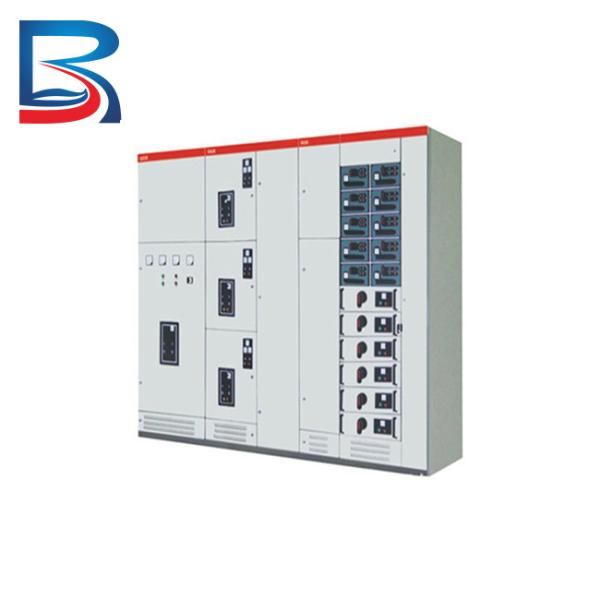

Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock

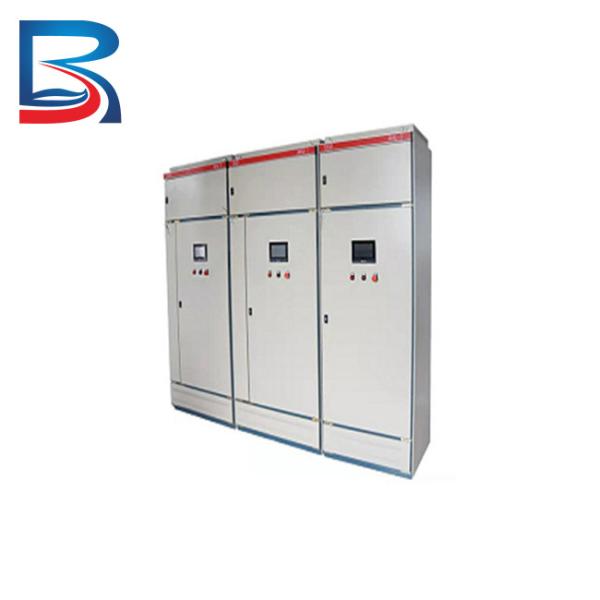

Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock
Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock
Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock
Specifications
Brand Name :
Bosun
Certification :
ISO9001, CE, CQC,CCC
Place of Origin :
Chongqing
MOQ :
1
Price :
999 - 9999 USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 PCS per Month
Delivery Time :
15 Working Days
Packaging Details :
Wooden case
Product Name :
low voltage metal clad Switchgear
Color :
As required
ODM/OEM :
Accepted
Certificate :
ISO,9001 CQC,CCC,CE
Payment :
T/T L/C
Packing :
Wooden Case
Description

Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock

Product Description

This is a composite switchgear, up to international standards. Suitable for substations, power plants, oil and chemical plants, metallurgy and steel plants, transportation and power, textile industry, residential communities, high-rise buildings, etc.

As AC 50/60Hz rated operating voltage 690V or below power distribution equipment for power conversion, distribution and control.

Operating conditions:

  1. Ambient temperature: -30°C to +50°C, average RH < + 50°C in 24 hours;
  2. Altitude: below 2000 meters;
  3. Humidity: Average RH < 95% per day; Average RH < 90% per month
  4. Earthquake intensity: < 8 degrees
  5. Water vapor pressure: Average RH ≤ 2.2 kPa per day; Average RH ≤ 1.8 kPa per month
  6. Environment: Without fire, explosion, severe pollution, chemical corrosion and severe vibration

Specification

Rated Insulation voltage 690V (1000)V
Rated working voltage 380V, 400V, 690V
Maximum working current of main bus 6300A
Rated withstand current of main busbar 100kA/1s
Main busbar rated peak withstand current 220kA/0.1s
Maximum operating current of branch distribution bus (vertical bus) 2000A
Standard type 105kA(Max)/0.1s
Reinforced type 176kA(Max)/0.1s
Protection level IP4X, IP41,IP65

Production Facilities

Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock

Design

Indoor Outdoor IP4X Low Voltage Metal Clad Switchgear panel for Wharf and Dock

Material

1.The cabinet door adopts a double beveled edge process, which increases the structural strength of the same material by 50%.

2.The installation holes are all made using a multi-layer stamping and stretching process, which reduces the sliding wire situation by more than 80%.

3.The inlet and outlet holes adopt a composite structure of knockdown holes and square holes, which can be flexibly selected during on-site installation.

4.The box adopts a double folding process, which increases the structural strength of the same material by 50%.

5.The control circuit adopts a composite design of debugging mode and fire protection mode, greatly reducing the burning of fan and water pump equipment designed for fire protection during debugging.
