IWA 14-1 Crash Tested Removable Bollard with 350mm Shallow Mount and Q235 Steel Construction
IWA 14-1 Crash Tested Removable Bollard with 350mm Shallow Mount and Q235 Steel Construction
IWA 14-1 Crash Tested Removable Bollard with 350mm Shallow Mount and Q235 Steel Construction
IWA 14-1 Crash Tested Removable Bollard with 350mm Shallow Mount and Q235 Steel Construction
IWA 14-1 Crash Tested Removable Bollard with 350mm Shallow Mount and Q235 Steel Construction
IWA 14-1 Crash Tested Removable Bollard with 350mm Shallow Mount and Q235 Steel Construction
Specifications
Brand Name :
ZASP
Model Number :
Milita HB-SF301
Certification :
CE ISO IWA14-1 PAS68
Place of Origin :
China
MOQ :
1
Payment Terms :
D/A,L/C,T/T,D/P,Western Union
Supply Ability :
1000 pcs/day
Delivery Time :
5 working days
Packaging Details :
Cartoon Package
Bollard Diameter :
219±1mm
Height Above Ground :
1000±5mm
Depth :
350mm
Warning Method :
3M reflective type
Material :
Q235 Steel
Color :
Grey or other RAL color
Crash Rating :
IWA 14-1, 7200KG/48KMH, ZERO penetration, equal M30/K4
Impact Test :
7200kg truck at 48kph
Mount Depth :
350mm
Corrosion Protection :
Hot-dip galvanized
Description
Crash Tested Removable Bollard | 350mm Mount for Reliable Security
IWA 14-1 Crash Tested Removable Bollard | 350mm Mount for Enhanced Security

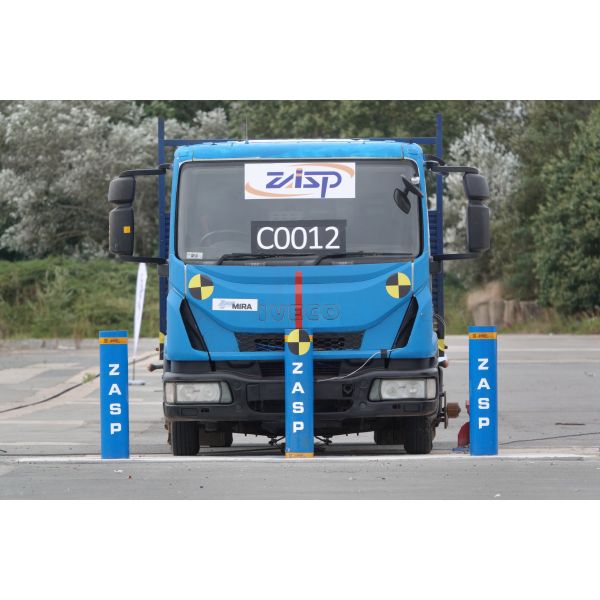

The Milita HB-SF301 high security removable bollard represents the latest product R&D by ZASP in 2020. These security bollards have successfully passed the rigorous IWA14-1 crash test, demonstrating zero penetration when impacted by a 7200kg truck traveling at 48 Kph.

Impact Tested Removable Bollards
Milita SF301-1000
7200kg truck travelling at 48kph
ZERO penetration, P1 rating

Designed specifically for urban environments with complex underground networks, the Milita HB-SF301 features a shallow 350mm mount depth that makes it suitable for installation in most sites where traditional deep foundations are not feasible.

The bollards are constructed from hot-dip galvanized Q235 steel as standard, with options for custom RAL color painting or various sleeve finishes. These removable bollards are ideal for diverse applications including pedestrian streets, shopping centers, public squares, and perimeter security systems.

Product Specifications
Bollard Diameter 219±1mm
Height Above Ground 1000±5mm
Depth 350mm
Warning Method 3M reflective type
Material Q235 Steel
Color Grey, or other RAL colors
Crash Rating IWA 14-1, 7200KG/48KMH, ZERO penetration, equal to M30/K4
Key Features
  • IWA14-1 certified crash test performance
  • Shallow 350mm foundation requirement
  • Hot-dip galvanized corrosion protection
  • Customizable colors and finishes
  • Removable design for flexible access control
  • Suitable for complex urban environments
Certified Performance: IWA14-1 crash test certified with zero penetration against 7200kg vehicle at 48kph.
