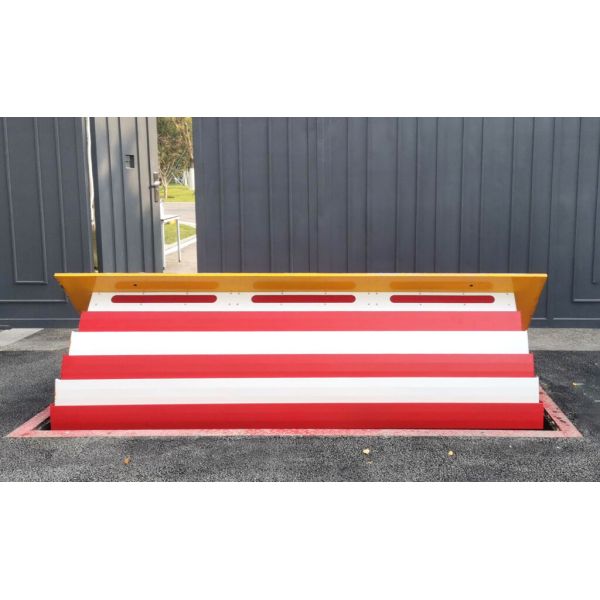

K12 M50 PAS 68 Impact Tested Hydraulic Road Blocker with Zero Penetration and Shallow Mount Design for High Security Vehicle Access Control
K12 M50 PAS 68 Impact Tested Hydraulic Road Blocker with Zero Penetration and Shallow Mount Design for High Security Vehicle Access Control
K12 M50 PAS 68 Impact Tested Hydraulic Road Blocker with Zero Penetration and Shallow Mount Design for High Security Vehicle Access Control
K12 M50 PAS 68 Impact Tested Hydraulic Road Blocker with Zero Penetration and Shallow Mount Design for High Security Vehicle Access Control
Specifications
Brand Name :
ZASP
Model Number :
Suprema RB-SM501
Certification :
CE, IWA 14-1, SGS, BSI PAS 68, IP68
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C,D/P,T/T,Western Union,D/A
Supply Ability :
1000pc/month
Delivery Time :
3-5 working days
Packaging Details :
Cartoons package
Dimension :
(Intercept width+190mm)L x 1974mmW x 300mmH(Depth)
Intercept Height :
1000mm
Intercept Width :
3M – 4M – 5M – 6M
Depth :
300mm
Top plate thickness :
25mm
Rising Time :
4-6s
Rated Power :
4KW for 3M & 4M, 5.5KW for 5M
Operating Temperature :
-40°C~+70°C (FOR LOW TEMPERATURESSEE THE HEATING RESISTANCE)
Impact Tested :
IWA & PAS, 7500KG / 80KMH, equal ATSM K12/M50
Impact Result :
ZERO Penetration
Description
Hydraulic Road Blockers | Effective Vehicle Access Control Solutions
K12 M50 PAS 68 Certified - 7500kg / 80kmh Impact Test Standard
Zero penetration anti-ram hydraulic road blocker with excellent crash-test results according to IWA 14-1 & PAS 68 standards. The road blocker test resulted in the vehicle being stopped within the aperture with zero penetration, and the blocker remained fully functional after crash testing.
Anti-Terrorist High Security Shallow Mount Road Blocker
The Shallow Mount K12 M50 Hydraulic Road Blocker SM501-1000 provides a high level of security against unauthorized vehicle access. Designed especially for entrance points that have a threat of vehicle attack or for locations with high security requirements.
Motorized platforms, powered by electro-hydraulic systems, are available in two distinct levels of mechanical strength and various lengths to meet diverse market needs. The ZASP ROAD BLOCKERS series offers a range of optional features, allowing each system to be customized for specific applications.
With a "low-profile" design, these road blockers minimize the depth required for underground installation chambers, reducing potential interference with existing public utilities such as cable conduits and drainage systems. Alternatively, they can be installed at surface level using a ramp configuration.
K12 M50 PAS 68 Impact Tested Hydraulic Road Blocker with Zero Penetration and Shallow Mount Design for High Security Vehicle Access Control
Available Features & Options
  • Emergency fast raise system
  • Emergency buttons with lock down
  • Accumulator systems for hydraulic operation in power failure conditions
  • Access and intercom systems
  • UPS backup for the electrical system
  • Interlocking systems for air-lock type protection on high-threat sites
  • Inductive loop systems
  • Traffic lights and back indication systems
  • Integral inset warning lights
  • A3 steel cover plate with anti-slip coating
  • E.F.O. emergency start-up circuit (approximately 1.5 seconds)
  • Equipment for manual operation
  • Heat-resistant construction
  • Traffic light with two lights (green-red)
  • Loop inductive detector
  • Inductive loop technology
For more information or to discuss your specific security requirements, please contact us at any time.
