Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Specifications
Brand Name :
ZASP
Model Number :
Suprema RB-SM501
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
3-5 Working days
Packaging Details :
Cartoons
Description

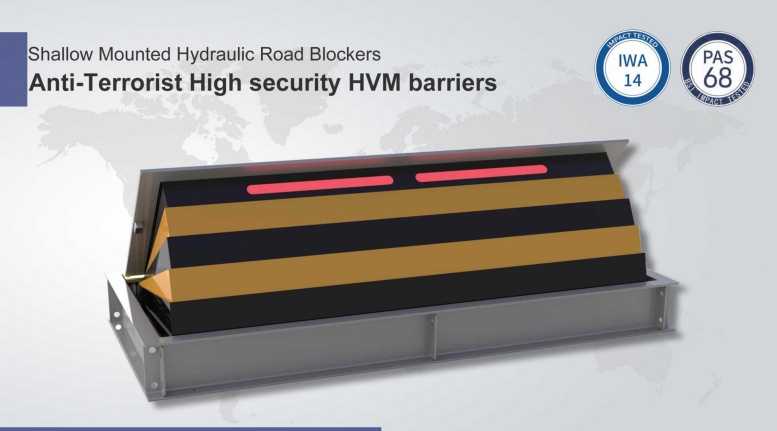

Shallow Mounted Rising Wedge Blocker | Efficient Vehicle Access Control
Suprema RB-SM501 High Security Road Blocker
The ZASP Anti-Terrorist High Security Shallow Mounted Road Blocker SM501 delivers superior protection against unauthorized vehicle access, specifically engineered for entrance points with potential vehicle attack threats or locations requiring maximum security.
This Hostile Vehicle Mitigation (HVM) solution provides comprehensive protection against Vehicle Borne Improvised Explosive Device (VBIED) attacks, ensuring site security and personnel safety.
The SM501 shallow mounted design minimizes basement compartment depth requirements and eliminates installation challenges in areas with existing public services. The system can also be installed at ground level using an appropriate slope configuration.
Featuring an electron-hydraulic drive unit with external hydraulic station and controller, the road blocker operates with a typical rise/descent time of 3-5 seconds. Emergency Fast Operation (EFO) capability reduces this to just 2 seconds when equipped with the optional hydraulic accumulator system.
Hydraulic Drive Shallow Mounted Road Blocker with 220 Tons Load Capacity and IP68 Protection
Technical Specifications
Dimension (Intercept width + 200mm) L * 2000mm W * 300mm H (±10mm)
Intercept Width 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm
Depth 1000mm
Top Plate Thickness 25mm
HPU Dimension Without: 1200mm * 800mm * 1700mm; With: 1260mm * 800mm * 1700mm
Movement Principle Hydraulic
Rising Time 3-5 seconds
Finish Yellow & Black, RAL color
Load Capacity Static Loading: 220 Tons, Passing Load: 200 Tons
E.F.O Circuit for Emergency E.F.O. with a rising time of 2 seconds
Protection Class IP68
LED Warning Light Yes
Manual Handling Yes
Control Voltage AC 380V ±10% / 50Hz / 60Hz
Power Consumption 5.5kW
Control System PLC control, linkage work
