Specifications
Brand Name :
BIGFANS
Model Number :
WF15 / WF20
Certification :
CE&ISO
Place of Origin :
Wuhan
Place Of Origin :
Wuhan,China
MOQ :
10 Sets
Price :
Can Be Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 Per Month
Delivery Time :
7-15 Working Days
Packaging Details :
Wooden Box
Size :
1.5m / 2m Diameters
Number of blade :
6 blades
Blade Materia :
Aviation Magnesium-Aluminum Alloy Material
Noise Level :
Less than 65dB
Motor Type :
PMSM (Permanent Magnet Synchronous Motor)
Protection :
IP55
Type of Mounting :
Wall-mounted
Voltage :
220V/380V (customizable)
Motor Power :
0.5kw
Weight :
110kg / 130kg
Description

Product Description:

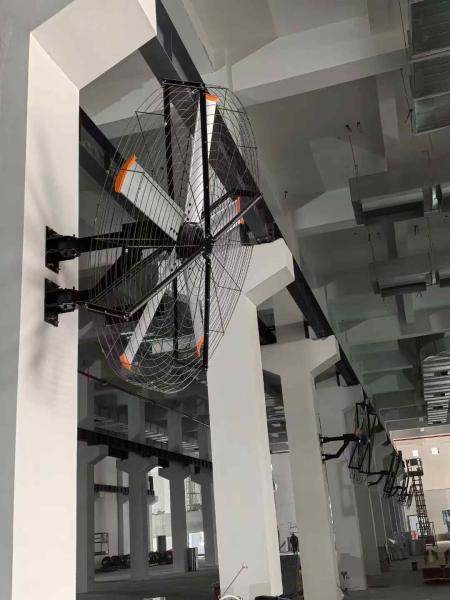

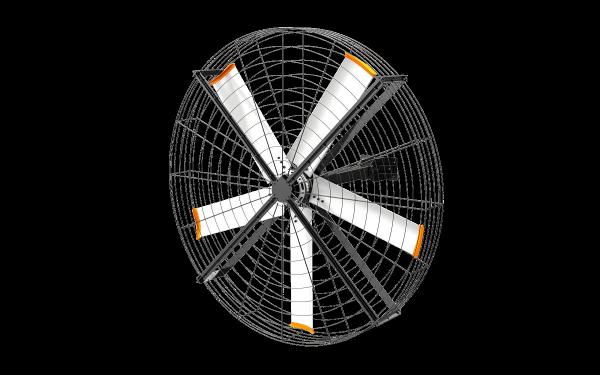

Our Fengzhi series is a high-volume fan with a diameter of up to 2 meters, which can be hoisted or wall-mounted according to the customer's site conditions. The wind direction can be adjusted according to the site conditions, and the effective distance of the fan is more than 25m, covering a large area.

Features:

    • PMSM Permanent Magnet Synchronous Motor
    • Wide Coverage
    • Flexible Installation
    • Maintenance Free

Technical Parameters:

Model
Air Volume
Maximum Speed
Weight
Motor Power
Full Load Current
WF20
2355m³/min
280RPM
130kg
0.5Kw
1.8Amps/220V

WF15

1588m³/min
300RPM
110kg
0.5Kw
1.8Amps/220V

Applications:

  1. Manufacturing & Workshops
  2. Warehousing & Logistics
  3. Agricultural Facilities
  4. Commercial Kitchens

  • 2m Industrial Outdoor Wall Mount Fans Industrial Hanging Fans 6 Blades

Packing and Shipping:

Wooden Box / or by your requirements.

2m Industrial Outdoor Wall Mount Fans Industrial Hanging Fans 6 Blades

BEACON Advantages:

Space-Optimized Design: Wall-mounted installation frees up floor space and allows directional airflow adjustment.

Heavy-Duty Construction: IP-rated housings and corrosion-resistant materials withstand harsh conditions (dust, moisture, chemicals).

Energy-Efficient Motors: Variable speed control and low-power consumption align with sustainability goals.

Customizable Options: Tailor blade size, airflow range, voltage, and control interfaces (remote, smart systems) to meet specific needs.

FAQ:

Q: Are you factory or trading company?
A: We are factory which established more than 12 years.

Q: Where does your fan use in?
A: Ths fan is widely used in fitness center, outdoor wedding venues, industrial factory etc.

Q: Can you provide customized logo?
A: Yes, clients’ own logo or branding words can be customized on the motor.

Q: What is the minimum order quantity for the HVLS Industrial Fan?

A: The minimum order quantity is 10 sets.


Q: What other services can you provide?
A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.
Accepted payment type: T/T, L/C;
