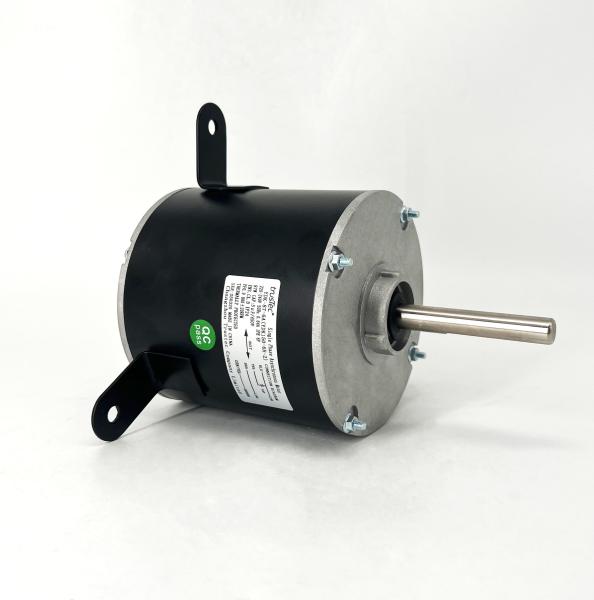

Outdoor Fan Motor 120mm Frame - 1/8HP 880RPM 220-2340V 50HZ
Outdoor Fan Motor 120mm Frame - 1/8HP 880RPM 220-2340V 50HZ
Outdoor Fan Motor 120mm Frame - 1/8HP 880RPM 220-2340V 50HZ
Outdoor Fan Motor 120mm Frame - 1/8HP 880RPM 220-2340V 50HZ
Outdoor Fan Motor 120mm Frame - 1/8HP 880RPM 220-2340V 50HZ
Outdoor Fan Motor 120mm Frame - 1/8HP 880RPM 220-2340V 50HZ
Specifications
Brand Name :
trusTec
Model Number :
YDK-87-6A-SGR
Certification :
CE
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Outdoor Fan Motor
Frame :
4.72"120mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
220-240V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
50Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
0.64A
Phase :
Single Phase
Output HP :
1/8HP
Shaft Flat :
One Flat
Rated Speed :
880±10RPM
Mounting Orientation :
All Angle
Capacitor :
5uF/450V
Insulation Class :
Class B
Shaft Diameter :
0.5" /12.7mm
Pole :
6P
PF :
0.9
Bearings :
Ball Bearing
Flat Length :
1.91±0.02" /48.5±0.5mm
Rotation :
Reversible
Lead Length :
59.06±0.79" /1500±20mm
Max. Ambient Temperature :
40℃/104℉
